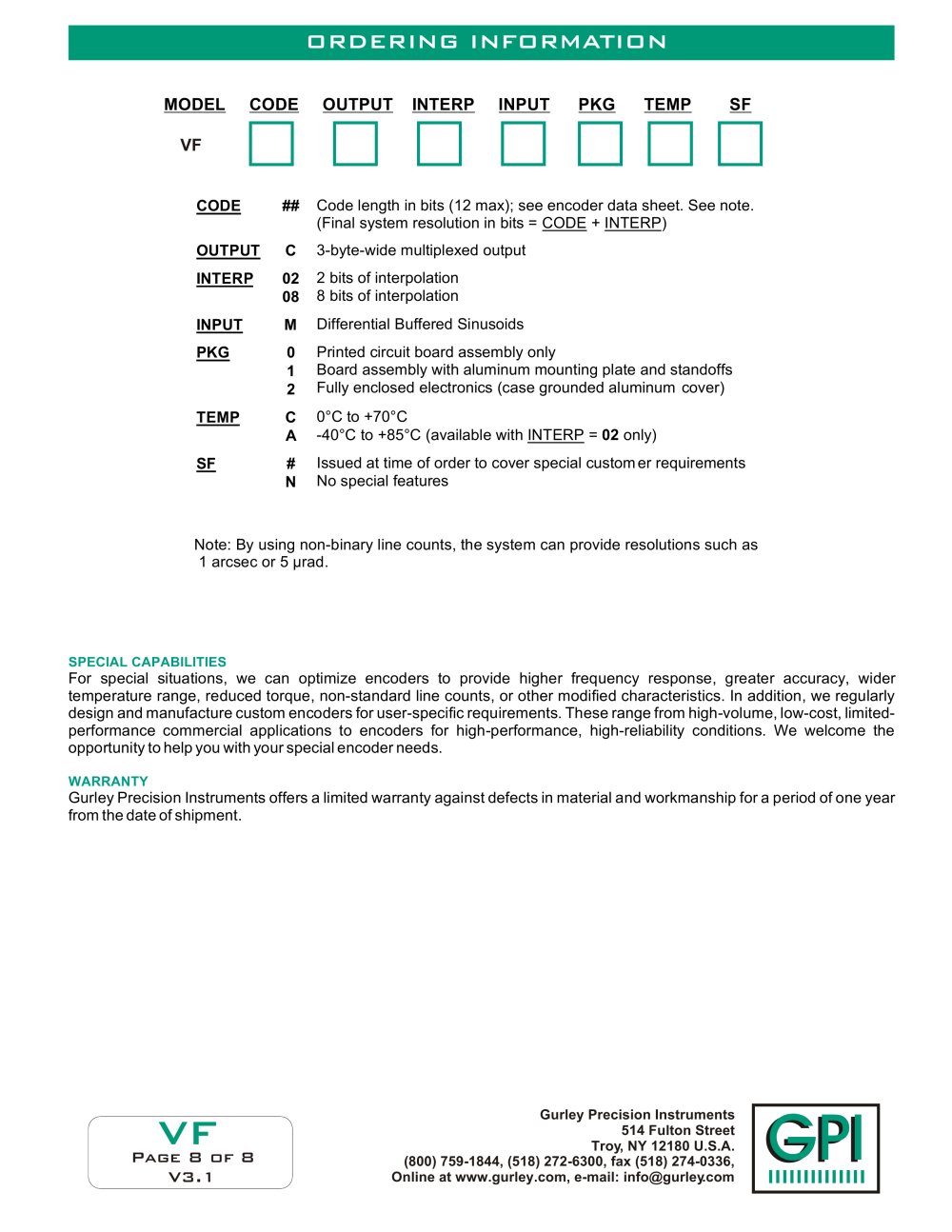

ORDERING INFORMATION

MODEL CODE OUTPUT INTERP INPUT PKG TEMP SF VF

CODE ## Code length in bits (12 max); see encoder data sheet. See note.(Final system resolution in bits = CODE + INTERP ) OUTPUT C 3-byte-wide multiplexed output INTERP 0208 2 bits of interpolation8 bits of interpolation INPUT M Differential Buffered Sinusoids Printed circuit board assembly onlyBoard assembly with aluminum mounting plate and standoffs Fully enclosed electronics (case grounded aluminum cover) PKG TEMP 01 2 CA 0°C to +70°C-40°C to +85°C (available with INTERP = 02 only) SF #N Issued at time of order to cover special customer requirementsNo special features

Note: By using non-binary line counts, the system can provide resolutions such as 1 arcsec or 5 µrad.

SPECIAL CAPABILITIESWARRANTY

For special situations, we can optimize industrial encoders to provide higher frequency response, greater accuracy, wider temperature range, reduced torque, non-standard line counts, or other modified characteristics. In addition, we regularly design and manufacture custom encoders for user-specific requirements. These range from high-volume, low-cost, limited- performance commercial applications to encoders for high-performance, high-reliability conditions. We welcome the opportunity to help you with your special encoder needs.Gurley Precision Instruments offers a limited warranty against defects in material and workmanship for a period of one year from the date of shipment.

Page 8 of 8V3.1

VF

Gurley Precision Instruments514 Fulton StreetTroy, NY 12180 U.S.A.(800) 759-1844, (518) 272-6300, fax (518) 274-0336, Online at www.gurley.com, e-mail: info@gurley.com
