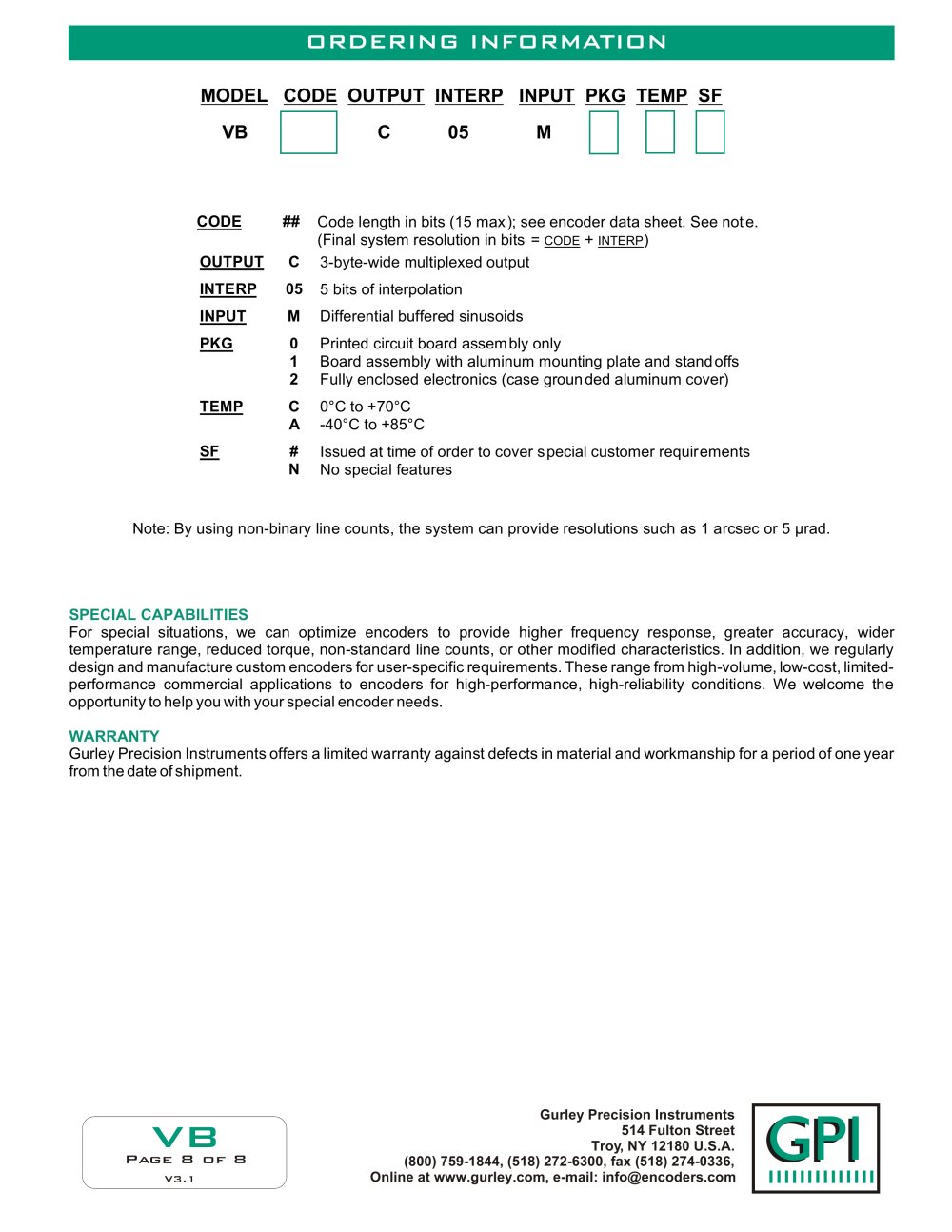

ORDERING INFORMATION MODEL CODE OUTPUT INTERP INPUT PKG TEMP SF VB C 05 M

CODE ## Code length in bits (15 max); see encoder data sheet. See note.(Final system resolution in bits =

CODE

+

INTERP

)

OUTPUT C 3-byte-wide multiplexed output INTERP 05 5 bits of interpolation INPUT M Printed circuit board assembly onlyBoard assembly with aluminum mounting plate and standoffs Fully enclosed electronics (case grounded aluminum cover) Differential buffered sinusoids TEMP PKG 01 2 CA 0°C to +70°C-40°C to +85°C SF #N Issued at time of order to cover special customer requirementsNo special features

Note: By using non-binary line counts, the system can provide resolutions such as 1 arcsec or 5 µrad. SPECIAL CAPABILITIESWARRANTY For special situations, we can optimize encoders to provide higher frequency response, greater accuracy, wider temperature range, reduced torque, non-standard line counts, or other modified characteristics. In addition, we regularly design and manufacture custom encoders for user-specific requirements. These range from high-volume, low-cost, limited- performance commercial applications to encoders for high-performance, high-reliability conditions. We welcome the opportunity to help you with your special encoder needs.Gurley Precision Instruments offers a limited warranty against defects in material and workmanship for a period of one year from the date of shipment. Page 8 of 8
