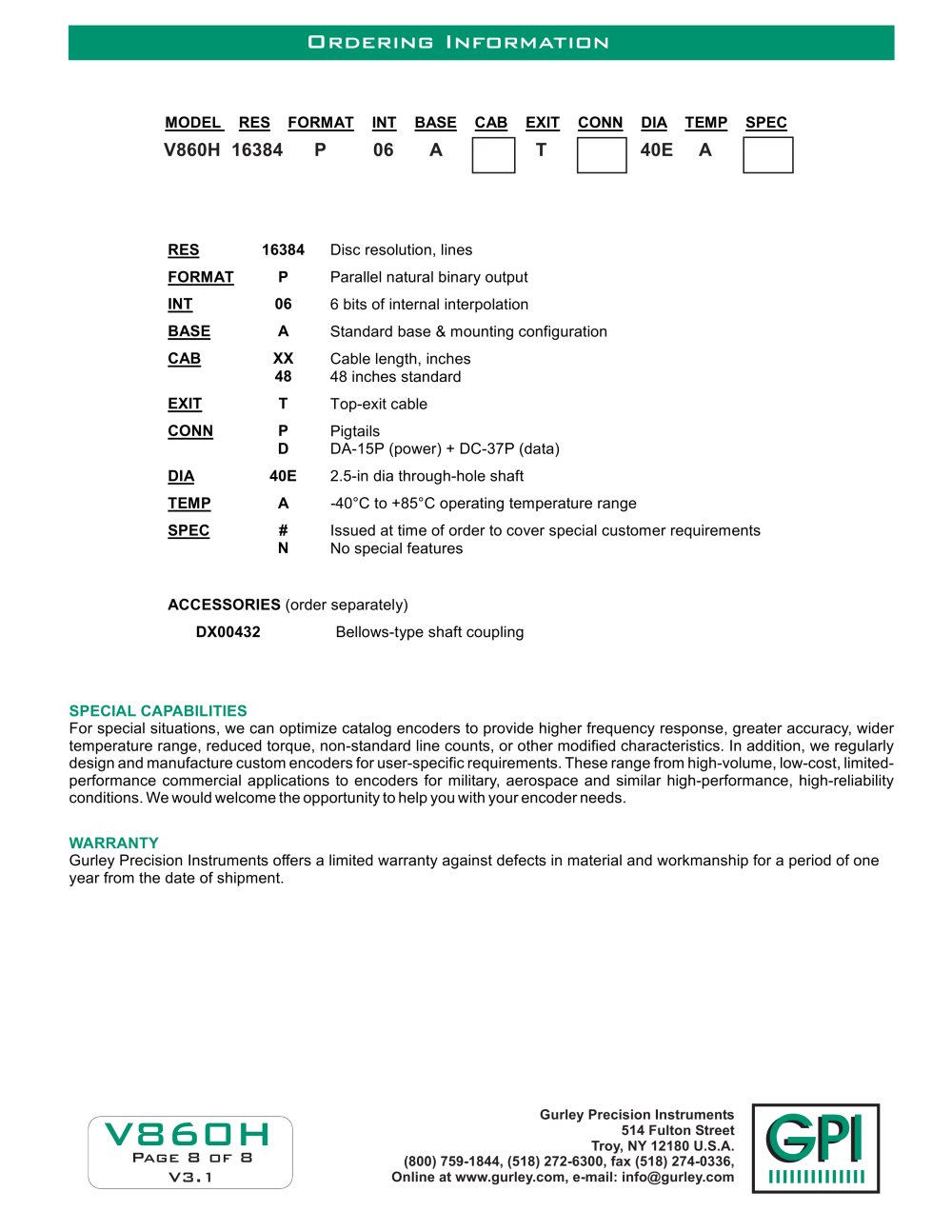

(Ordering Information

MODEL RES FORMAT INT BASE CAB EXIT CONN DIA TEMP SPEC

V860H 16384 P 06 A I

^| T 40E A J J


RES	16384	Disc resolution, lines
FORMAT	P	Parallel natural binary output
INT	06	6 bits of internal interpolation
BASE	A	Standard base & mounting configuration
CAB	XX	Cable length, inches
	48	48 inches standard
EXIT	T	Top-exit cable
CONN	P	Pigtails
	D	DA-15P (power) + DC-37P (data)
DIA	40E	2.5-in dia through-hole shaft
TEMP	A	-40°C to +85°C operating temperature range
SPEC	#	Issued at time of order to cover special customer requirements
	N	No special features

ACCESSORIES (order separately)

DX00432 Bellows-type shaft coupling

SPECIAL CAPABILITIES

For special situations, we can optimize catalog encoders to provide higher frequency response, greater accuracy, wider temperature range, reduced torque, non-standard line counts, or other modified characteristics. In addition, we regularly design and manufacture custom encoders for user-specific requirements. These range from high-volume, low-cost, limited-performance commercial applications to encoders for military, aerospace and similar high-performance, high-reliability conditions. We would welcome the opportunity to help you with your encoder needs.

WARRANTY

Gurley Precision Instruments offers a limited warranty against defects in material and workmanship for a period of one year from the date of shipment.

Gurley Precision Instruments 514 Fulton Street Troy, NY 12180 U.S.A. (800) 759-1844, (518) 272-6300, fax (518) 274-0336, Online at www.gurley.com, e-mail: info@gurley.com

V860H

PageBofB V3.1
