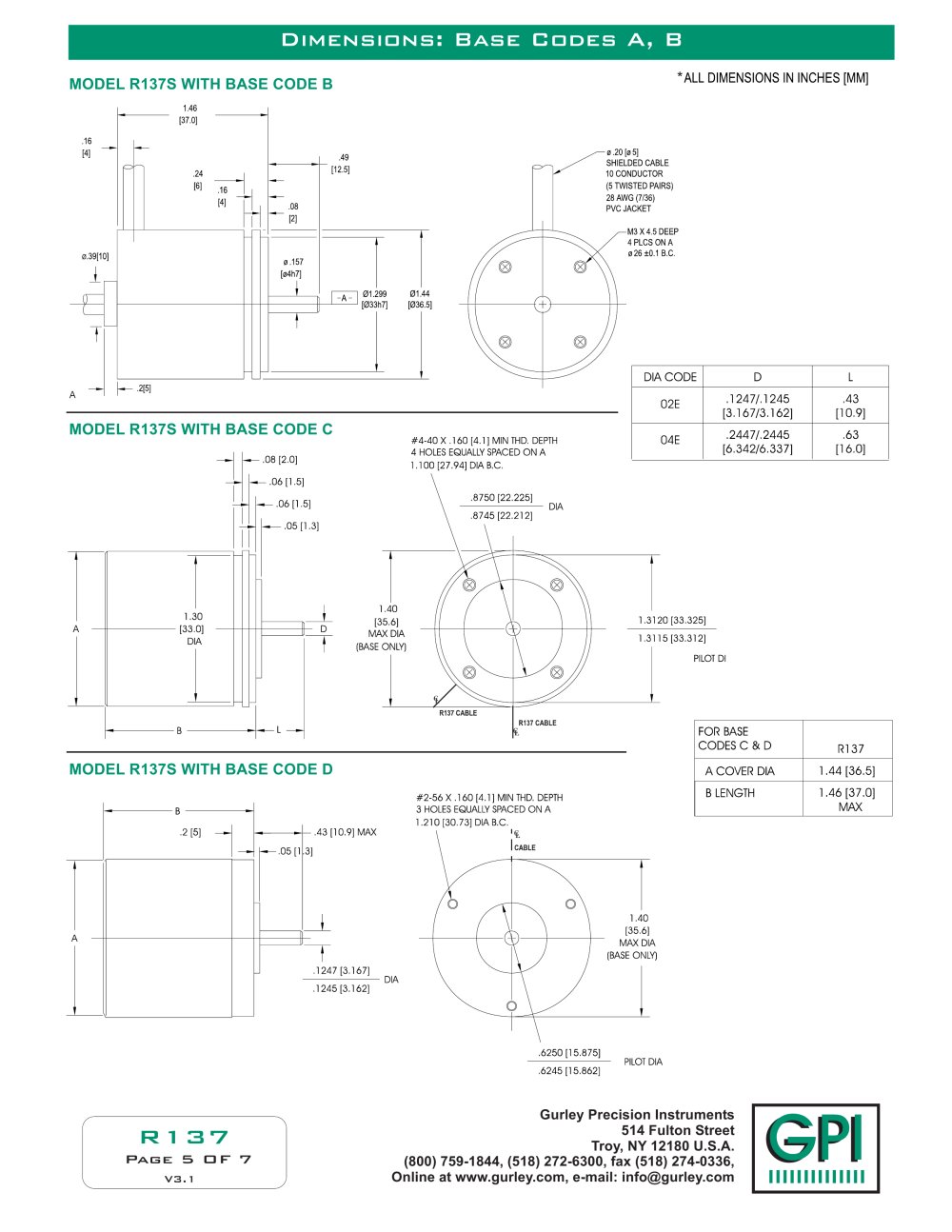

Dime_Esi_Tns: BAse Codes AN, B

*ALL DIMENSIONS IN INCHES [MM]

MODEL R137S WITH BASE CODE B

1.46 [37.0]

.16

[4]

0.20 [05] SHIELDED CABLE 10 CONDUCTOR (5 TWISTED PAIRS) 28AWG(7/36) PVC JACKET

.49 [12.5]

.24 _

PI .16 [4]

.08 [2]

M3X 4.5 DEEP 4 PLCS ON A 026 ±0.1 B.C.

0.39[1O]

0.157 [04h7]

Zjrr\ 01-299 01.44 -¹ [033h7] [036.5]


DIA CODE	D	L
02E	.1247/. 1245	.43
02E	[3.167/3.162]	[10.9]
04E	,2447/.2445	.63
04E	[6.342/6.337]	[16.0]

i— -2[5]

MODEL R137S WITH BASE CODE C

,08 [2.0] |— .06 [1.5] .06 [1.5] - .05 [1.3]

#4-40 X .160 [4.1] MIN THD, DEPTH 4 HOLES EQUALLY SPACED ON A 1.100 [27.94] DIA B.C.

1.40 [35.6] MAX DIA (BASE ONLY)

1.30 [33.0] DIA


	FOR BASE CODES C & D	R137
	A COVER DIA	1.44 [36.5]
	B LENGTH	1.46 [37.0] MAX

MODEL R137S WITH BASE CODE D

#2-56 X .160 [4.1] MIN THD. DEPTH 3 HOLES EQUALLY SPACED ON A 1,210 [30.73] DIA B.C.

.2 [5]

.43 [10.9] MAX

—-4 I——.05 [1

.1247 [3,167] .1245 [3.162]

DIA

.6250 [15.875] .6245 [15.862]

PILOT DIA

Gurley Precision Instruments 514 Fulton Street Troy, NY 12180 U.S.A. (800) 759-1844, (518) 272-6300, fax (518) 274-0336, Online at www.gurley.com, e-mail: info@gurley.com

Page

5 O F7

V3.1
