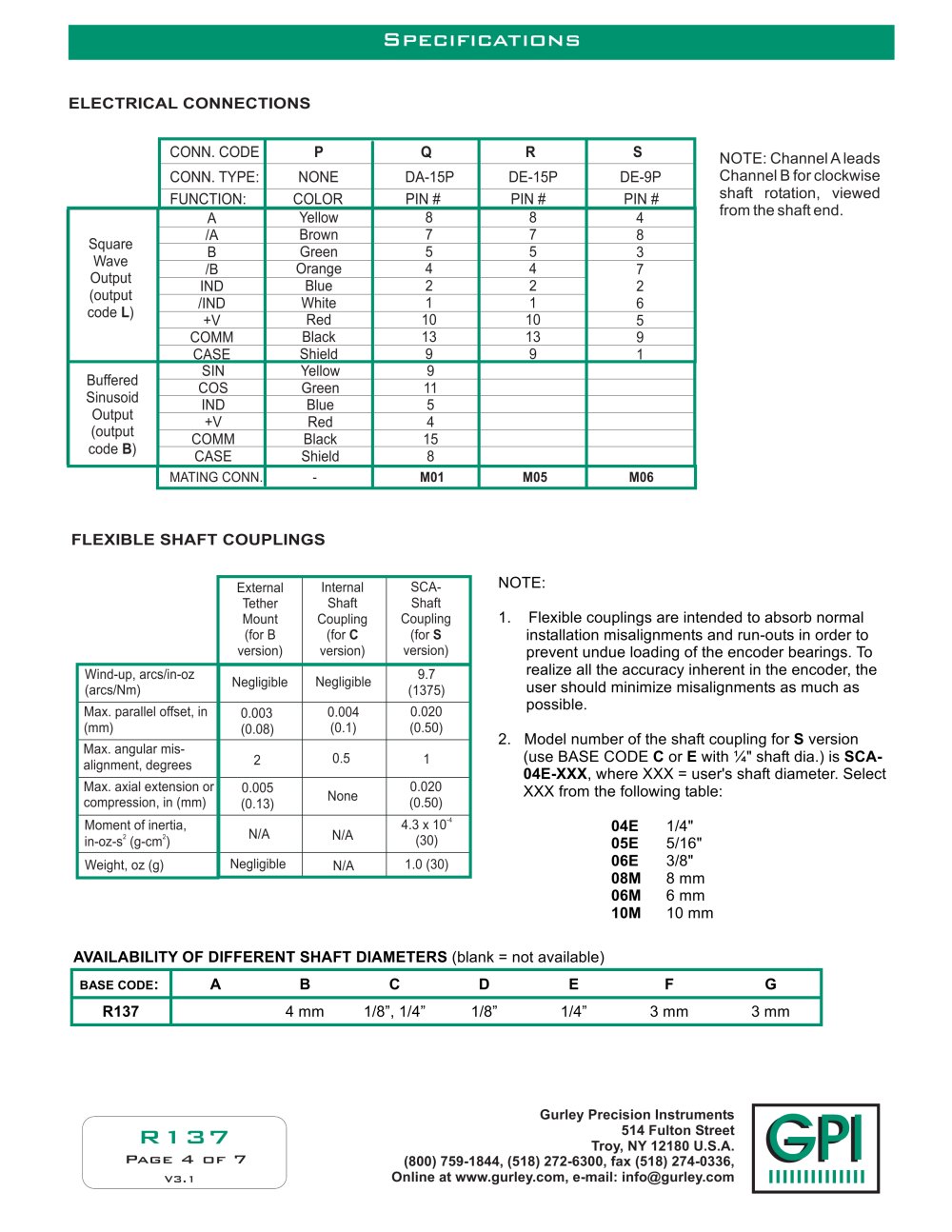

| | | Specification | | |
| | | |
| | | | | |
| | | |
| | | | | | | | | | | | | | | CONN. CODE | P | Q R | S | | | | | CONN. TYPE: | NONE | DA-15P | DE-15P | DE-9P | | | | | FUNCTION: | COLOR | PIN # | PIN # | PIN # | | | | | A | Yellow | 8 | 8 | 4 | | | | Square Wave Output (output code L) | /A | Brown | 7 | 7 | 8 | | | | B | Green | 5 | 5 | 3 | | | | /B | Orange | 4 | 4 | 7 | | | | IND | Blue | 2 | 2 | 2 | | | | /IND | White | 1 | 1 | 6 | | | | +V | Red | 10 | 10 | 5 | | | | | COMM | Black | 13 | 13 | 9 | | | | | CASE | Shield | 9 | 9 | 1 | | | | Buffered Sinusoid Output (output code B) | SIN | Yellow | 9 | 1 | | | | COS | Green | 11 | | | | | | IND | Blue | 5 | | | | | | +V | Red | 4 | | | | | | COMM | Black | 15 | | | | | | CASE | Shield | 8 | | | | | | | | | | | | | | MATING CONN. | - | M01 | M05 | M06 | | | | | | | | | | | | | |
| | | NOTE: Channel Aleads Channel B for clockwise shaft rotation, viewed from the shaft end. | | |
| | | |
| | | |
| | | | | |
| | | |
| | | | | | | | | | | | | External Tether Mount (forB version) | Internal Shaft Coupling (for C version) | SCA-Shaft Coupling (for S version) | | | | | | | | _ Wind-up, arcs/in-oz | Negligible | Negligible | 9.7 | | | | (arcs/Nm) | (1375) | | | | Max. parallel offset, in (mm) | 0.003 (0.08) | 0.004 (0.1) | 0.020 (0.50) | | | | Max. angular misalignment, degrees | 2 | 0.5 | 1 | | | | Max. axial extension or compression, in (mm) | 0.005 (0.13) | None | 0.020 (0.50) | | | | Moment of inertia, in-oz-s2 (g-cm2) | N/A | N/A | 4.3X10-4 (30) | | | | Weight, oz (g) | Negligible | N/A | 1.0 (30) | | | | | | | | | | | |
| | | NOTE: 1. Flexible couplings are intended to absorb normal installation misalignments and run-outs in order to prevent undue loading of the encoder bearings. To realize all the accuracy inherent in the encoder, the user should minimize misalignments as much as possible. 2. Model number of the shaft coupling for S version (use BASE CODE C or E with %" shaft dia.) is SCA-04E-XXX, where XXX = user's shaft diameter. Select XXX from the following table: | | |
| | | |
| | | 1/4" 5/16" 3/8" 8 mm 6 mm 10 mm | | |
| | | 04E 05E 06E 08M 06M 10M | | |
| | | |
| | | |
| | | AVAILABILITY OF DIFFERENT SHAFT DIAMETERS (blank = not available) | | |
| | | |
| | | base code:A | | B | | C 1/8", 1/4" | | D | | E | | F 3 mm | | G 3 mm | | |
| | | | |
| | | R137 | | | 1/8" | | 1/4" | | |
| | | 4 mm | | |
| | | |
| | | | |
| | | |
| | | |
| | | Gurley Precision Instruments 514 Fulton Street Troy, NY 12180 U.S.A. (800) 759-1844, (518) 272-6300, fax (518) 274-0336, Online at www.gurley.com, e-mail: info@gurley.com | | |
| | | Page4idf"7 | | |
| | | |
| | | V3.1 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
