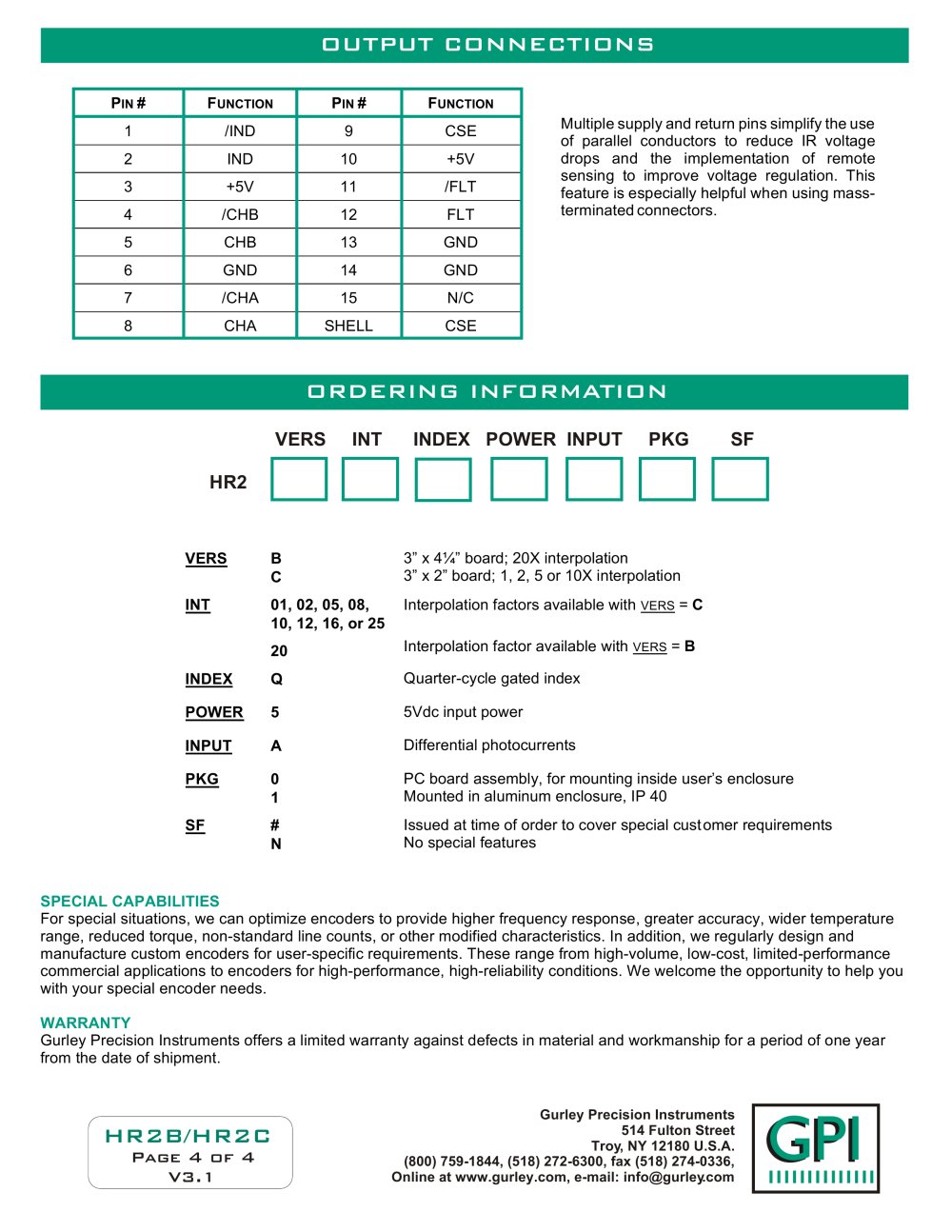

OUTPUT CONNECTIONS

P

IN

#F

UNCTION

P

IN

#F

UNCTION

1/IND9CSE

Multiple supply and return pins simplify the use of parallel conductors to reduce IR voltage drops and the implementation of remote sensing to improve voltage regulation. This feature is especially helpful when using mass- terminated connectors.

2IND10+5V 3+5V11/FLT 4/CHB12FLT 5CHB13GND 6GND14GND 7/CHA15N/C 8CHASHELLCSE

ORDERING INFORMATION

VERS INT INDEX POWER INPUT PKG SF HR2

VERS B C 3” x 4¼” board; 20X interpolation 3” x 2” board; 1, 2, 5 or 10X interpolation Interpolation factors available with 01, 02, 05, 08, 10, 12, 16, or 25 20
VERS = C INT Interpolation factor available with
VERS = B INDEX Q Quarter-cycle gated index POWER 5 5Vdc input power INPUT A Differential photocurrents

SPECIAL CAPABILITIESWARRANTY For special situations, we can optimize encoders to provide higher frequency response, greater accuracy, wider temperature range, reduced torque, non-standard line counts, or other modified characteristics. In addition, we regularly design and manufacture custom encoders for user-specific requirements. These range from high-volume, low-cost, limited-performance commercial applications to encoders for high-performance, high-reliability conditions. We welcome the opportunity to help you with your special encoder needs.Gurley Precision Instruments offers a limited warranty against defects in material and workmanship for a period of one year from the date of shipment.

PKG 0 1 PC board assembly, for mounting inside user’s enclosure Mounted in aluminum enclosure, IP 40 SF # N Issued at time of order to cover special customer requirements No special features
Gurley Precision Instruments514 Fulton StreetTroy, NY 12180 U.S.A.(800) 759-1844, (518) 272-6300, fax (518) 274-0336, Online at www.gurley.com, e-mail: info@gurley.com

HR2B/HR2C

Page 4 of 4V3.1
