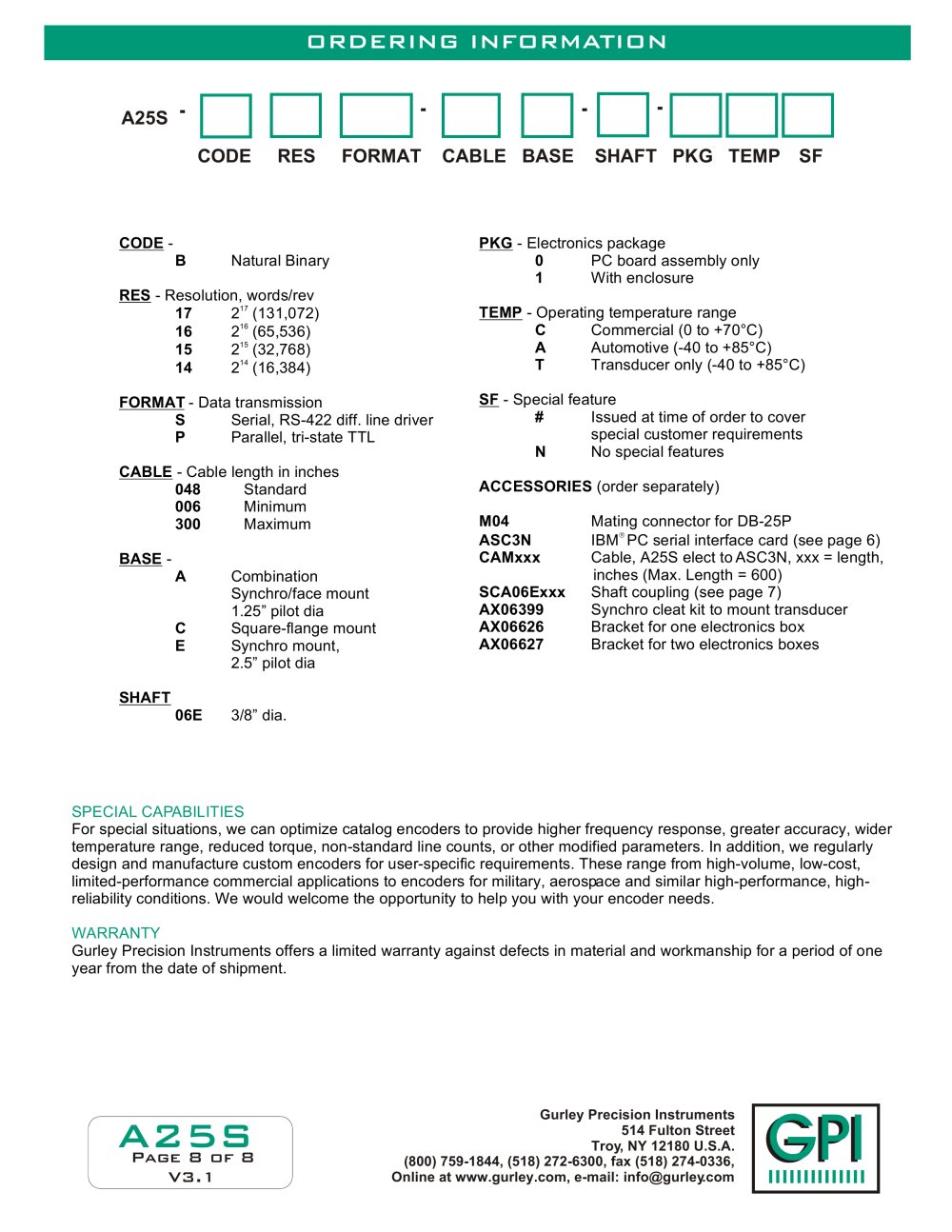

ORDERING INFORMATION

A25S

----

CODE RES FORMAT CABLE BASE SHAFT PKG TEMP SF

CODE - PKG - Electronics package B Natural Binary PC board assembly only 1 With enclosure RES - Resolution, words/rev 17 2 (131,072)
17 TEMP - Operating temperature range 16 2 (65,536)
16 C Commercial (0 to +70°C) 15 2 (32,768)
15 A Automotive (-40 to +85°C) 14 2 (16,384)
14 T Transducer only (-40 to +85°C) FORMAT - Data transmission SF - Special feature S Serial, RS-422 diff. line driver # Issued at time of order to cover special customer requirements P Parallel, tri-state TTL N No special features CABLE - Cable length in inches 048 Standard 006 ACCESSORIES (order separately) Minimum 300 Maximum M04 Mating connector for DB-25P ASC3N IBMPC serial interface card (see page 6) BASE - CAMxxx Cable, A25S elect to ASC3N, xxx = length, inches (Max. Length = 600) A CombinationSynchro/face mount 1.25” pilot dia C Square-flange mount SCA06Exxx Shaft coupling (see page 7) E Synchro mount,2.5” pilot dia AX06399 Synchro cleat kit to mount transducer AX06626 Bracket for one electronics box AX06627 Bracket for two electronics boxes SHAFT 06E 3/8” dia. SPECIAL CAPABILITIESWARRANTYFor special situations, we can optimize catalog encoders to provide higher frequency response, greater accuracy, wider temperature range, reduced torque, non-standard line counts, or other modified parameters. In addition, we regularly design and manufacture custom encoders for user-specific requirements. These range from high-volume, low-cost, limited-performance commercial applications to encoders for military, aerospace and similar high-performance, high- reliability conditions. We would welcome the opportunity to help you with your encoder needs.Gurley Precision Instruments offers a limited warranty against defects in material and workmanship for a period of one year from the date of shipment.

A25S

Gurley Precision Instruments514 Fulton StreetTroy, NY 12180 U.S.A.(800) 759-1844, (518) 272-6300, fax (518) 274-0336, Online at www.gurley.com, e-mail: info@gurley.com

Page 8 of 8V3.1
