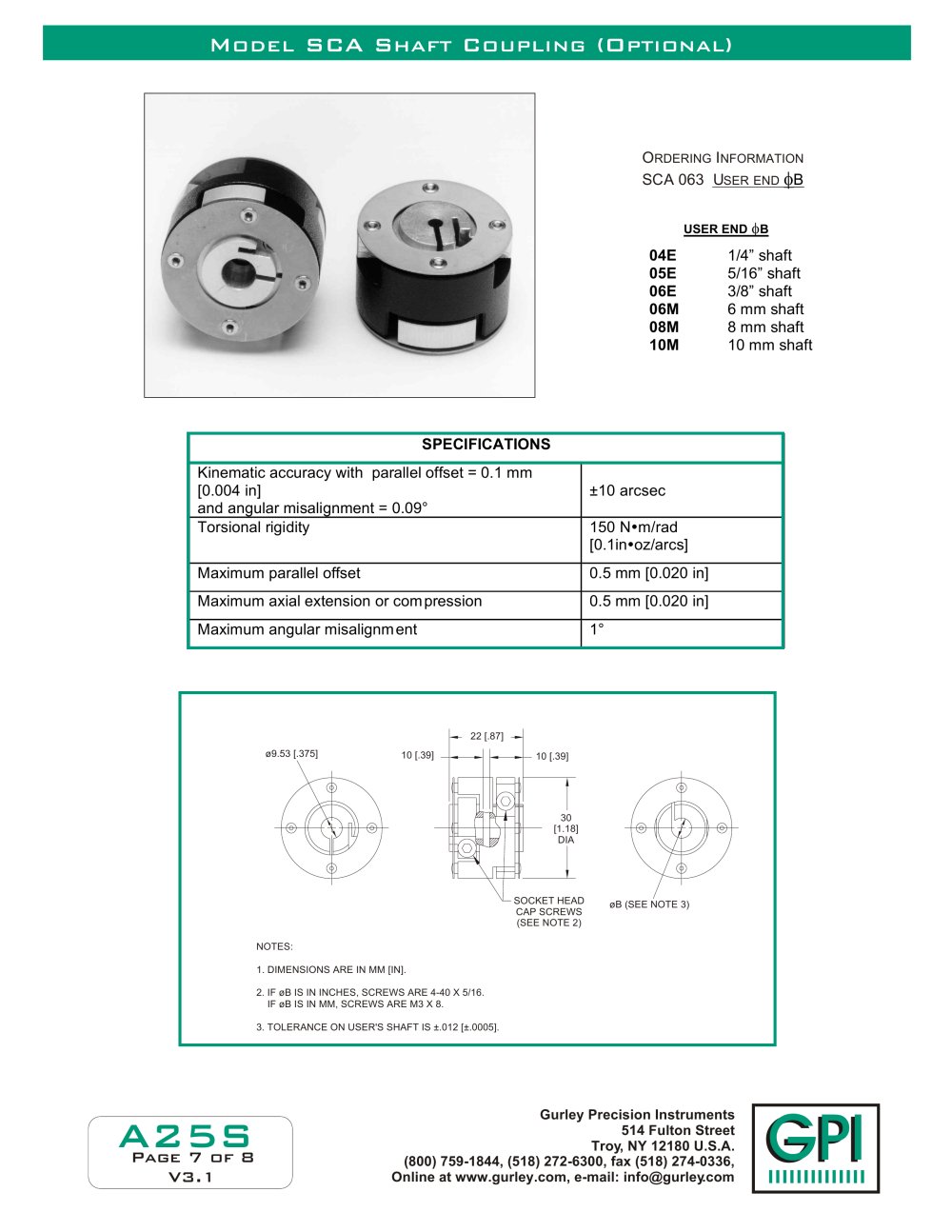

M

ODEL

SCA S

HAFT

C

OUPLING

(O

PTIONAL

)

O

RDERING

I

NFORMATION

SCA 063 U

SER END

B

USER END B 04E 1/4” shaft 05E 5/16” shaft 06E 3/8” shaft 06M 6 mm shaft 08M 8 mm shaft 10M 10 mm shaft
SPECIFICATIONS Kinematic accuracy with parallel offset = 0.1 mm[0.004 in] and angular misalignment = 0.09°±10 arcsec Torsional rigidity150 N m/rad[0.1in oz/arcs] Maximum parallel offset0.5 mm [0.020 in] Maximum axial extension or compression0.5 mm [0.020 in] Maximum angular misalignment1° 22 [.87] ø9.53 [.375] 10 [.39] 10 [.39] 30[1.18]DIA SOCKET HEADCAP SCREWS(SEE NOTE 2) øB (SEE NOTE 3) 1. DIMENSIONS ARE IN MM [IN]. 2. IF øB IS IN INCHES, SCREWS ARE 4-40 X 5/16.IF øB IS IN MM, SCREWS ARE M3 X 8.3. TOLERANCE ON USER'S SHAFT IS ±.012 [±.0005].NOTES:
