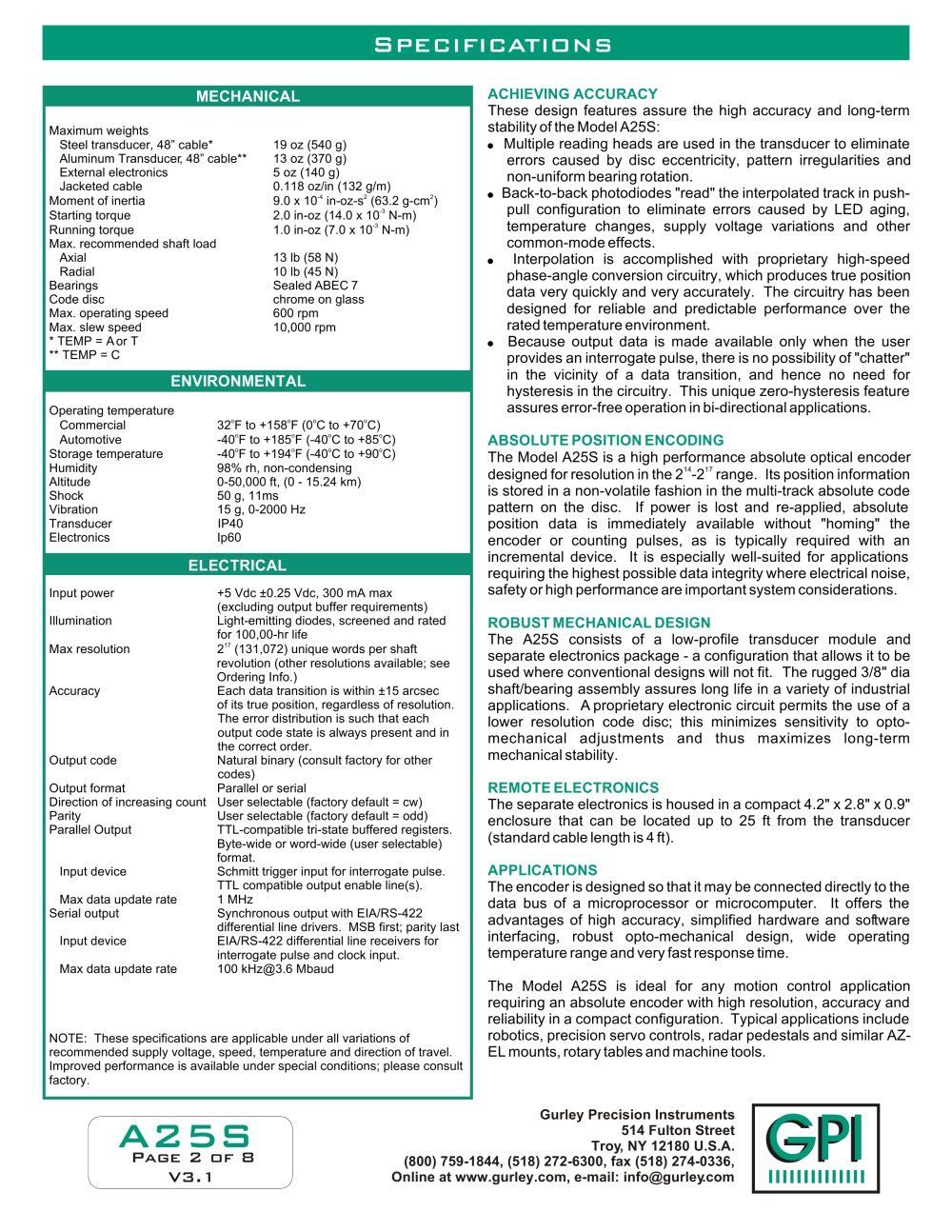

SPECIFICATIONS
ACHIEVING ACCURACY
These design features assure the high accuracy and long-term stability of the Model A25S:
• Multiple reading heads are used in the transducer to eliminate errors caused by disc eccentricity, pattern irregularities and non-uniform bearing rotation.
• Back-to-back photodiodes "read" the interpolated track in push-pull configuration to eliminate errors caused by LED aging, temperature changes, supply voltage variations and other common-mode effects.
• Interpolation is accomplished with proprietary high-speed phase-angle conversion circuitry, which produces true position data very quickly and very accurately. The circuitry has been designed for reliable and predictable performance over the rated temperature environment.
• Because output data is made available only when the user provides an interrogate pulse, there is no possibility of "chatter" in the vicinity of a data transition, and hence no need for hysteresis in the circuitry. This unique zero-hysteresis feature assures error-free operation in bi-directional applications.
ABSOLUTE POSITION ENCODING
The Model A25S is a high performance absolute optical encoder designed for resolution in the 214-217 range. Its position information is stored in a non-volatile fashion in the multi-track absolute code pattern on the disc. If power is lost and re-applied, absolute position data is immediately available without "homing" the encoder or counting pulses, as is typically required with an incremental device. It is especially well-suited for applications requiring the highest possible data integrity where electrical noise, safety or high performance are important system considerations.
ROBUST MECHANICAL DESIGN
The A25S consists of a low-profile transducer module and separate electronics package - a configuration that allows it to be used where conventional designs will not fit. The rugged 3/8" dia shaft/bearing assembly assures long life in a variety of industrial applications. A proprietary electronic circuit permits the use of a lower resolution code disc; this minimizes sensitivity to opto­mechanical adjustments and thus maximizes long-term mechanical stability.
REMOTE ELECTRONICS
The separate electronics is housed in a compact 4.2" x 2.8" x 0.9" enclosure that can be located up to 25 ft from the transducer (standard cable length is 4 ft).
MECHANICAL
Maximum weights
Steel transducer, 48" cable*
19 oz (540 g)
Aluminum Transducer 48" cable** 13 oz (370 g)
External electronics
5 oz (140 g)
Jacketed cable
0.118 oz/in (132 g/m)
Moment of inertia
9.0 x 10-4 in-oz-s2 (63.2 g-cm2)
Starting torque
2.0 in-oz (14.0 x 10-3 N-m)
Running torque
1.0 in-oz (7.0 x 10-3 N-m)
Max. recommended shaft load
Axial
13 lb (58 N)
Radial
10 lb (45 N)
Bearings
Sealed ABEC 7
Code disc
chrome on glass
Max. operating speed
600 rpm
Max. slew speed
10,000 rpm
* TEMP = A or T
** TEMP = C
ENVIRONMENTAL
Operating temperature
Commercial
32oF to +158oF (0oC to +70oC)
Automotive
-40oF to +185oF (-40oC to +85oC)
Storage temperature
-40oF to +194oF (-40oC to +90oC)
Humidity
98% rh, non-condensing
Altitude
0-50,000 ft, (0 - 15.24 km)
Shock
50 g, 11ms
Vibration
15 g, 0-2000 Hz
Transducer
IP40
Electronics
Ip60
ELECTRICAL
Input power
+5 Vdc ±0.25 Vdc, 300 mA max
(excluding output buffer requirements)
Illumination
Light-emitting diodes, screened and rated
for 100,00-hr life
Max resolution
217 (131,072) unique words per shaft
revolution (other resolutions available; see
Ordering Info.)
Accuracy
Each data transition is within ±15 arcsec
of its true position, regardless of resolution.
The error distribution is such that each
output code state is always present and in
the correct order.
Output code
Natural binary (consult factory for other
codes)
Output format
Parallel or serial
Direction of increasing count
User selectable (factory default = cw)
Parity
User selectable (factory default = odd)
Parallel Output
TTL-compatible tri-state buffered registers.
Byte-wide or word-wide (user selectable)
format.
Input device
Schmitt trigger input for interrogate pulse.
TTL compatible output enable line(s).
Max data update rate
1 MHz
Serial output
Synchronous output with EIA/RS-422
differential line drivers. MSB first; parity last
Input device
EIA/RS-422 differential line receivers for
interrogate pulse and clock input.
Max data update rate
100 kHz@3.6 Mbaud
Al
The encoder is designed so that it may be connected directly to the data bus of a microprocessor or microcomputer. It offers the advantages of high accuracy, simplified hardware and software interfacing, robust opto-mechanical design, wide operating temperature range and very fast response time.
The Model A25S is ideal for any motion control application requiring an absolute encoder with high resolution, accuracy and reliability in a compact configuration. Typical applications include robotics, precision servo controls, radar pedestals and similar AZ-EL mounts, rotary tables and machine tools.
NOTE: These specifications are applicable under all variations of recommended supply voltage, speed, temperature and direction of travel. Improved performance is available under special conditions; please consult factory.
Gurley Precision Instruments 514 Fulton Street Troy, NY 12180 U.S.A. (800) 759-1844, (518) 272-6300, fax (518) 274-0336, Online at www.gurley.com, e-mail: info@gurley.com
A25S
Page 2 of B V3.1
