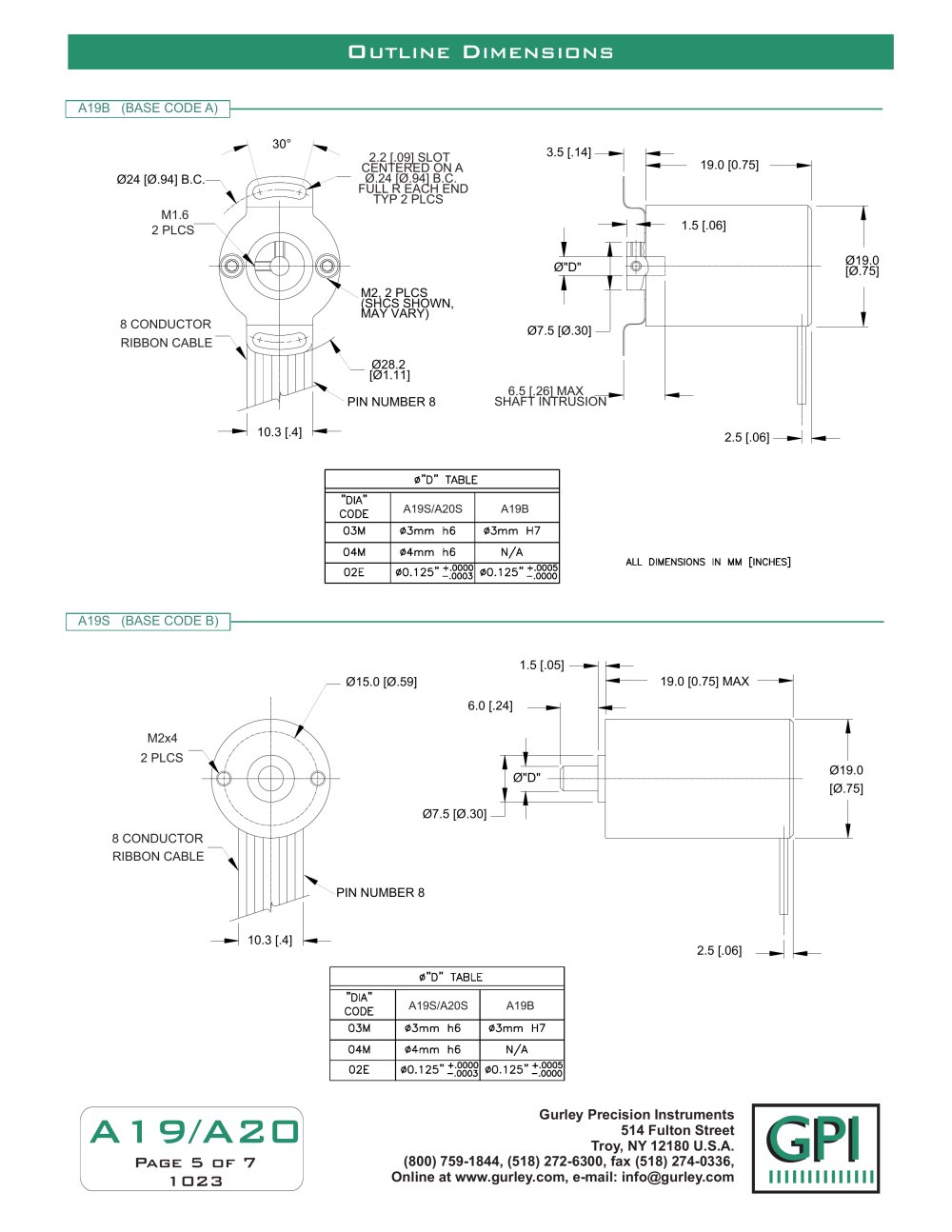

| | | ORDERING INFORMATION | | |
| | | |
| | | MODEL SHAFT RES OF OC OD VOLT TEMP BASE EXIT CAB CONN SHAFT SPEC | | |
| | | |
| | | □ □ □□□□ | | |
| | | |
| | | MODEL A19 SHAFT - Shaft type S Solid shaft B Blind Hollow Shaft RES - Resolution 12 12 bit resolution OF - Output Format S SSI OC - Output Code B Binary G Gray code OD - Output Device RS RS Differential (SP 490) VOLT - Voltage 05 5VDC Power Supply | | BASE | | |
| | | |
| | | A Blind-hollow shaft with external face mount B Face mount base D Blind hollow shaft with external tether side mount EXIT- Cable Exit S Side exit cable CAB - Cable length, inches 18 Standard 18" (0.5m) XX 02" - 99" CONN - Conector P Pigtail Y 8-pos ribbon cable Socket connector (Berg 71602-308 or equal) | | |
| | | |
| | | SHAFT | | |
| | | |
| | | 03M 04M 02E | | 3 mm 4mm 1/8 inch | | |
| | | |
| | | TEMP - Temperature Range S Standard (0 - 70°C) | | |
| | | |
| | | |
| | | SPEC - Special features N No Special Features | | |
| | | |
| | | SPECIAL CAPABILITIES For special situations, we can optimize catalog industrial encoders to provide higher frequency response, greater accuracy, wider temperature range, reduced torque, non-standard line counts, or other modified parameters. In addition, we regularly design and manufacture custom encoders for user-specific requirements. These range from high-volume, low-cost, limited-performance commercial applications to encoders for military, aerospace and similar high-performance, high-reliability conditions. We would welcome the opportunity to help you with your encoder needs. | | |
| | | |
| | | Gurley Precision Instruments offers a limited warranty against defects in material and workmanship for a period of one year from the date ofshipment. | | |
| | | |
| | | Gurley Precision Instruments 514 Fulton Street Troy, NY 12180 U.S.A. (800) 759-1844, (518) 272-6300, fax (518) 274-0336, Online at www.gurley.com, e-mail: info@gurley.com | | |
| | | A19 Page5of5 V04060 5 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
