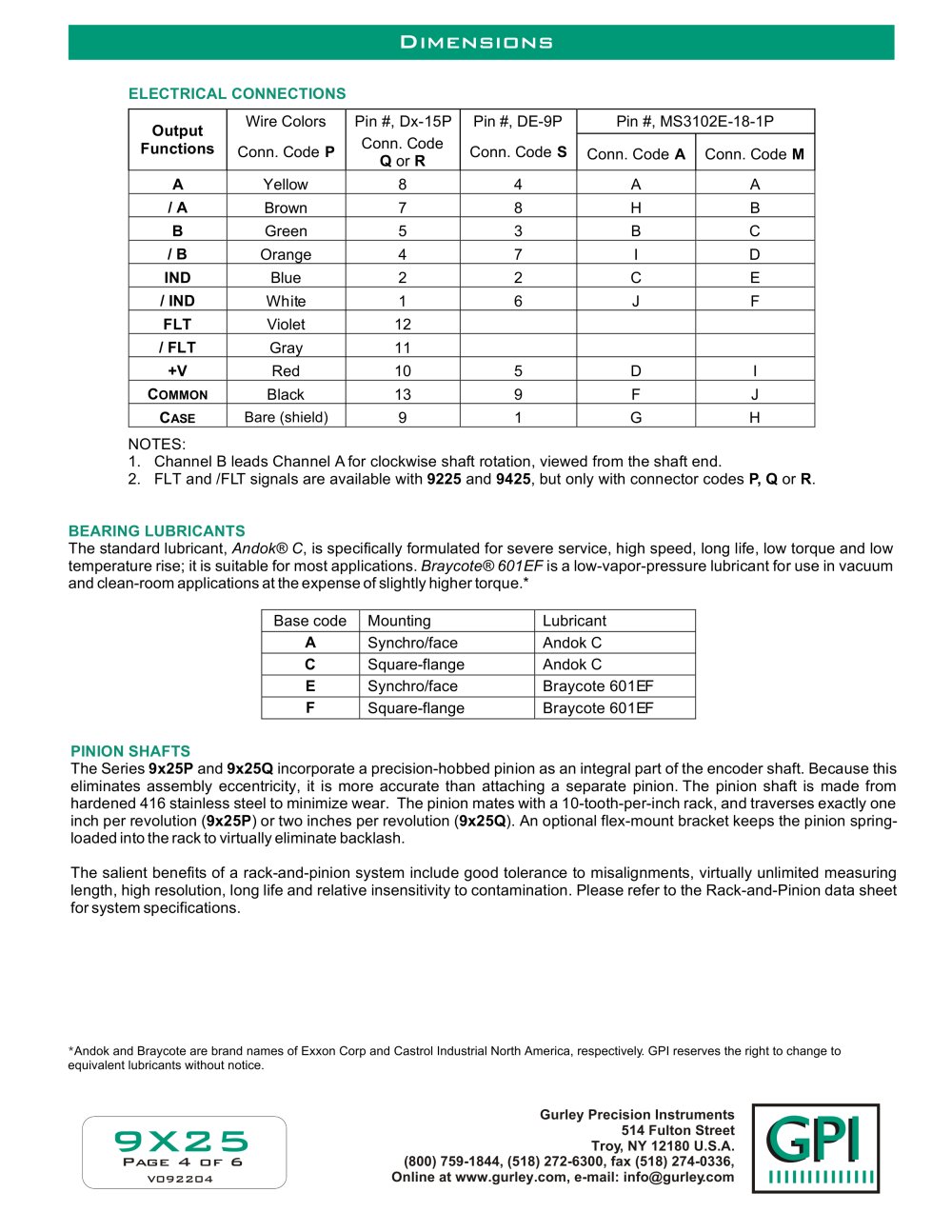

Dimensions OutputFunctions Wire ColorsPin #, Dx-15PPin #, DE-9PPin #, MS3102E-18-1P Conn. Code P Conn. Code Q or R Conn. Code S Conn. Code A Conn. Code M A Yellow84AA / A Brown78HB B Green53BC / B Orange47ID IND Blue22CE / IND White16JF FLT Violet12 / FLT Gray11 +V Red105DI C OMMON Black139FJ C ASE Bare (shield) 91GH NOTES:
1. Channel B leads Channel A for clockwise shaft rotation, viewed from the shaft end.2. FLT and /FLT signals are available with 9225 and 9425 , but only with connector codes P, Q or R .The standard lubricant, BEARING LUBRICANTS Andok® C , is specifically formulated for severe service, high speed, long life, low torque and low temperature rise; it is suitable for most applications. Braycote® 601EF is a low-vapor-pressure lubricant for use in vacuum and clean-room applications at the expense of slightly higher torque.* Base codeMountingLubricant A Synchro/faceAndok C C Square-flangeAndok C E Synchro/faceBraycote 601EF F Square-flangeBraycote 601EF PINION SHAFTS 9x25P ) or two inches per revolution ( 9x25Q ). An optional flex-mount bracket keeps the pinion spring-loaded into the rack to virtually eliminate backlash. The salient benefits of a rack and pinion system include good tolerance to misalignments, virtually unlimited measuring length, high resolution, long life and relative insensitivity to contamination. Please refer to the Rack-and-Pinion data sheet for system specifications. The Series 9x25P and 9x25Q incorporate a precision-hobbed pinion as an integral part of the encoder shaft. Because this eliminates assembly eccentricity, it is more accurate than attaching a separate pinion. The pinion shaft is made from hardened 416 stainless steel to minimize wear. The pinion mates with a 10-tooth-per-inch rack, and traverses exactly one inch per revolution ( * Andok and Braycote are brand names of Exxon Corp and Castrol Industrial North America, respectively. GPI reserves the right to change to equivalent lubricants without notice. Gurley Precision Instruments514 Fulton StreetTroy, NY 12180 U.S.A.(800) 759-1844, (518) 272-6300, fax (518) 274-0336, Online at www.gurley.com, e-mail: info@gurley.com 9X25 Page 4 of 6 V092204 GPIGPI IIIIIIIIIIIIII
|
