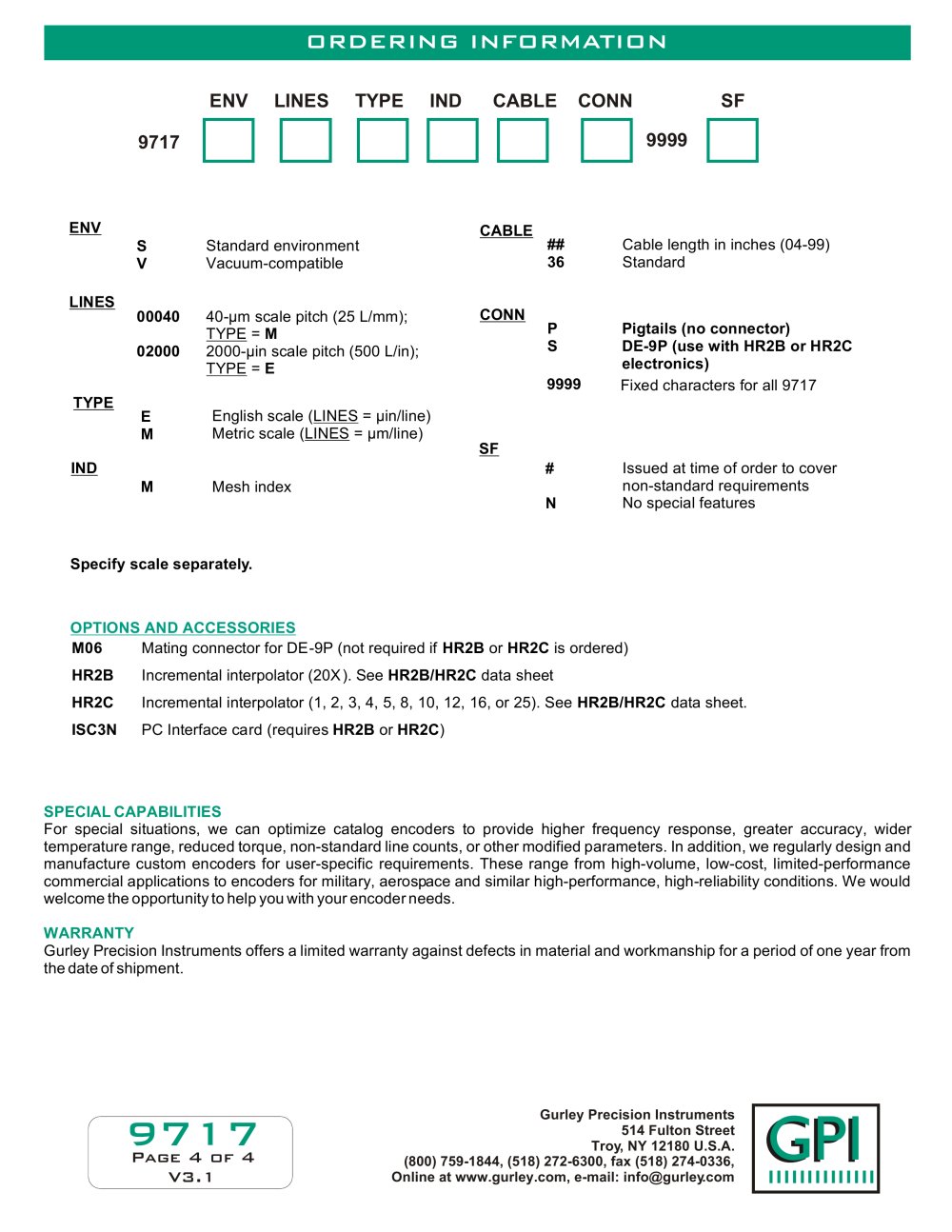

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | ORDERING INFORMATION | | | | | | | | | | ENV LINES TYPE IND CABLE CONN SF 9717 9999 | | | | | | | | | | ENV | | | | | | CABLE | | | | | | | | | | | | | | ## Cable length in inches (04-99) 36 Standard | | | | | | S Standard environment V Vacuum-compatible | | | | | | | | | | | | | | LINES | | | | | | | | | | CONN | | | | | | 00040 40-um scale pitch (25 L/mm); TYPE = M 02000 2000-uin scale pitch (500 L/in); TYPE = E | | | | | | | | | | P Pigtails (no connector) S DE-9P (use with HR2B or HR2C electronics) 9999 Fixed characters for all 9717 | | | | | | | | | | | | | | TYPE | | | | | | | | | | English scale (LINES = uin/line) Metric scale (LINES = urn/line) | | | | | | E M | | | | | | | | | | | | | | SF | | | | | | | | | | IND | | # Issued at time of order to cover non-standard requirements N No special features | | | | | | | | | | M | | Mesh index | | | | | | | | | | | | | | | | | | Specify scale separately. | | | | | | | | | | OPTIONS AND ACCESSORIES M06 Mating connector for DE-9P (not required if HR2B or HR2C is ordered) HR2B Incremental interpolator (20X). See HR2B/HR2C data sheet HR2C Incremental interpolator (1, 2, 3, 4, 5, 8, 10, 12, 16, or 25). See HR2B/HR2C data sheet. ISC3N PC Interface card (requires HR2B or HR2C) | | | | | | | | | | SPECIAL CAPABILITIES For special situations, we can optimize catalog industrial encoders to provide higher frequency response, greater accuracy, wider temperature range, reduced torque, non-standard line counts, or other modified parameters. In addition, we regularly design and manufacture custom encoders for user-specific requirements. These range from high-volume, low-cost, limited-performance commercial applications to encoders for military, aerospace and similar high-performance, high-reliability conditions. We would welcome the opportunity to help you with your encoder needs. WARRANTY Gurley Precision Instruments offers a limited warranty against defects in material and workmanship for a period of one year from the date of shipment. | | | | | | | | | | Gurley Precision Instruments 514 Fulton Street Troy, NY 12180 U.S.A. (800) 759-1844, (518) 272-6300, fax (518) 274-0336, Online at www.gurley.com, e-mail: info@gurley.com | | | | | | Page 4 of 4 V3.1 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
