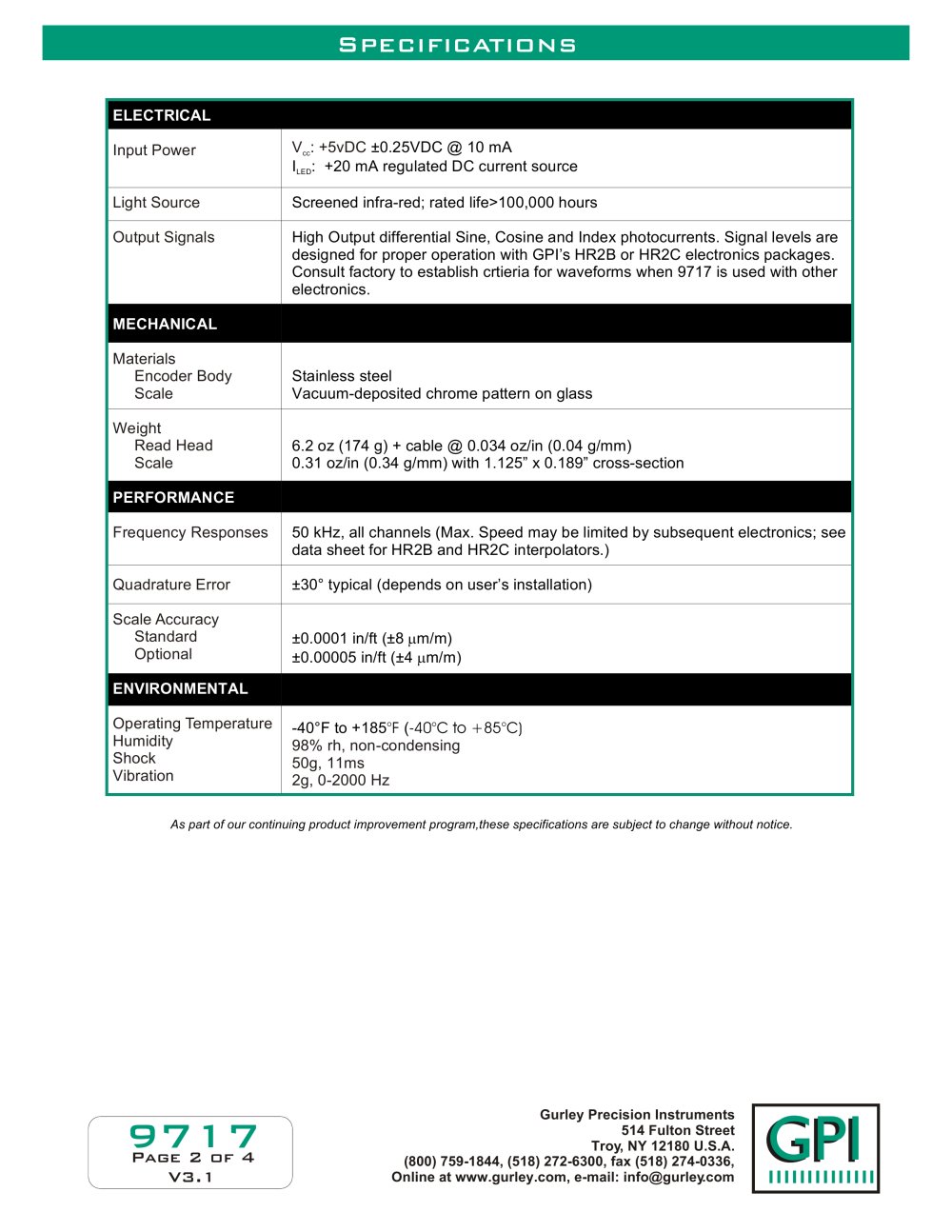

| | ELECTRICAL | |
| | Input Power | Vcc: +5vDC ±0.25VDC @ 10 mA I led' +20 mA regulated DC current source | |
| | Light Source | Screened infra-red; rated life>100,000 hours | |
| | Output Signals | High Output differential Sine, Cosine and Index photocurrents. Signal levels are designed for proper operation with GPI's HR2B or HR2C electronics packages. Consult factory to establish crtieria for waveforms when 9717 is used with other electronics. | |
| | MECHANICAL | | |
| | Materials Encoder Body Scale | Stainless steel Vacuum-deposited chrome pattern on glass | |
| | Weight Read Head Scale | 6.2 oz (174 g) + cable @ 0.034 oz/in (0.04 g/mm) 0.31 oz/in (0.34 g/mm) with 1.125" x 0.189" cross-section | |
| | PERFORMANCE | | |
| | Frequency Responses | 50 kHz, all channels (Max. Speed may be limited by subsequent electronics; see data sheet for HR2B and HR2C interpolators.) | |
| | Quadrature Error | ±30° typical (depends on user's installation) | |
| | Scale Accuracy Standard Optional | ±0.0001 in/ft (±8 |im/m) ±0.00005 in/ft (±4 |im/m) | |
| | ENVIRONMENTAL | | |
| | Operating Temperature Humidity Shock Vibration | -40°F to +185°F (-40°C to +85°C) 98% rh, non-condensing 50g, 11ms 2g, 0-2000 Hz | |
| | | | |
