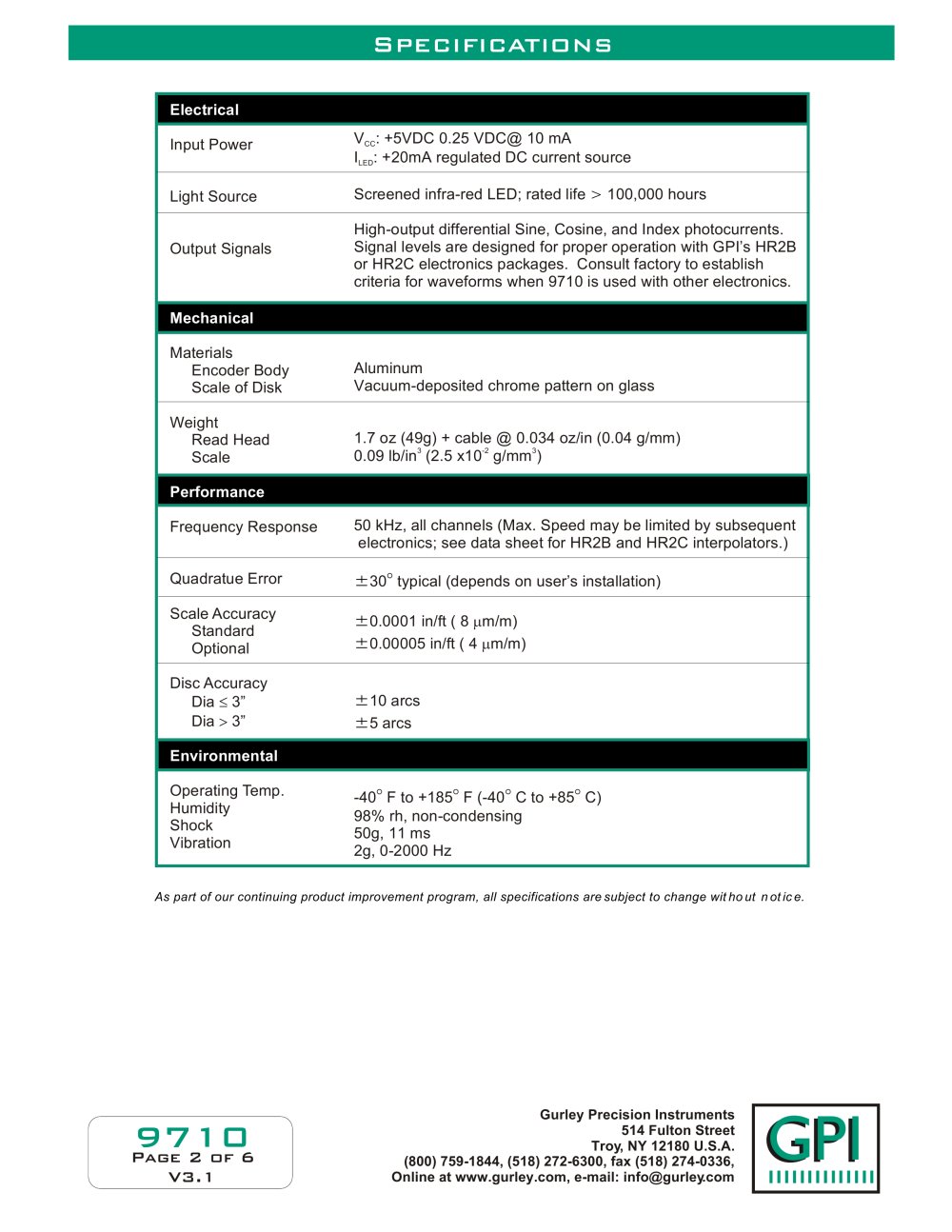

| | | SPECIFICATIONS | | |
| | | |
| | | | | | | | | | Electrical | | | | Input Power | VCC: +5VDC 0.25 VDC@ 10 mA ILED: +20mA regulated DC current source | | | | Light Source | Screened infra-red LED; rated life > 100,000 hours | | | | | | | | | |
| | | |
| | | High-output differential Sine, Cosine, and Index photocurrents. Output Signals Signal levels are designed for proper operation with GPI's HR2B or HR2C electronics packages. Consult factory to establish criteria for waveforms when 9710 is used with other electronics. | | |
| | | |
| | | Mechanical | | |
| | | |
| | | Materials Encoder Body Aluminum Scale of Disk Vacuum-deposited chrome pattern on glass | | |
| | | |
| | | Weight Read Head 1.7 oz (49g) + cable @ 0.034 oz/in (0.04 g/mm) Scale 0.09 lb/in3 (2.5 x102 g/mm3) | | |
| | | |
| | | | | | | | | | Performance | | | | Frequency Response | 50 kHz, all channels (Max. Speed may be limited by subsequent electronics; see data sheet for HR2B and HR2C interpolators.) | | | | Quadratue Error | ±30° typical (depends on user's installation) | | | | Scale Accuracy Standard Optional | ±0.0001 in/ft ( 8 |im/m) ±0.00005 in/ft ( 4 |im/m) | | | | Disc Accuracy Dia < 3" Dia > 3" | ±10 arcs ±5 arcs | | | | Environmental | | | | Operating Temp. Humidity Shock Vibration | -40° F to +185° F (-40° C to +85° C) 98% rh, non-condensing 50g, 11 ms 2g, 0-2000 Hz | | | | | | | | | |
| | | |
| | | As part of our continuing product improvement program, all specifications are subject to change without notice. | | |
| | | |
| | | Gurley Precision Instruments 514 Fulton Street Troy, NY 12180 U.S.A. (800) 759-1844, (518) 272-6300, fax (518) 274-0336, Online at www.gurley.com, e-mail: info@gurley.com | | |
| | | 9 7 10 Page 2 of 6 V3.1 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | |
