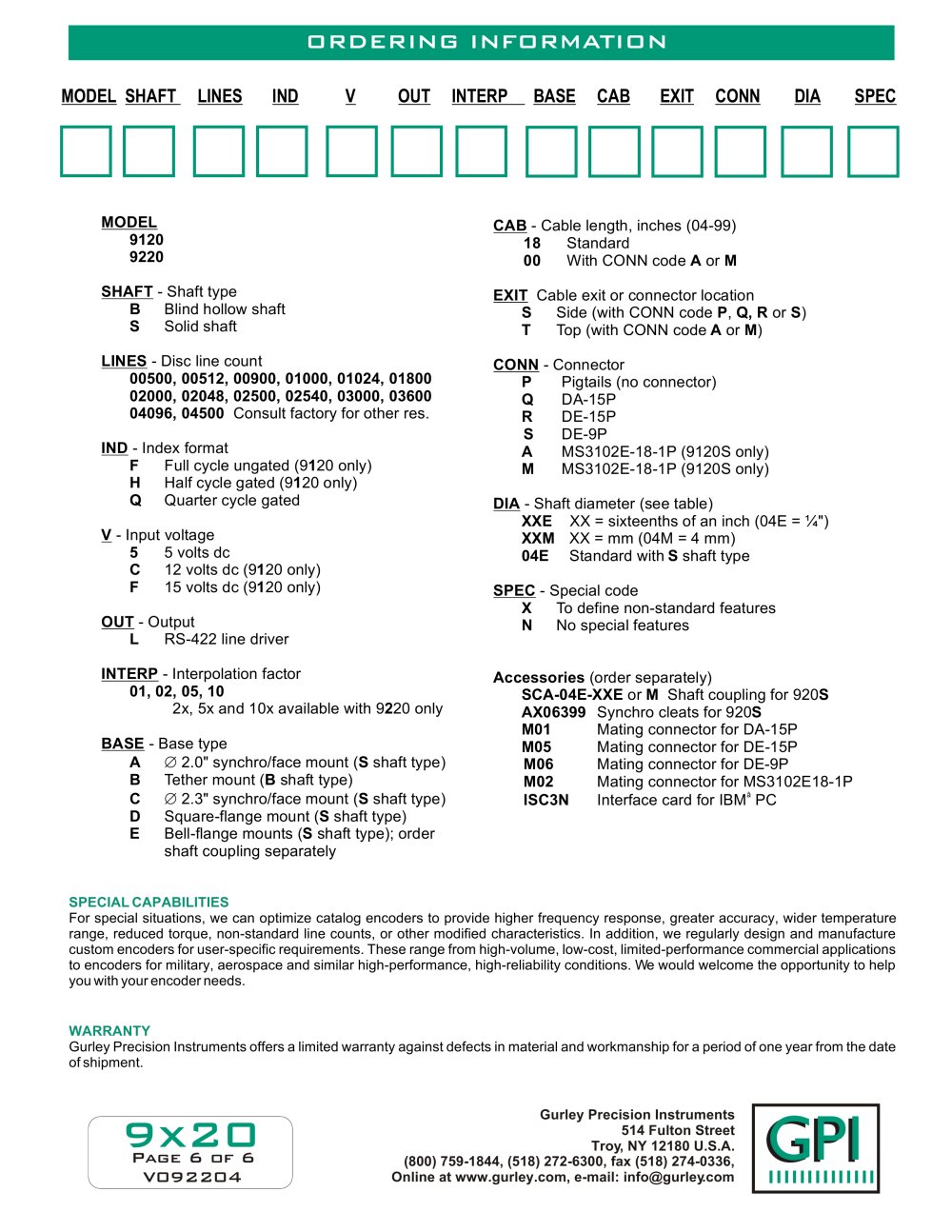

ORDERING INFORMATION

MODEL SHAFT LINES IND V OUT INTERP BASE CAB EXIT CONN DIA SPEC

MODEL CAB - Cable length, inches (04-99) 9120 9220SHAFT 18 Standard - Shaft type 00 With CONN code A or MEXIT B Blind hollow shaft S Solid shaft Cable exit or connector location S Side (with CONN code P , Q, R or S ) LINES - Disc line count T Top (with CONN code A or M ) 00500, 00512, 00900, 01000, 01024, 0180002000, 02048, 02500, 02540, 03000, 03600 04096, 04500 Consult factory for other res. CONN - Connector IND - Index format P Pigtails (no connector) F Full cycle ungated (9 1 20 only) Q DA-15P H Half cycle gated (9 1 20 only) R DE-15P Q Quarter cycle gated S DE-9P A MS3102E-18-1P (9120S only) V - Input voltage M MS3102E-18-1P (9120S only) 5 5 volts dc C 12 volts dc (9 1 20 only) DIA - Shaft diameter (see table) F 15 volts dc (9 1 20 only) XXE XX = sixteenths of an inch (04E = ¼") XXM XX = mm (04M = 4 mm) OUT - Output 04E Standard with S shaft type L RS-422 line driver SPEC - Special code INTERP - Interpolation factor X To define non-standard features 01, 02, 05, 10 2x, 5x and 10x available with 9 N No special features 2 20 only BASE - Base type Accessories (order separately) A 2.0" synchro/face mount ( S shaft type) SCA-04E-XXE or M Shaft coupling for 920 SAX06399 B Tether mount ( B shaft type) Synchro cleats for 920 SM01 C 2.3" synchro/face mount ( S shaft type) Mating connector for DA-15P D Square-flange mount ( S shaft type) M05 Mating connector for DE-15P E Bell-flange mounts ( S shaft type); ordershaft coupling separately M06 Mating connector for DE-9P M02 Mating connector for MS3102E18-1P ISC3N Interface card for IBM PC
â SPECIAL CAPABILITIESWARRANTY For special situations, we can optimize catalog industrial encoders to provide higher frequency response, greater accuracy, wider temperature range, reduced torque, non-standard line counts, or other modified characteristics. In addition, we regularly design and manufacture custom encoders for user-specific requirements. These range from high-volume, low-cost, limited-performance commercial applications to encoders for military, aerospace and similar high-performance, high-reliability conditions. We would welcome the opportunity to help you with your encoder needs.Gurley Precision Instruments offers a limited warranty against defects in material and workmanship for a period of one year from the date of shipment.

9x20

Gurley Precision Instruments514 Fulton StreetTroy, NY 12180 U.S.A.(800) 759-1844, (518) 272-6300, fax (518) 274-0336, Online at www.gurley.com, e-mail: info@gurley.com

Page 6 of 6V092204
