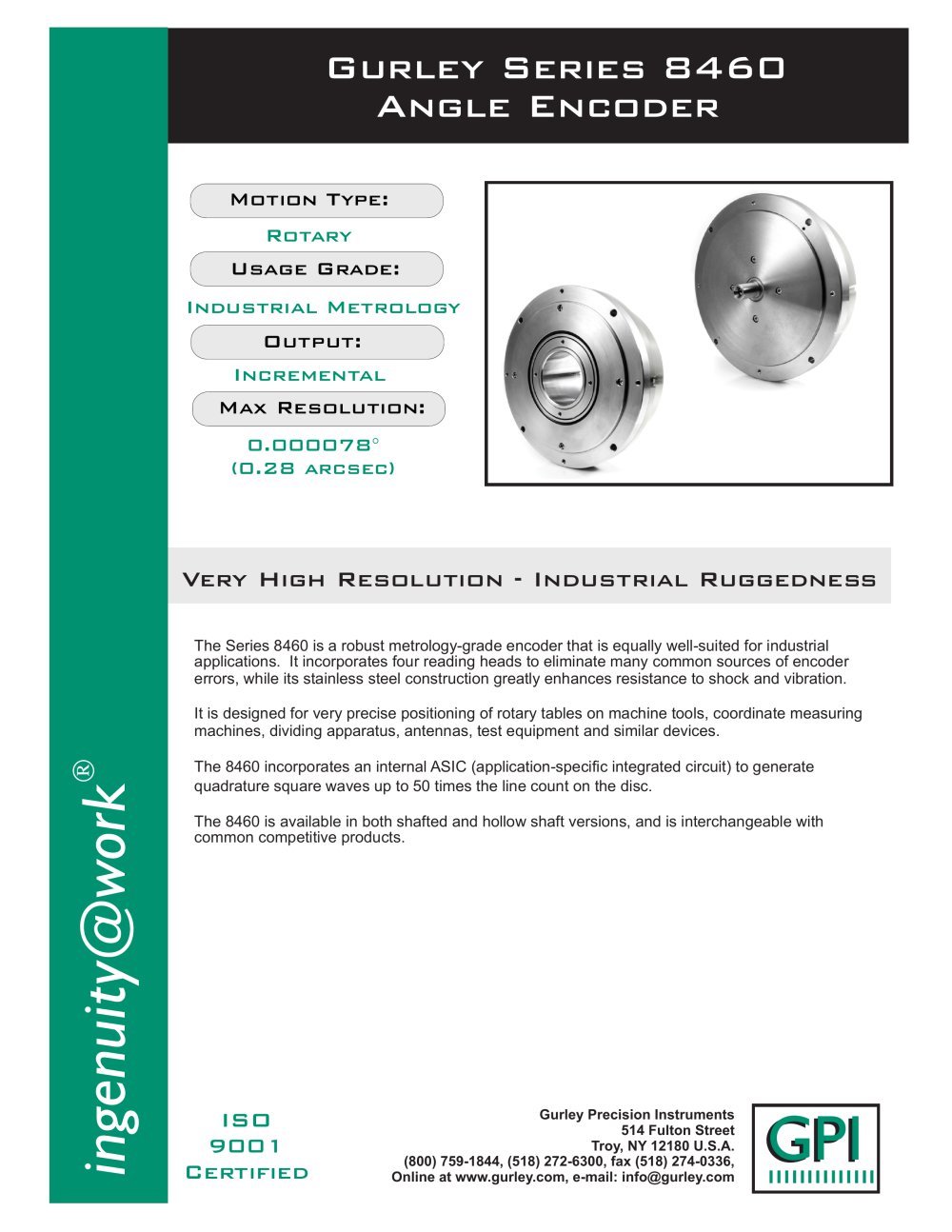

Gurley Series BX6D Angle Encoder

Motion Tyre:

Rotary Usage Grade:

Industrial Metrology

Output:

gremental

Max Resolution:

□ .□□□□73° (□.23 argseg)

The Series 8X60 is a robust metrology-grade encoder that is equally well-suited for industrial applications. It incorporates four reading heads to eliminate many common sources ofencoder errors, while its stainless steel construction greatly enhances resistance to shock and vibration.

It is designed for very precise positioning of rotary tables on machine tools, coordinate measuring machines, dividing apparatus, antennas, test equipment and similar devices.

The 8X60 incorporates an internal ASIC (application-specific integrated circuit) to generate quadrature square waves up to 64 times the line count on the disc. Thus, the resolution (after 4X quadrature evaluation by the user) can be as fine as 0.28 arcsec (0.000078°, or 4,608,000 counts per revolution).

The 8X60 is available in both shafted and hollow shaft versions, and is interchangeable with common competitive products. It comes in two accuracy grades:

©

o c

<L>

Certified
