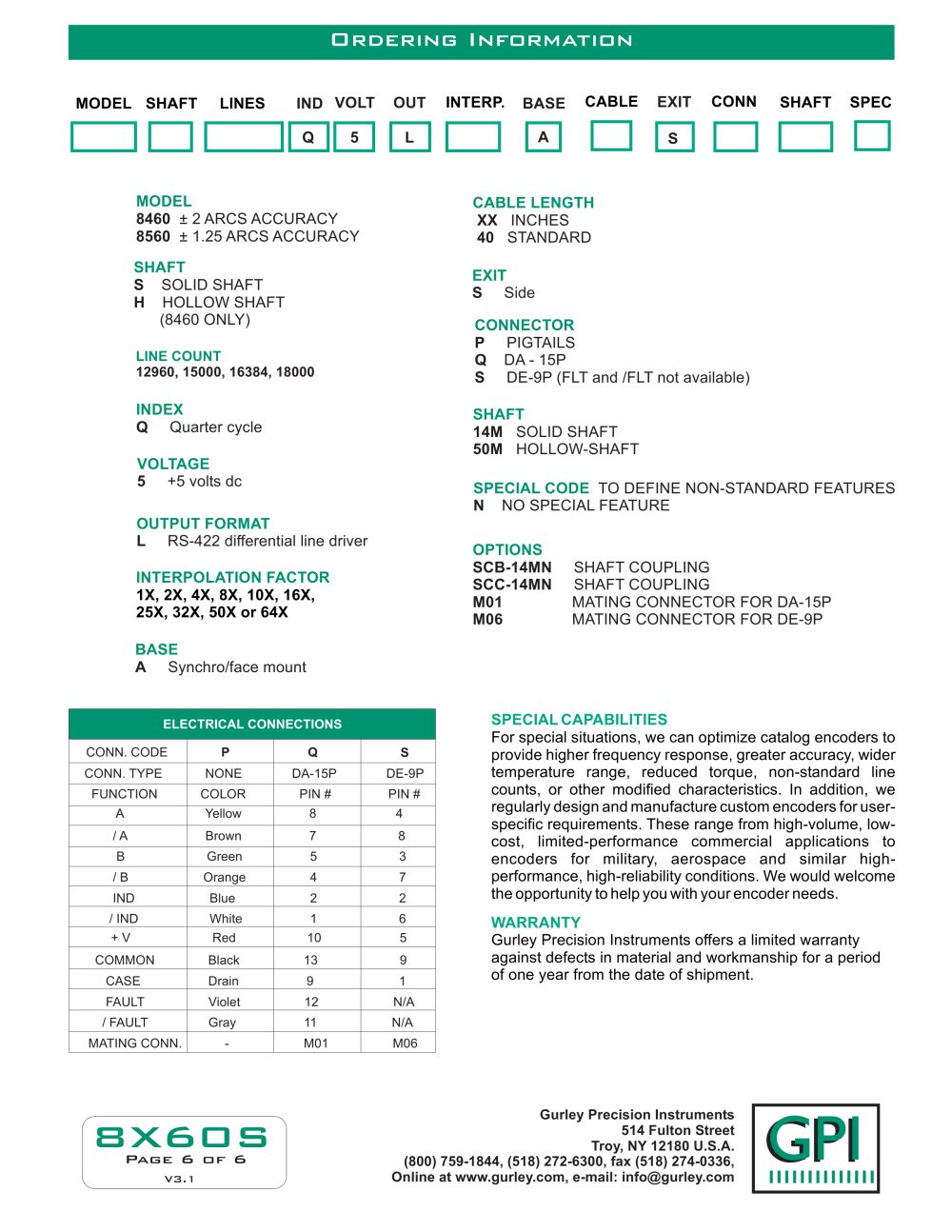

| | | (Ordering Information | | |
| | | |
| | | INTERP. BASE CABLE | | CONN SHAFT SPEC | | |
| | | MODEL SHAFT LINES IND VOLT | | |
| | | |
| | | |
| | | A | | |
| | | Q | | 5L | | |
| | | S | | |
| | | |
| | | |
| | | |
| | | |
| | | MODEL 8460 ±2 ARCS ACCURACY 8560 ± 1.25 ARCS ACCURACY | | |
| | | CABLE LENGTH XX INCHES 40 STANDARD | | |
| | | |
| | | |
| | | S SOLID SHAFT H HOLLOW SHAFT (8460 ONLY) LINE COUNT 12960,15000,16384,18000 | | |
| | | S Side CONNECTOR P PIGTAILS Q DA-15P S DE-9P (FLT and /FLT not available) | | |
| | | |
| | | |
| | | uncv | | |
| | | SHAFT 14M SOLID SHAFT 50M HOLLOW-SHAFT SPECIAL CODE TO DEFINE NON-STANDARD FEATURES N NO SPECIAL FEATURE | | |
| | | |
| | | Q Quarter cycle VOLTAGE 5 +5 volts dc OUTPUT FORMAT L RS-422 differential line driver INTERPOLATION FACTOR 1X, 2X, 4X, 8X, 10X, 16X, 25X, 32X, 50X or 64X BASE A Synchro/face mount | | |
| | | |
| | | OPTIONS SCB-14MN SCC-14MN M01 M06 | | |
| | | SHAFT COUPLING MATING CONNECTOR FOR DA-15P MATING CONNECTOR FOR DE-9P | | |
| | | |
| | | |
| | | SPECIAL CAPABILITIES For special situations, we can optimize catalog industrial encoders to provide higher frequency response, greater accuracy, wider temperature range, reduced torque, non-standard line counts, or other modified characteristics. In addition, we regularly design and manufacture custom encoders for user-specific requirements. These range from high-volume, low-cost, limited-performance commercial applications to encoders for military, aerospace and similar high-performance, high-reliability conditions. We would welcome the opportunity to help you with your encoder needs. WARRANTY Gurley Precision Instruments offers a limited warranty against defects in material and workmanship for a period of one year from the date of shipment. | | |
| | | LECTRICAL CONNECTION | | |
| | | |
| | | | | | | | | | | | CONN. CODE | P | Q | S | | | | CONN. TYPE | NONE | DA-15P | DE-9P | | | | FUNCTION | COLOR | PIN # | PIN # | | | | A | Yellow | 8 | 4 | | | | /A | Brown | 7 | 8 | | | | B | Green | 5 | 3 | | | | /B | Orange | 4 | 7 | | | | IND | Blue | 2 | 2 | | | | /IND | White | 1 | 6 | | | | + V | Red | 10 | 5 | | | | COMMON | Black | 13 | 9 | | | | CASE | Drain | 9 | 1 | | | | FAULT | Violet | 12 | N/A | | | | / FAULT | Gray | 11 | N/A | | | | MATING CONN. | - | M01 | M06 | | | | | | | | | | | |
| | | |
| | | |
