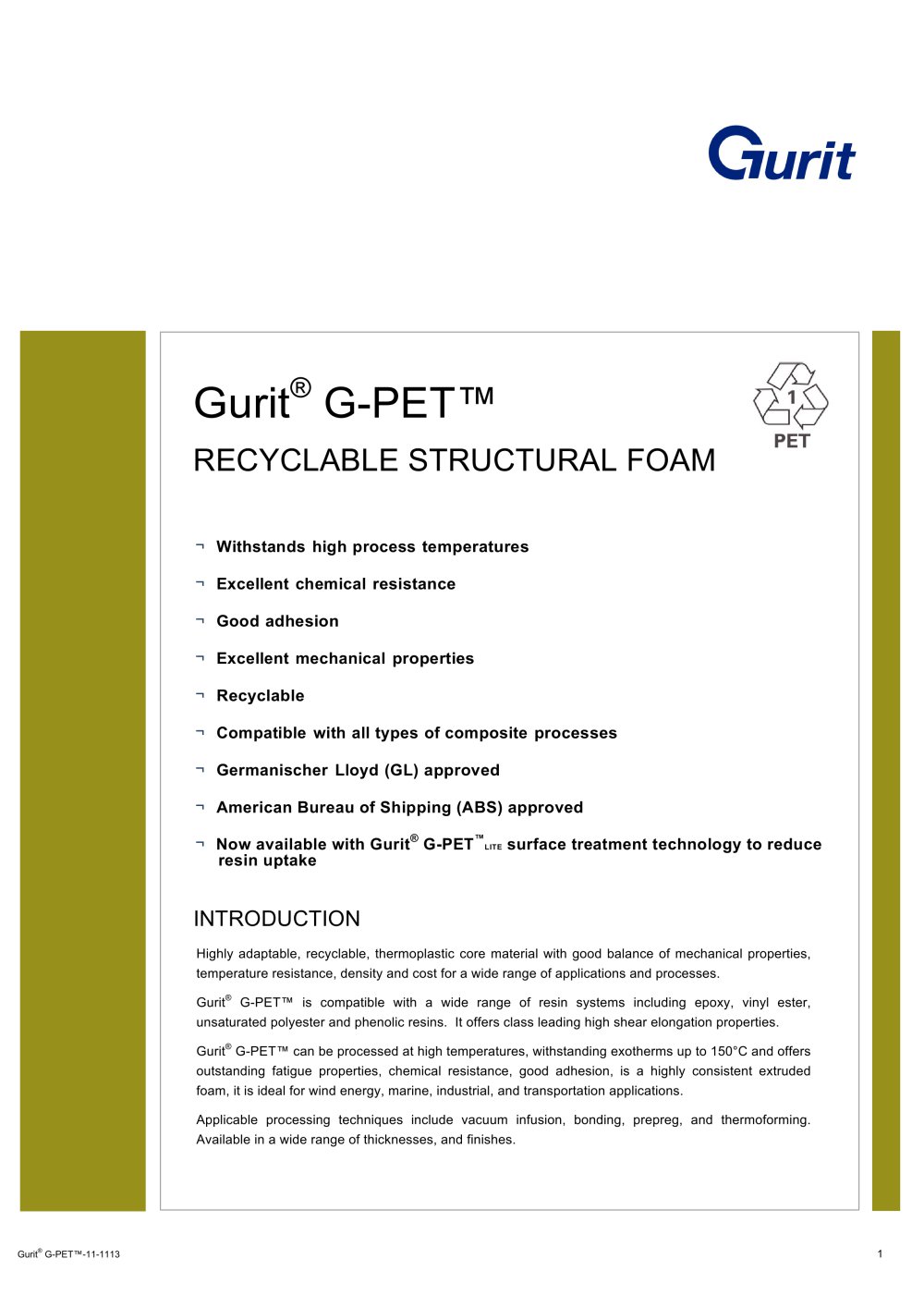

PDSWE-G-PET-5-0810 1 G-PET Recyclable Structural Foam �¡ Withstands high process temperatures �¡ Excellent chemical resistance �¡ Good adhesion �¡ Excellent mechanical properties �¡ Recyclable �¡ Compatible with all types of composite processes �¡ G-PET 115 is Germanischer Lloyd (GL) approved Introduction Highly adaptable, recyclable, thermoplastic foam with good balance of mechanical properties, temperature resistance, density and cost for a wide range of applications and production processes. Type Test Method Units G-PET 80 G-PET 115 G-PET 135 Density ISO 845 kg/m3 80 115 135 Compressive Strength ASTM D1621 MPa 1.0 1.8 2.2 Compressive Modulus ASTM D1621 MPa 45 67 90 Shear Strength ASTM C273 MPa 0.6 1.0 1.1 Shear Modulus ASTM C273 MPa 15 28 30 Shear Elongation ASTM C273 % 21 11 9 Please note: Data quoted is average data at each product’s nominal density and are derived from regular testing of production materials. Statistically derived minimum value data, satisfying the design requirements of various classification societies, are available on request.
