Corecell T Foam (v8) - Gurit - #2

Text version of the page

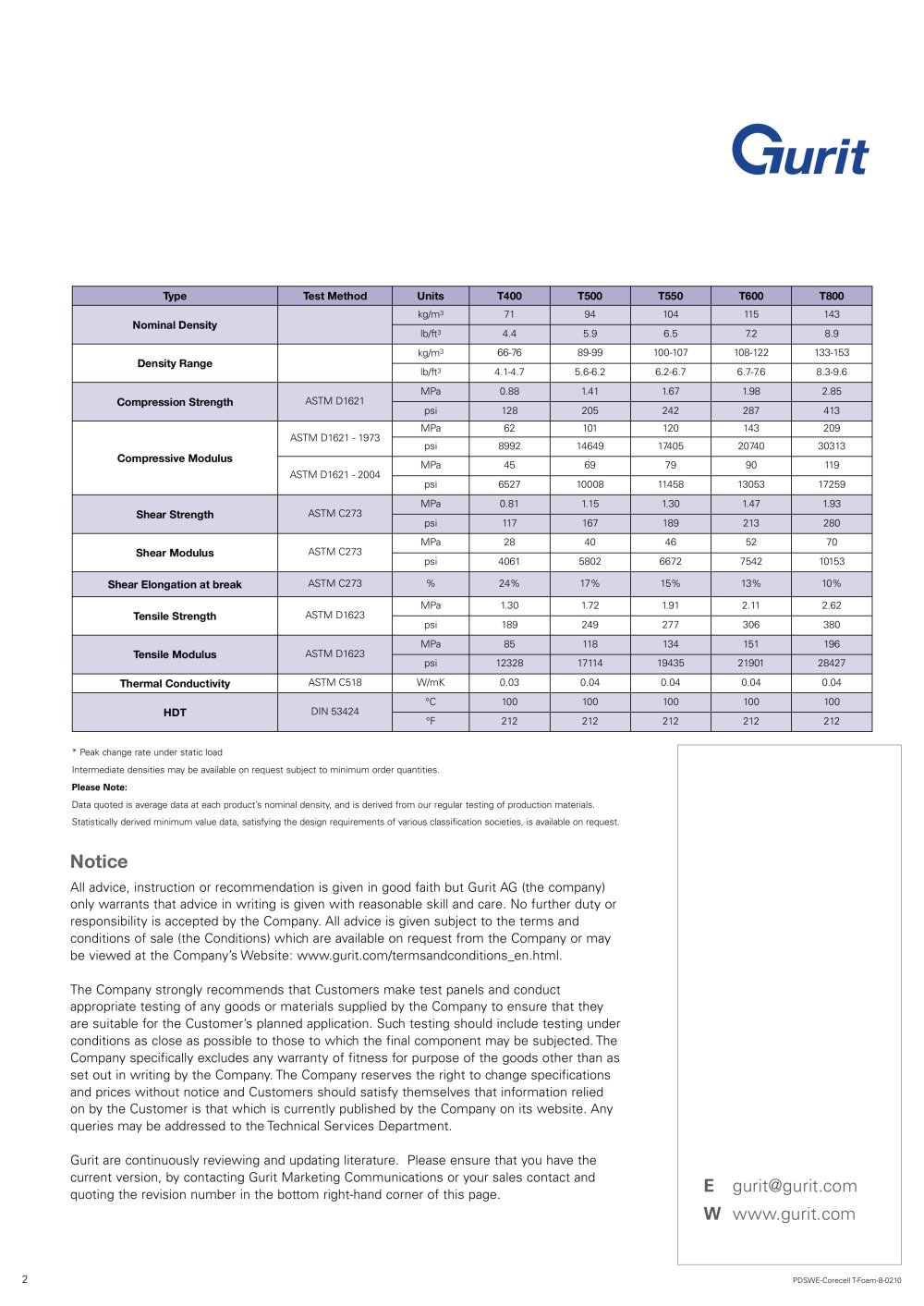

2 PDSWE-Corecell T-Foam-8-0210 * Peak change rate under static load Intermediate densities may be available on request subject to minimum order quantities. Please Note: Data quoted is average data at each product’s nominal density, and is derived from our regular testing of production materials. Statistically derived minimum value data, satisfying the design requirements of various classification societies, is available on request. Notice All advice, instruction or recommendation is given in good faith but Gurit AG (the company) only warrants that advice in writing is given with reasonable skill and care. No further duty or responsibility is accepted by the Company. All advice is given subject to the terms and conditions of sale (the Conditions) which are available on request from the Company or may be viewed at the Company’s Website: www.gurit.com/termsandconditions_en.html. The Company strongly recommends that Customers make test panels and conduct appropriate testing of any goods or materials supplied by the Company to ensure that they are suitable for the Customer’s planned application. Such testing should include testing under conditions as close as possible to those to which the final component may be subjected. The Company specifically excludes any warranty of fitness for purpose of the goods other than as set out in writing by the Company. The Company reserves the right to change specifications and prices without notice and Customers should satisfy themselves that information relied on by the Customer is that which is currently published by the Company on its website. Any queries may be addressed to the Technical Services Department. Gurit are continuously reviewing and updating literature. Please ensure that you have the current version, by contacting Gurit Marketing Communications or your sales contact and quoting the revision number in the bottom right-hand corner of this page. Gurit (Canada) Inc 175 rue Péladeau, Magog, (Québec) J1X 5G9, Canada T +1 819 847 2182 F +1 819 847 2572 E info-na@gurit.com W www.gurit.com Gurit (Spain) SA Polígono Industrial Romica C/K, Parc.11c 02080 - Albacete Spain T +34 967 254 507 F +34 967 254 005 W www.gurit.com Gurit (Tianjin) Composite Materials Co., Ltd. Hengtong Road, YSP. TEDA. Tianjin. P.R. China T +86 22 8210 6850 F +86 22 8210 8622 W www.gurit.com Type Test Method Units T400 T500 T550 T600 T800 Nominal Density kg/m3 71 94 104 115 143 lb/ft3 4.4 5.9 6.5 7.2 8.9 Density Range kg/m3 66-76 89-99 100-107 108-122 133-153 lb/ft3 4.1-4.7 5.6-6.2 6.2-6.7 6.7-7.6 8.3-9.6 Compression Strength ASTM D1621 MPa 0.88 1.41 1.67 1.98 2.85 psi 128 205 242 287 413 Compressive Modulus ASTM D1621 - 1973 MPa 62 101 120 143 209 psi 8992 14649 17405 20740 30313 ASTM D1621 - 2004 MPa 45 69 79 90 119 psi 6527 10008 11458 13053 17259 Shear Strength ASTM C273 MPa 0.81 1.15 1.30 1.47 1.93 psi 117 167 189 213 280 Shear Modulus ASTM C273 MPa 28 40 46 52 70 psi 4061 5802 6672 7542 10153 Shear Elongation at break ASTM C273 % 24% 17% 15% 13% 10% Tensile Strength ASTM D1623 MPa 1.30 1.72 1.91 2.11 2.62 psi 189 249 277 306 380 Tensile Modulus ASTM D1623 MPa 85 118 134 151 196 psi 12328 17114 19435 21901 28427 Thermal Conductivity ASTM C518 W/mK 0.03 0.04 0.04 0.04 0.04 HDT DIN 53424 °C 100 100 100 100 100 °F 212 212 212 212 212
