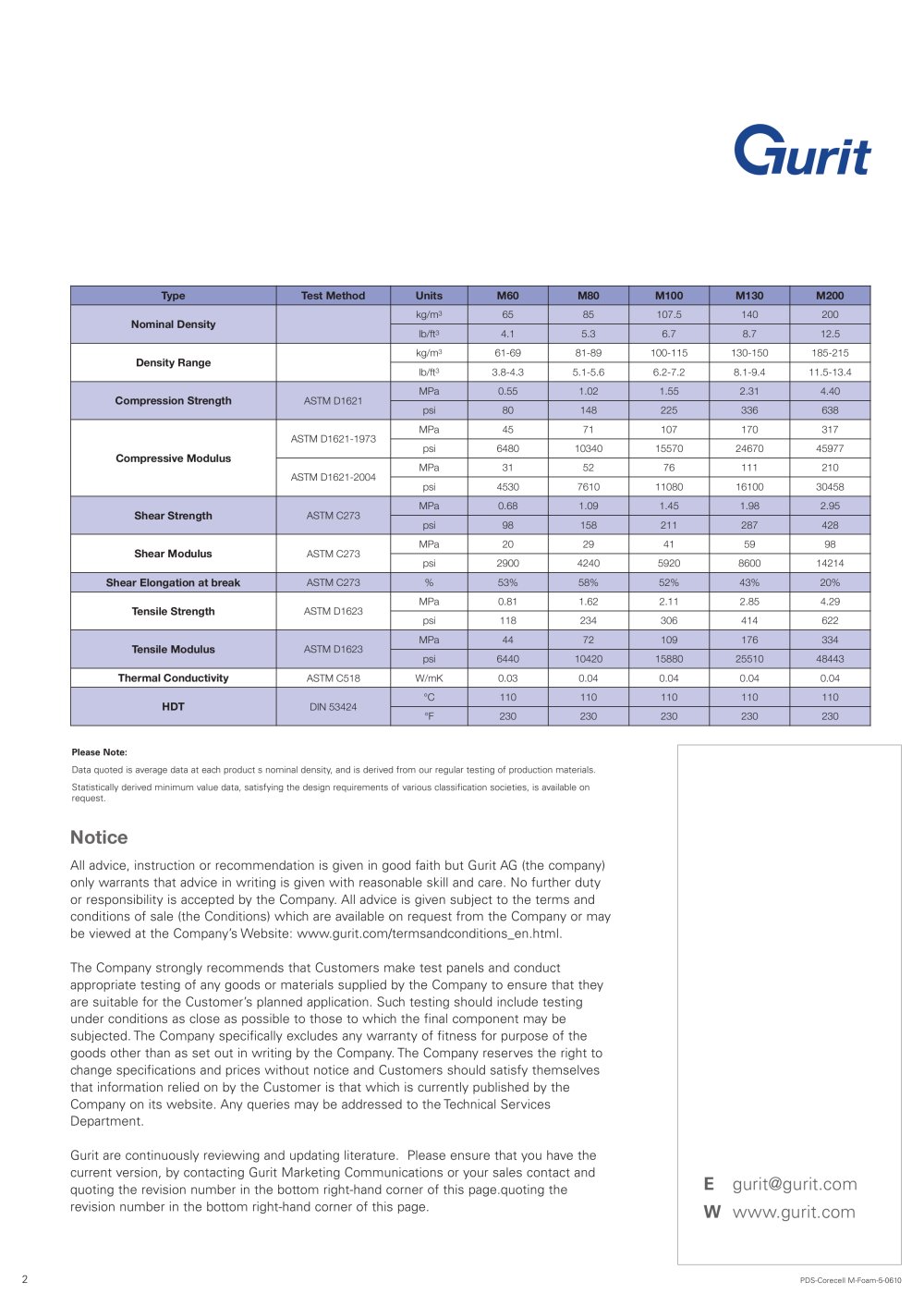

2 PDS-Corecell M-Foam-5-0610 Please Note: Data quoted is average data at each product..s nominal density, and is derived from our regular testing of production materials. Statistically derived minimum value data, satisfying the design requirements of various classification societies, is available on request. Notice SP-High Modulus is the marine business of Gurit (the company). All advice, instruction or recommendation is given in good faith but the Company only warrants that advice in writing is given with reasonable skill and care. No further duty or responsibility is accepted by the Company. All advice is given subject to the terms and conditions of sale (the Conditions) which are available on request from the Company or may be viewed at the Company’s Website: www.gurit.com/termsandconditions_en.html. The Company strongly recommends that Customers make test panels and conduct appropriate testing of any goods or materials supplied by the Company to ensure that they are suitable for the Customer’s planned application. Such testing should include testing under conditions as close as possible to those to which the final component may be subjected. The Company specifically excludes any warranty of fitness for purpose of the goods other than as set out in writing by the Company. The Company reserves the right to change specifications and prices without notice and Customers should satisfy themselves that information relied on by the Customer is that which is currently published by the Company on its website. Any queries may be addressed to the Technical Services Department. Gurit are continuously reviewing and updating literature. Please ensure that you have the current version, by contacting Gurit Marketing Communications or your sales contact and quoting the revision number in the bottom right-hand corner of this page. Type Test Method Units M60 M80 M100 M130 M200 Nominal Density kg/m3 65 85 107.5 140 200 lb/ft3 4.1 5.3 6.7 8.7 12.5 Density Range kg/m3 61-69 81-89 100-115 130-150 185-215 lb/ft3 3.8-4.3 5.1-5.6 6.2-7.2 8.1-9.4 11.5-13.4 Compression Strength ASTM D1621 MPa 0.55 1.02 1.55 2.31 4.40 psi 80 148 225 336 638 Compressive Modulus ASTM D1621-1973 MPa 45 71 107 170 317 psi 6480 10340 15570 24670 45977 ASTM D1621-2004 MPa 31 52 76 111 210 psi 4530 7610 11080 16100 30458 Shear Strength ASTM C273 MPa 0.68 1.09 1.45 1.98 2.95 psi 98 158 211 287 428 Shear Modulus ASTM C273 MPa 20 29 41 59 98 psi 2900 4240 5920 8600 14214 Shear Elongation at break ASTM C273 % 53% 58% 52% 43% 20% Tensile Strength ASTM D1623 MPa 0.81 1.62 2.11 2.85 4.29 psi 118 234 306 414 622 Tensile Modulus ASTM D1623 MPa 44 72 109 176 334 psi 6440 10420 15880 25510 48443 Thermal Conductivity ASTM C518 W/mK 0.03 0.04 0.04 0.04 0.04 HDT DIN 53424 °C 110 110 110 110 110 °F 230 230 230 230 230 UK St Cross Business Park Newport, Isle of Wight United Kingdom PO30 5WU T +44 (0) 1983 828 000 E marine@gurit.com Australia Unit 1A / 81 Bassett Street, Mona Vale, 2103 NSW, Australia T +61 (0) 2 9979 7248 E sales-au@gurit.com New Zealand 32 Canaveral Drive, Albany, Private Box 302-191, North Harbour, 0751 Auckland, New Zealand T +64 (0) 9 415 6262 Canada 175 rue Péladeau, Magog, (Québec) J1X 5G9, Canada T +1 819 847 2182 E info-na@gurit.com W www.gurit.com
