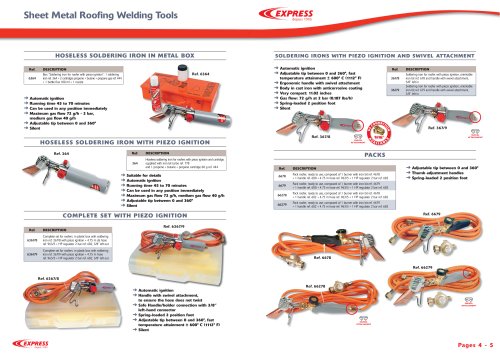

Sheet metal roofing welding tools - 8 Pages

Sheet Metal Roofing Welding Tools
Ref.
6364
DESCRIPTION
Ref. 6364
Box “Soldering iron for roofer with piezo ignition”: 1 soldering
iron ref. 364 + 2 cartridges propene + butane + propane gas ref. 444
+ 1 bottle ux 100 ml + 1 nozzle
Automatic ignition
Adjustable tip between 0 and 360°, fast
temperature attainment ± 600° C (1112° F)
Ergonomic handle with swivel attachment
Body in cast iron with anticorrosive coating
Very compact: 11.02 inches
Gas flow: 72 g/h at 2 bar (0.187 lbs/h)
Spring-loaded 2 position foot
Silent
Ref.
367/8
367/9
Ref.
DESCRIPTION
364
Ref. 364
Hoseless soldering iron for roofers with piezo ignition and cartridge,
supplied with iron bit turbo ref. 778
and 1 propene + butane + propane cartridge 60 g ref. 444
Suitable for details
Automatic ignition
Running time 45 to 70 minutes
Can be used in any position immediately
Maximum gas flow 72 g/h, medium gas flow 40 g/h
Adjustable tip between 0 and 360°
Silent
V
N
SWIVEL
ATTACHMENT
HOSELESS SOLDERI NG I RON WITH PI EZO IGN ITION
A
Ref. 367/8
DESCRIPTION
Soldering iron for roofer with piezo ignition, orientable
iron bit ref. 678 and handle with swivel attachment,
3/8” left in
Soldering iron for roofer with piezo ignition, orientable
iron bit ref. 679 and handle with swivel attachment,
3/8” left in
N E CT
US
N
CO
IO
Automatic ignition
Running time 45 to 70 minutes
Can be used in any position immediately
Maximum gas flow 72 g/h - 2 bar,
medium gas flow 40 g/h
Adjustable tip between 0 and 360°
Silent
SOLDERI NG I RONS WITH PI EZO IGN ITION AN D SWIVEL ATTACH M ENT
9/16”
Ref. 367/9
SWIVEL
ATTACHMENT
E
HOSELESS SOLDERING IRON IN METAL BOX
AI LABL
PACKS
Ref.
DESCRIPTION
6678
Pack roofer, ready to use, composed of 1 burner with iron bit ref. 4678
+ 1 handle ref. 600 + 4.75 m hose ref. 963/5 + 1 HP regulator 2 bar ref. 682
6679
Pack roofer, ready to use, composed of 1 burner with iron bit ref. 4679
+ 1 handle ref. 600 + 4.75 m hose ref. 963/5 + 1 HP regulator 2 bar ref. 682
66278
Pack roofer, ready to use, composed of 1 burner with iron bit ref. 4678
+ 1 handle ref. 602 + 4.75 m hose ref. 963/5 + 1 HP regulator 2 bar ref. 682
66279
Adjustable tip between 0 and 360°
Thumb adjustment handles
Spring-loaded 2 position foot
Pack roofer, ready to use, composed of 1 burner with iron bit ref. 4679
+ 1 handle ref. 602 + 4.75 m hose ref. 963/5 + 1 HP regulator 2 bar ref. 682
Ref. 6679
COM PLETE SET WITH PI EZO IGN ITION
Ref. 6367/9
Ref.
DESCRIPTION
6367/8
Complete set for roofers: in plastic box with soldering
iron ref. 367/8 with piezo ignition + 4.75 m de hose
ref. 963/5 + HP regulator 2 bar ref. 682, 3/8” left out
6367/9
Complete set for roofers: in plastic box with soldering
iron ref. 367/9 with piezo ignition + 4.75 m hose
ref. 963/5 + HP regulator 2 bar ref. 682, 3/8” left out
Ref. 6678
Ref. 66279
Ref. 6367/8
Ref. 66278
Automatic ignition
Handle with swivel attachment,
to ensure the hose does not twist
Safe Handle/holder connection with 3/8”
left-hand connector
Spring-loaded 2 position foot
Adjustable tip between 0 and 360°, fast
temperature attainment ± 600° C (1112° F)
Silent
SWIVEL
ATTACHMENT
SWIVEL
ATTACHMENT
