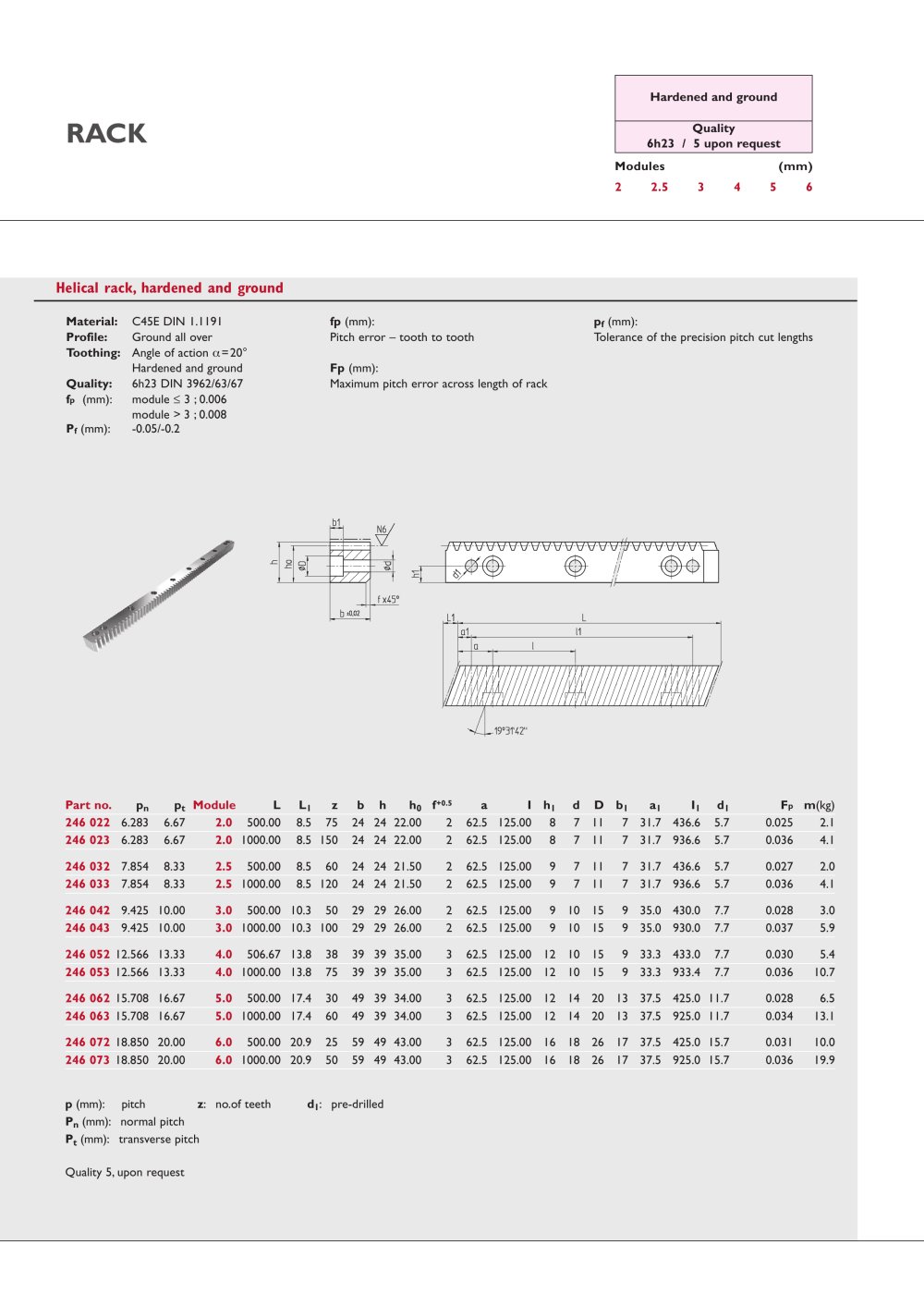

Hardened and ground

RACK

Quality 6h23 / 5 upon request

(mm)

Modules

Helical rack, hardened and ground

Material: C45E DIN 1.1191 Profile: Ground all over Toothing: Angle of action a = 20°

Hardened and ground Quality: 6h23 DIN 3962/63/67 fp (mm): module < 3 ;0.006

module > 3 ;0.008 Pf (mm): -0.05/-0.2

fp (mm):

Pitch error - tooth to tooth Fp (mm):

Maximum pitch error across length of rack

pf (mm):

Tolerance of the precision pitch cut lengths

Part no. p_n p_t Module LL, zb h h₀ f+^0.5 al h, dD b, a, I, d, Fp m(kg)

246 022 6.283 6.67 2.0 500.00 8.5 75 24 24 22.00 2 62.5 125.00 8 7 11 7 31.7 436.6 5.7 0.025 2.1 246 023 6.283 6.67 2.0 1000.00 8.5 150 24 24 22.00 2 62.5 125.00 8 7 11 7 31.7 936.6 5.7 0.036 4.1


246 032	7.854	8.33	2.5	500.00	8.5	60	24	24	21.50	2	62.5	125.00	9	7	11	7	31.7	436.6	5.7	0.027	2.0
246 033	7.854	8.33	2.5	1000.00	8.5	120	24	24	21.50	2	62.5	125.00	9	7	11	7	31.7	936.6	5.7	0.036	4.1
246 042	9.425	10.00	3.0	500.00	10.3	50	29	29	26.00	2	62.5	125.00	9	10	15	9	35.0	430.0	7.7	0.028	3.0
246 043	9.425	10.00	3.0	1000.00	10.3	100	29	29	26.00	2	62.5	125.00	9	10	15	9	35.0	930.0	7.7	0.037	5.9
246 052	12.566	13.33	4.0	506.67	13.8	38	39	39	35.00	3	62.5	125.00	12	10	15	9	33.3	433.0	7.7	0.030	5.4
246 053	12.566	13.33	4.0	1000.00	13.8	75	39	39	35.00	3	62.5	125.00	12	10	15	9	33.3	933.4	7.7	0.036	10.7
246 062	15.708	16.67	5.0	500.00	17.4	30	49	39	34.00	3	62.5	125.00	12	14	20	13	37.5	425.0	11.7	0.028	6.5
246 063	15.708	16.67	5.0	1000.00	17.4	60	49	39	34.00	3	62.5	125.00	12	14	20	13	37.5	925.0	11.7	0.034	13.1
246 072	18.850	20.00	6.0	500.00	20.9	25	59	49	43.00	3	62.5	125.00	16	18	26	17	37.5	425.0	15.7	0.031	10.0
246 073	18.850	20.00	6.0	1000.00	20.9	50	59	49	43.00	3	62.5	125.00	16	18	26	17	37.5	925.0	15.7	0.036	19.9

p (mm): pitch z: no.of teeth d|: pre-drilled

Pn (mm): normal pitch P_t (mm): transverse pitch

Quality 5, upon request
