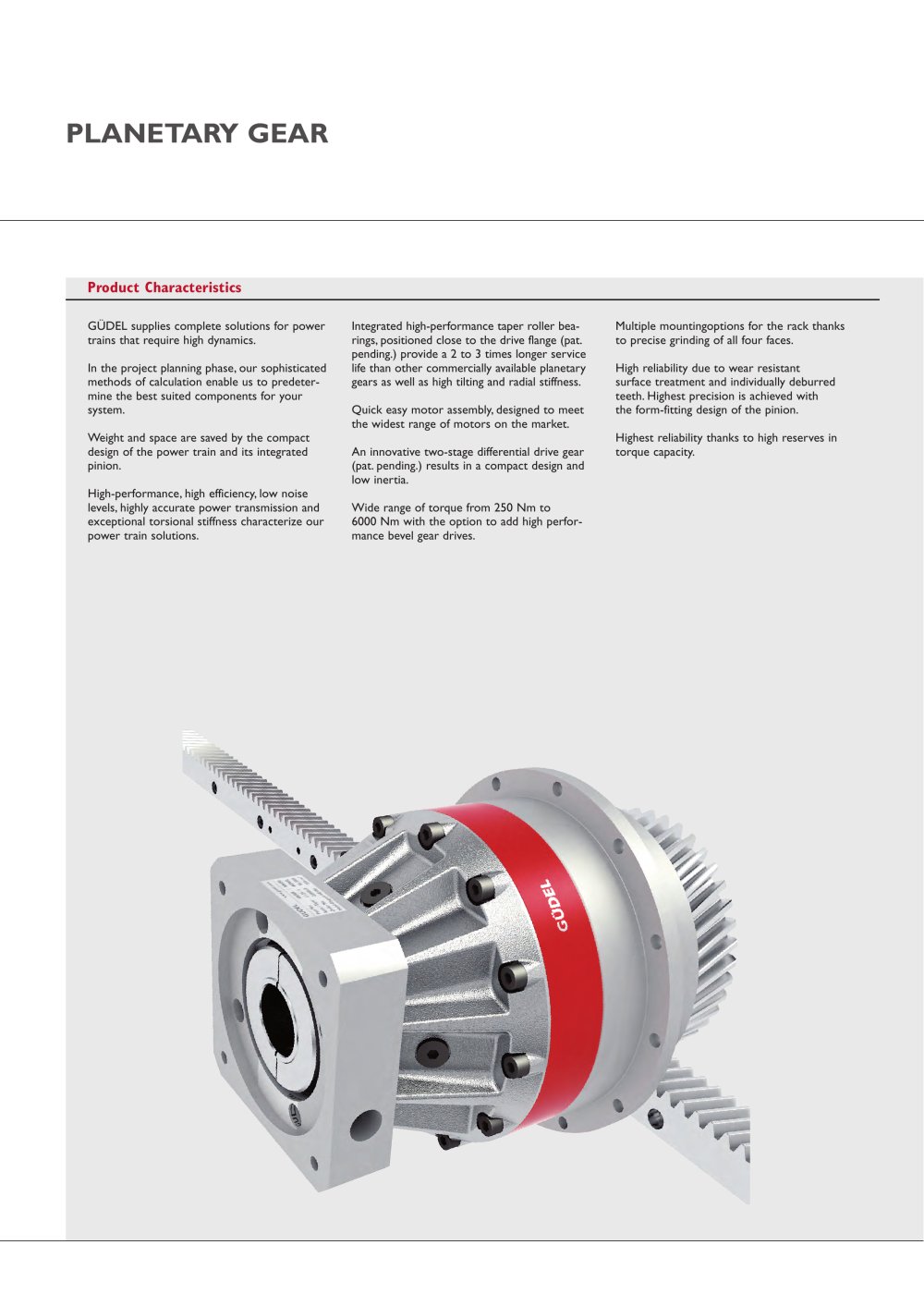

PLANETARY GEAR

Product Characteristics

GÜDEL supplies complete solutions for powertrains that require high dynamics.In the project planning phase,our sophisticatedmethods of calculation enable us to predeter- mine the best suited components for your system.Weight and space are saved by the compactdesign of the power train and its integrated pinion.High-performance,high efficiency,low noiselevels,highly accurate power transmission and exceptional torsional stiffness characterize our power train solutions. Integrated high-performance taper roller bea-rings,positioned close to the drive flange (pat. pending.) provide a 2 to 3 times longer service life than other commercially available planetary gears as well as high tilting and radial stiffness.Quick easy motor assembly,designed to meetthe widest range of motors on the market.An innovative two-stage differential drive gear(pat.pending.) results in a compact design and low inertia.Wide range of torque from 250 Nm to6000 Nm with the option to add high perfor- mance bevel gear drives. Multiple mountingoptions for the rack thanks to precise grinding of all four faces.High reliability due to wear resistantsurface treatment and individually deburred teeth.Highest precision is achieved with the form-fitting design of the pinion.Highest reliability thanks to high reserves intorque capacity.
