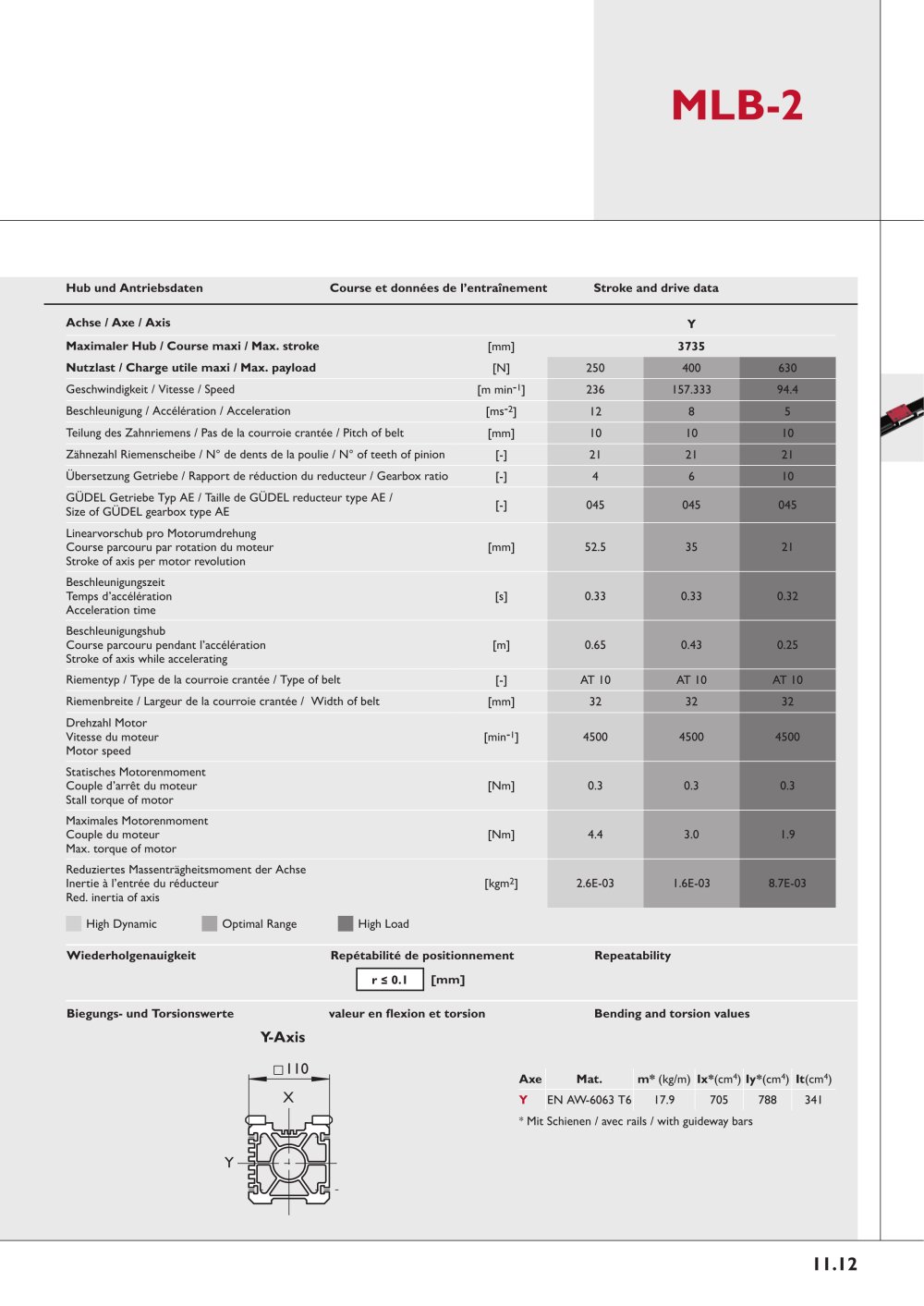

11.13
Hub, course, stroke = sy+ay B
Ly = A+sy+ay+B+325
A
124 max.
70.75
120
156
325
60
Massblatt MLB-2 Côtes MLB-2 Dimensions sheet MLB-2
Baugrösse MLB-2
Taille MLB-2
Size MLB-2
A 55.5
B 178
ay: 50mm
Sicherheitsweg. Minimaler empfohlener Weg.
Course de sécurité Valeur récommandé min.
Security path . Minimal recommended value.
sy
Arbeitshub
Course de travail
Working stroke
