11.09
Ly = A+sy+ay+B+250
A Hub, course, stroke = sy+ay B
92 max.
90
60.5
45
250
120.5

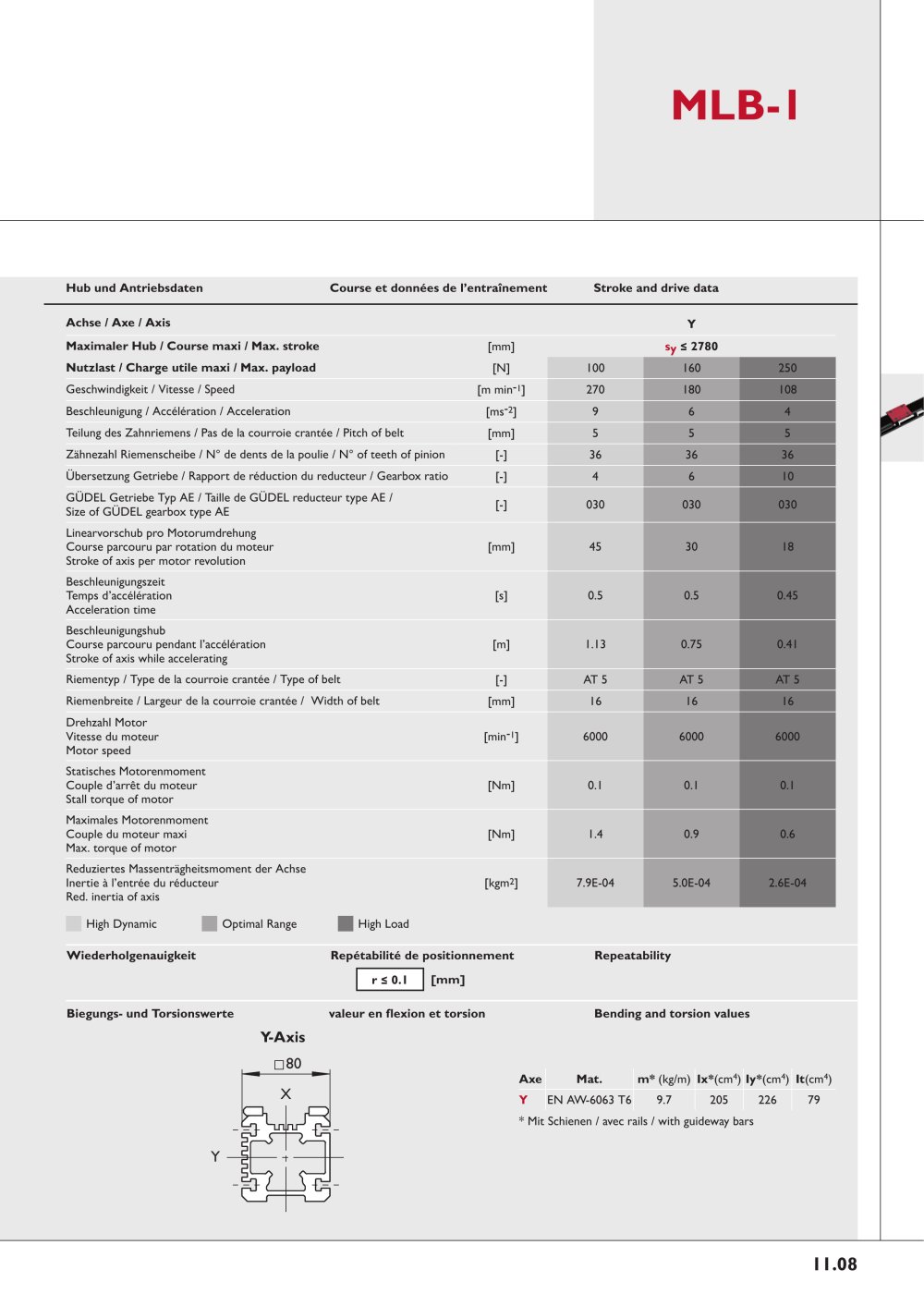

Massblatt MLB-1 Côtes MLB-1 Dimensions sheet MLB-1
Baugrösse MLB-1
Taille MLB-1
Size MLB-1
A 55.5
B 136
ay: 50mm
Sicherheitsweg. Minimaler empfohlener Weg.
Course de sécurité Valeur récommandé min.
Security path . Minimal recommended value.
sy
Arbeitshub
Course de travail
Working stroke
