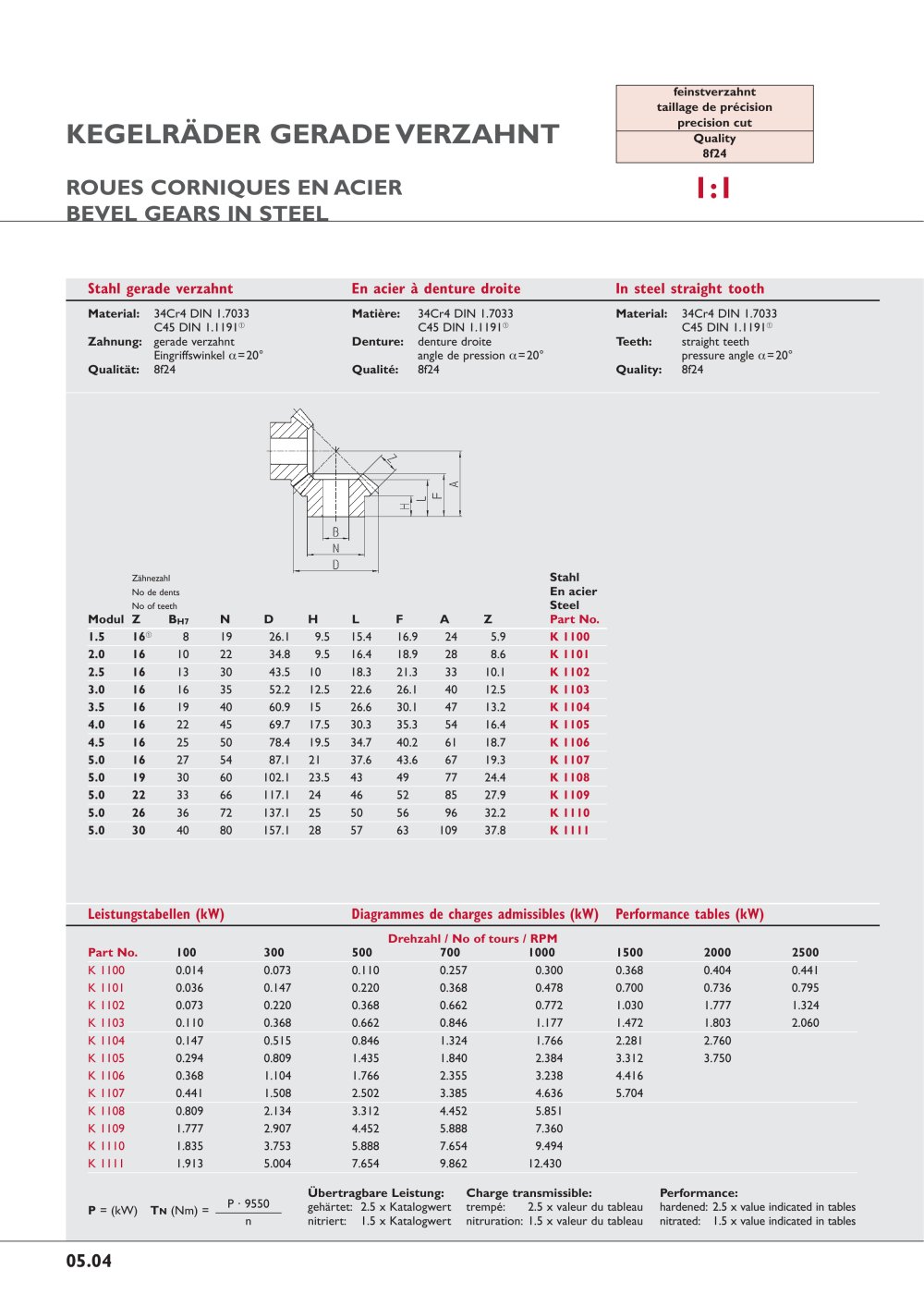

05.04 Stahl gerade verzahnt En acier à denture droite In steel straight tooth Leistungstabellen (kW) Diagrammes de charges admissibles (kW) Performance tables (kW) Material: 34Cr4 DIN 1.7033 C45 DIN 1.1191. Zahnung: gerade verzahnt Eingriffswinkel á=20° Qualität: 8f24 Matière: 34Cr4 DIN 1.7033 C45 DIN 1.1191. Denture: denture droite angle de pression á=20° Qualité: 8f24 Material: 34Cr4 DIN 1.7033 C45 DIN 1.1191. Teeth: straight teeth pressure angle á=20° Quality: 8f24 Zähnezahl Stahl No de dents En acier No of teeth Steel Modul Z BH7 N D H L F A Z Part No. 1.5 16. 8 19 26.1 9.5 15.4 16.9 24 5.9 K 1100 2.0 16 10 22 34.8 9.5 16.4 18.9 28 8.6 K 1101 2.5 16 13 30 43.5 10 18.3 21.3 33 10.1 K 1102 3.0 16 16 35 52.2 12.5 22.6 26.1 40 12.5 K 1103 3.5 16 19 40 60.9 15 26.6 30.1 47 13.2 K 1104 4.0 16 22 45 69.7 17.5 30.3 35.3 54 16.4 K 1105 4.5 16 25 50 78.4 19.5 34.7 40.2 61 18.7 K 1106 5.0 16 27 54 87.1 21 37.6 43.6 67 19.3 K 1107 5.0 19 30 60 102.1 23.5 43 49 77 24.4 K 1108 5.0 22 33 66 117.1 24 46 52 85 27.9 K 1109 5.0 26 36 72 137.1 25 50 56 96 32.2 K 1110 5.0 30 40 80 157.1 28 57 63 109 37.8 K 1111 Drehzahl / No of tours / RPM Part No. 100 300 500 700 1000 1500 2000 2500 K 1100 0.014 0.073 0.110 0.257 0.300 0.368 0.404 0.441 K 1101 0.036 0.147 0.220 0.368 0.478 0.700 0.736 0.795 K 1102 0.073 0.220 0.368 0.662 0.772 1.030 1.777 1.324 K 1103 0.110 0.368 0.662 0.846 1.177 1.472 1.803 2.060 K 1104 0.147 0.515 0.846 1.324 1.766 2.281 2.760 K 1105 0.294 0.809 1.435 1.840 2.384 3.312 3.750 K 1106 0.368 1.104 1.766 2.355 3.238 4.416 K 1107 0.441 1.508 2.502 3.385 4.636 5.704 K 1108 0.809 2.134 3.312 4.452 5.851 K 1109 1.777 2.907 4.452 5.888 7.360 K 1110 1.835 3.753 5.888 7.654 9.494 K 1111 1.913 5.004 7.654 9.862 12.430 1:1 P = (kW) TN (Nm) = P · 9550 n Übertragbare Leistung: Charge transmissible: Performance: gehärtet: 2.5 x Katalogwert trempé: 2.5 x valeur du tableau hardened: 2.5 x value indicated in tables nitriert: 1.5 x Katalogwert nitruration: 1.5 x valeur du tableau nitrated: 1.5 x value indicated in tables feinstverzahnt taillage de précision precision cut Quality 8f24 KEGELRÄDER GERADE VERZAHNT ROUES CORNIQUES EN ACIER BEVEL GEARS IN STEEL
