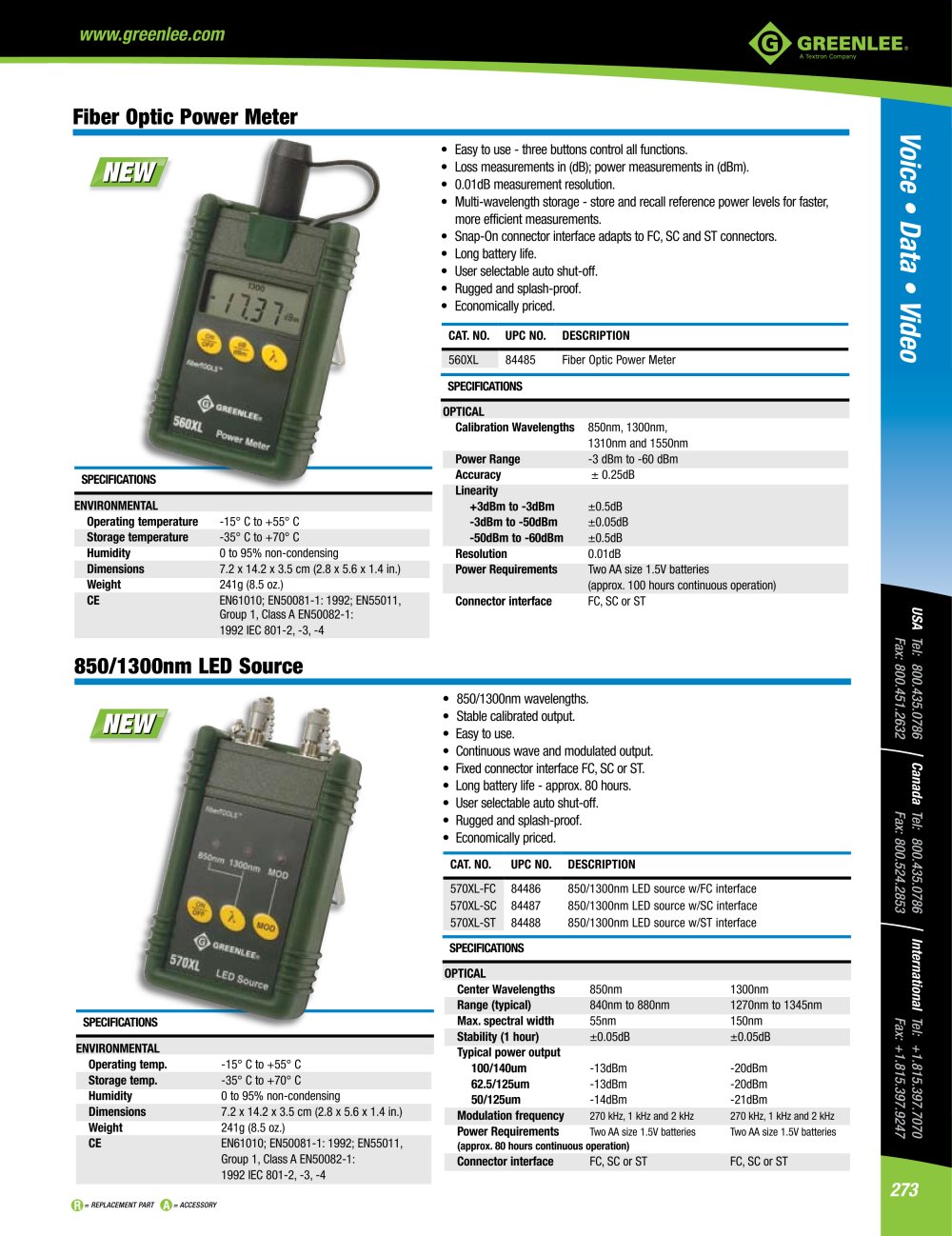

| | | » Easy to use - three buttons control all functions. » Loss measurements in (dB); power measurements in (dBm). » 0.01dB measurement resolution. » Multi-wavelength storage - store and recall reference power levels for faster, more efficient measurements. » Snap-On connector interface adapts to FC, SC and ST connectors. Long battery life. » User selectable auto shut-off. » Rugged and splash-proof. » Economically priced. CAT. NO. UPC NO. DESCRIPTION 560XL 84485 Fiber Optic Power Meter | | |
| | | • | | |
| | | |
| | | |
| | | SPECIFICATIONS | | |
| | | |
| | | OPTICAL Calibration Wavelengths 850nm, 1300nm, | | |
| | | |
| | | 1310nm and 1550nm -3 dBm to -60 dBm ± 0.25dB ±0.5dB ±0.05dB ±0.5dB 0.01dB Two AA size 1.5V batteries (approx. 100 hours continuous operation) FC, SC or ST | | |
| | | Power Range Accuracy Linearity +3dBm to -3dBm -3dBm to -50dBm -50dBm to -60dBm Resolution Power Requirements Connector interface | | |
| | | SPECIFICATIONS | | |
| | | |
| | | ENVIRONMENTAL Operating temperature Storage temperature Humidity Dimensions Weight CE | | |
| | | -15° C to +55° C -35° C to +70° C 0 to 95% non-condensing 7.2 x 14.2 x 3.5 cm (2.8 x 5.6 x 1.4 in.) 241g (8.5 oz.) EN61010; EN50081-1: 1992; EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4 | | |
| | | |
| | | |
| | | |
| | | |
| | | • 850/1300nm wavelengths. • Stable calibrated output. • Easy to use. • Continuous wave and modulated output. • Fixed connector interface FC, SC or ST. • Long battery life - approx. 80 hours. • User selectable auto shut-off. • Rugged and splash-proof. • Economically priced. CAT. NO. UPC NO. DESCRIPTION | | |
| | | |
| | | \3 Co Oo vi 3 6 Co CT) | | |
| | | 570XL-FC 84486 570XL-SC 84487 570XL-ST 84488 | | 850/1300nm LED source w/FC interface 850/1300nm LED source w/SC interface 850/1300nm LED source w/ST interface | | |
| | | |
| | | |
| | | SPECIFICATIONS | | |
| | | |
| | | | | | | | | | | OPTICAL | | | | | | Center Wavelengths | 850nm | 1300nm | | | | Range (typical) | 840nm to 880nm | 1270nm to 1345nm | | | | Max. spectral width | 55nm | 150nm | | | | Stability (1 hour) | ±0.05dB | ±0.05dB | | | | Typical power output | | | | | | 100/140um | -13dBm | -20dBm | | | | 62.5/125um | -13dBm | -20dBm | | | | 50/125um | -14dBm | -21dBm | | | | Modulation frequency | 270 kHz, 1 kHz and 2 kHz | 270 kHz,1 kHz and 2 kHz | | | | Power Requirements | Two AA size 1.5V batteries | Two AA size 1.5V batteries | | | | (approx. 80 hours continuous operation) | | | | | Connector interface | FC, SC or ST | FC, SC or ST | | | | | | | | | | |
| | | l | | |
| | | |
| | | SPECIFICATIONS | | |
| | | |
| | | | | | | | | | ENVIRONMENTAL | | | | | Operating temp. | -15° C to +55° C | | | | Storage temp. | -35° C to +70° C | | | | Humidity | 0 to 95% non-condensing | | | | Dimensions | 7.2 x 14.2 x 3.5 cm (2.8 x 5.6 x 1.4 in.) | | | | Weight | 241g (8.5 oz.) | | | | CE | EN61010; EN50081-1: 1992; EN55011, | | | | | Group 1, Class A EN50082-1: | | | | | 1992 IEC 801-2, -3, -4 | | | | [)= REPLACEMENT PART Q | 1=ACCESSORY | | | | | | | | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
