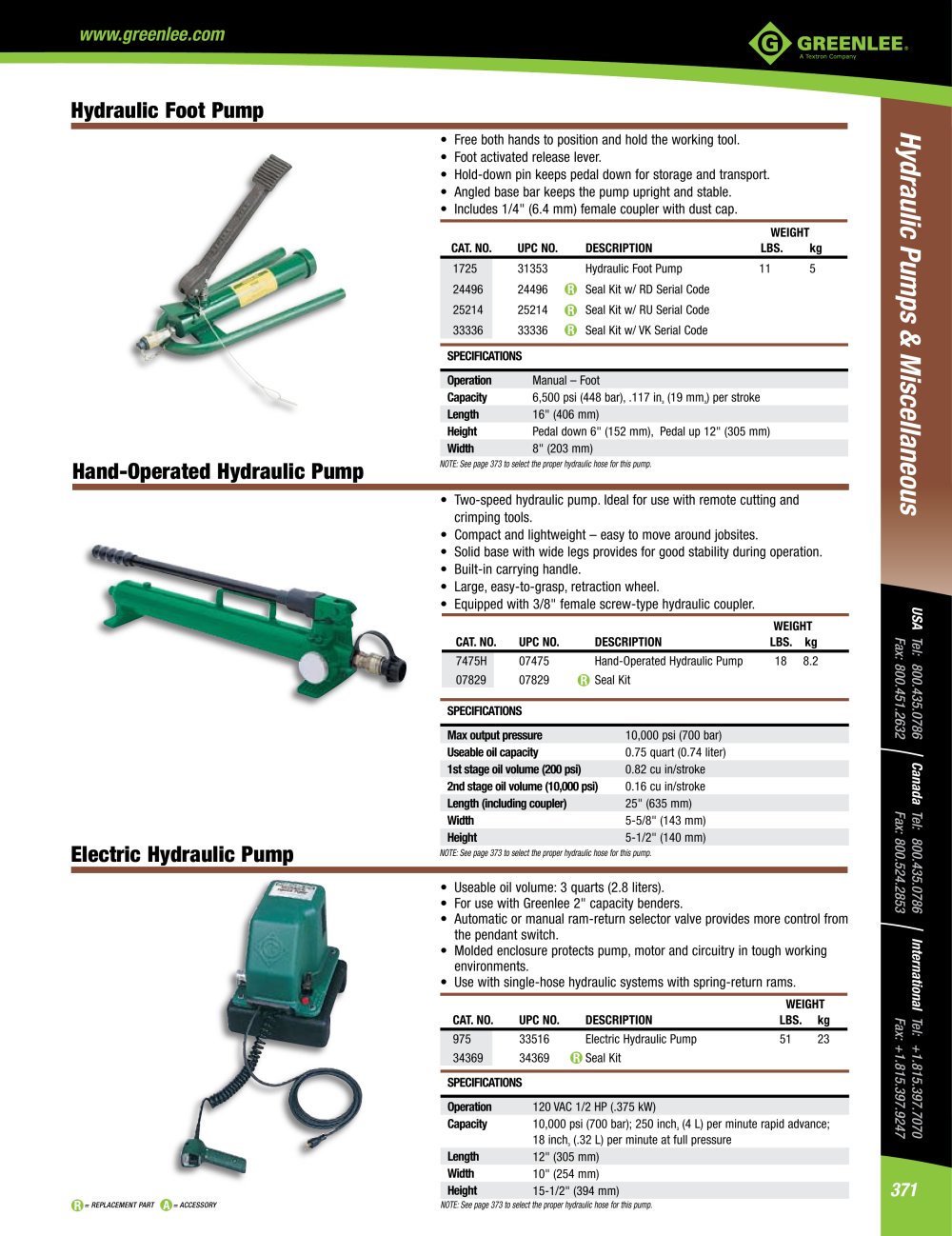

Hydraulic Foot Pump

Hydraulic pumps manufacturer & Miscellaneous

• Free both hands to position and hold the working tool.• Foot activated release lever. • Hold-down pin keeps pedal down for storage and transport.• Angled base bar keeps the pump upright and stable. • Includes 1/4" (6.4 mm) female coupler with dust cap.

WEIGHT CAT. NO. UPC NO. DESCRIPTION LBS. kg 1725 31353 Hydraulic Foot Pump 11 524496 24496 Seal Kit w/ RD Serial Code 25214 25214 Seal Kit w/ RU Serial Code 33336 33336 Seal Kit w/ VK Serial Code SPECIFICATIONSOperation Manual – Foot Capacity 6,500 psi (448 bar), .117 in
³ (19 mm
³ ) per stroke Length 16" (406 mm) Height Pedal down 6" (152 mm), Pedal up 12" (305 mm) Width 8" (203 mm)

Hand-Operated Hydraulic Pump

NOTE: See page 373 to select the proper hydraulic hose for this pump. NOTE: See page 373 to select the proper hydraulic hose for this pump. NOTE: See page 373 to select the proper hydraulic hose for this pump.

• Two-speed hydraulic pump. Ideal for use with remote cutting and crimping tools manufacturer.• Compact and lightweight – easy to move around jobsites. • Solid base with wide legs provides for good stability during operation. • Built-in carrying handle. • Large, easy-to-grasp, retraction wheel. • Equipped with 3/8" female screw-type hydraulic coupler.

USA WEIGHT CAT. NO. UPC NO. DESCRIPTION LBS. kg
Tel: 800.435.0786 Fax: 800.451.2632 7475H 07475 Hand-Operated Hydraulic Pump 18 8.2 07829 07829 Seal Kit SPECIFICATIONSMax output pressure 10,000 psi (700 bar) Useable oil capacity 0.75 quart (0.74 liter)
Canada 1st stage oil volume (200 psi) 0.82 cu in/stroke 2nd stage oil volume (10,000 psi) 0.16 cu in/stroke Length (including coupler) 25" (635 mm)
Tel: 800.435.0786 Fax: 800.524.2853 Width 5-5/8" (143 mm) Height 5-1/2" (140 mm)

Electric Hydraulic Pump

• Useable oil volume: 3 quarts (2.8 liters).• For use with Greenlee 2" capacity benders. • Automatic or manual ram-return selector valve provides more control from the pendant switch.• Molded enclosure protects pump, motor and circuitry in tough working environments.• Use with single-hose hydraulic systems with spring-return rams.

International WEIGHT CAT. NO. UPC NO. DESCRIPTION LBS. kg
Tel: +1.815.397.7070 Fax: +1.815.397.9247 975 33516 Electric Hydraulic Pump 51 23 34369 34369 Seal Kit SPECIFICATIONSOperation 120 VAC 1/2 HP (.375 kW) Capacity 10,000 psi (700 bar); 250 inch
³ (4 L) per minute rapid advance; 18 inch
³ (.32 L) per minute at full pressure Length 12" (305 mm) Width 10" (254 mm) Height 15-1/2" (394 mm)
= REPLACEMENT PART= ACCESSORY
