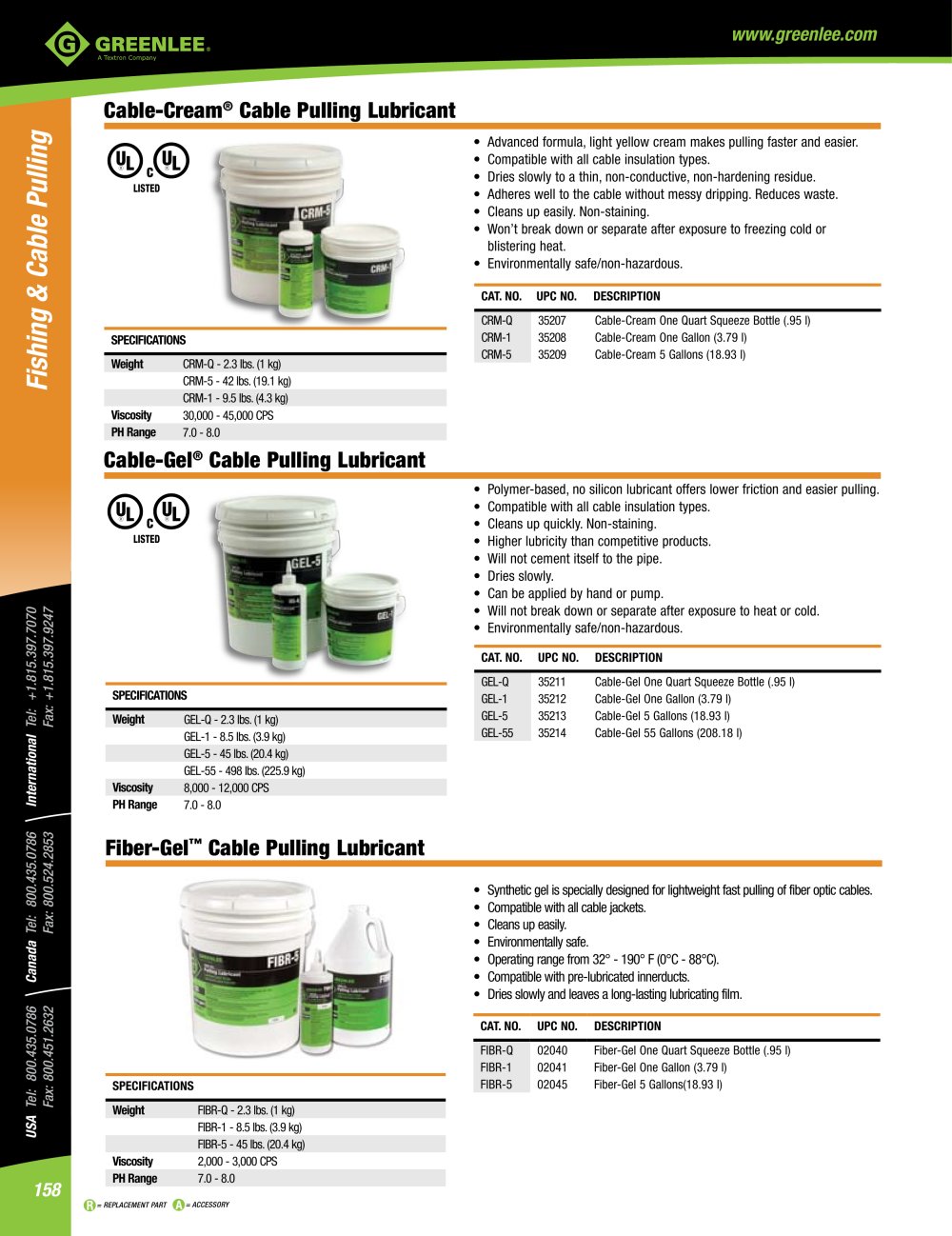

| | | Cable-Cream® Cable Pulling Lubricant | | |
| | | |
| | | • Advanced formula, light yellow cream makes pulling faster and easier. • Compatible with all cable insulation types. • Dries slowly to a thin, non-conductive, non-hardening residue. • Adheres well to the cable without messy dripping. Reduces waste. • Cleans up easily. Non-staining. • Won't break down or separate after exposure to freezing cold or blistering heat. • Environmentally safe/non-hazardous. | | |
| | | 1 | | |
| | | |
| | | ■Ss ■8 <3 | | |
| | | |
| | | |
| | | CAT. NO. UPC NO. DESCRIPTION | | |
| | | |
| | | 5* | | |
| | | | |
| | | CRM-Q 35207 Cable-Cream One Quart Squeeze Bottle (.95 l) CRM-1 35208 Cable-Cream One Gallon (3.79 l) CRM-5 35209 Cable-Cream 5 Gallons (18.93 l) | | |
| | f | |
| | | SPECIFICATIONS | | |
| | | |
| | | |
| | | Weight | | |
| | | CRM-Q - 2.3 lbs. (1 kg) CRM-5 - 42 lbs. (19.1 kg) CRM-1 - 9.5 lbs. (4.3 kg) 30,000 - 45,000 CPS 7.0 - 8.0 | | |
| | | |
| | | |
| | | Viscosity PH Range | | |
| | | |
| | | |
| | | Cable-Gel® Cable Pulling Lubricant | | |
| | | |
| | | • Polymer-based, no silicon lubricant offers lower friction and easier pulling. • Compatible with all cable insulation types. • Cleans up quickly. Non-staining. • Higher lubricity than competitive products. • Will not cement itself to the pipe. • Dries slowly. • Can be applied by hand or pump. • Will not break down or separate after exposure to heat or cold. • Environmentally safe/non-hazardous. | | |
| | | LISTED | | |
| | | |
| | | Si fv Ol co fr. | | |
| | | |
| | | CAT. NO. UPC NO. DESCRIPTION | | |
| | | |
| | | |
| | | GEL-Q 35211 Cable-Gel One Quart Squeeze Bottle (.95 l) GEL-1 35212 Cable-Gel One Gallon (3.79 l) GEL-5 35213 Cable-Gel 5 Gallons (18.93 l) GEL-55 35214 Cable-Gel 55 Gallons (208.18 l) | | |
| | | SPECIFICATIONS | | |
| | | |
| | | Weight | | GEL-Q - 2.3 lbs. (1 kg) GEL-1 - 8.5 lbs. (3.9 kg) GEL-5 - 45 lbs. (20.4 kg) GEL-55 - 498 lbs. (225.9 kg) 8,000 - 12,000 CPS 7.0 - 8.0 | | |
| | | |
| | | 1 I Ä 5 | | |
| | | |
| | | Viscosity PH Range | | |
| | | |
| | | |
| | | |
| | | is f So S£S co c\ oo oo | | |
| | | Fiber-Gel™ Cable Pulling Lubricant | | |
| | | |
| | | • Compatible with all cable jackets. • Cleans up easily. • Environmentally safe. • Operating range from 32° - 190° F (0°C - 88°C). • Compatible with pre-lubricated innerducts. • Dries slowly and leaves a long-lasting lubricating film. | | |
| | | |
| | | 5 | | |
| | | |
| | | |
| | | CAT. NO. UPC NO. DESCRIPTION FIBR-Q 02040 Fiber-Gel One Quart Squeeze Bottle (.95 l) FIBR-1 02041 Fiber-Gel One Gallon (3.79 l) FIBR-5 02045 Fiber-Gel 5 Gallons(18.93 l) | | |
| | | £2 SS oo oo | | |
| | | |
| | | SPECIFICATIONS | | |
| | | |
| | | |
| | | Weight | | |
| | | FIBR-Q - 2.3 lbs. (1 kg) FIBR-1 - 8.5 lbs. (3.9 kg) FIBR-5 - 45 lbs. (20.4 kg) 2,000 - 3,000 CPS 7.0 - 8.0 | | |
| | | i | | |
| | | |
| | | |
| | | Viscosity PH Range | | |
| | | |
| | | |
| | | G | | |
| | | 1= REPLACEMENT PART | | |
| | | = ACCESSORY | | |
| | | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
