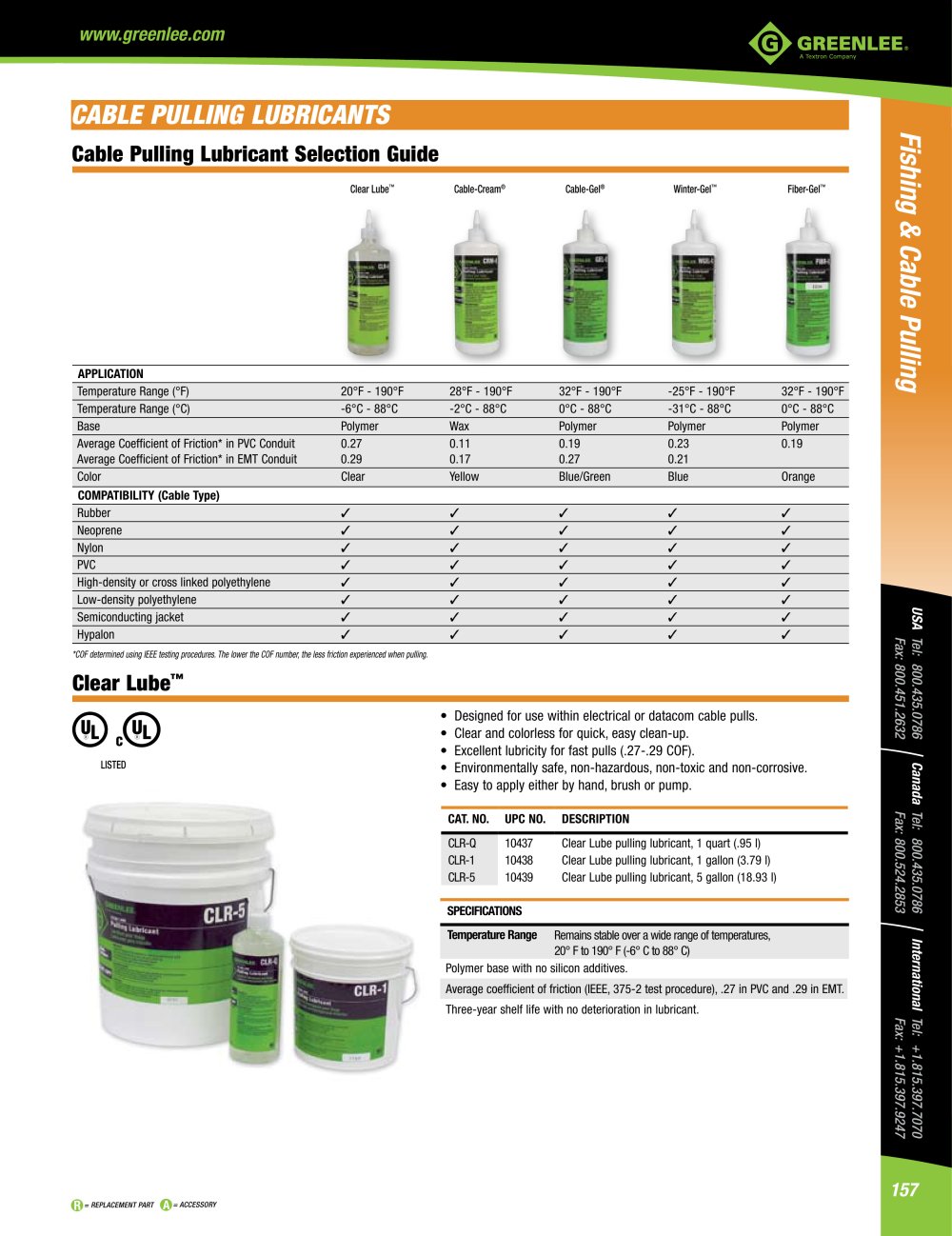

| | | Cable Pulling Lubricant Selection Guide | | |
| | | |
| | | | | |
| | | Clear Lube™ | | Cable-Cream® | | Cable-Gel® | | Winter-Gel™ | | Fiber-Gel™ | | |
| | | |
| | «sa | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | APPLICATION | | | | Temperature Range (°F) | 20°F - 190°F | 28°F - 190°F | 32°F - 190°F | -25°F - 190°F | 32°F - 190°F | | | | Temperature Range (°C) | -6°C - 88°C | -2°C - 88°C | 0°C - 88°C | -31°C - 88°C | 0°C - 88°C | | | | Base | Polymer | Wax | Polymer | Polymer | Polymer | | | | Average Coefficient of Friction* in PVC Conduit | 0.27 | 0.11 | 0.19 | 0.23 | 0.19 | | | | Average Coefficient of Friction* in EMT Conduit | 0.29 | 0.17 | 0.27 | 0.21 | | | | | Color | Clear | Yellow | Blue/Green | Blue | Orange | | | | COMPATIBILITY (Cable Type) | | | | Rubber | / | / | | / | | | | | Neoprene | / | / | / | / | / | | | | Nylon | / | / | / | / | / | | | | PVC | / | / | / | / | / | | | | High-density or cross linked polyethylene | / | / | / | / | / | | | | Low-density polyethylene | / | / | / | / | / | | | | Semiconducting jacket | / | / | / | / | / | | | | Hypalon | | | | | | | | | | | | | | | | | | |
| | | |
| | | *COF determined using IEEE testing procedures. The lower the COF number, the less friction experienced when pulling. | | |
| | | |
| | | Clear Lube™ | | |
| | | |
| | | Designed for use within electrical or datacom cable pulls. Clear and colorless for quick, easy clean-up. Excellent lubricity for fast pulls (.27-.29 COF). Environmentally safe, non-hazardous, non-toxic and non-c Easy to apply either by hand, brush or pump. | | |
| | | c LISTED | | |
| | | |
| | | d | | |
| | | |
| | | |
| | | CAT. NO. UPC NO. DESCRIPTION | | |
| | | |
| | | CLR-Q CLR-1 CLR-5 | | 10437 10438 10439 | | Clear Lube pulling lubricant, 1 quart (.95 l) Clear Lube pulling lubricant, 1 gallon (3.79 l) Clear Lube pulling lubricant, 5 gallon (18.93 l) | | |
| | | \3 Co Oo vi 3 6 Co CT) | | |
| | | |
| | | |
| | | SPECIFICATIONS | | |
| | | |
| | | |
| | | Temperature Range Remains stable over a wide range of temperatures, 20° F to 190° F (-6° C to 88° C) Polymer base with no silicon additives. Average coefficient of friction (IEEE, 375-2 test procedure), .27 in PVC and .29 in EMT. Three-year shelf life with no deterioration in lubricant. | | |
| | | t l | | |
| | | |
| | | |
| | | VI C3 | | |
| | | |
| | | 1= REPLACEMENT PART | | \=ACCESSORY | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
