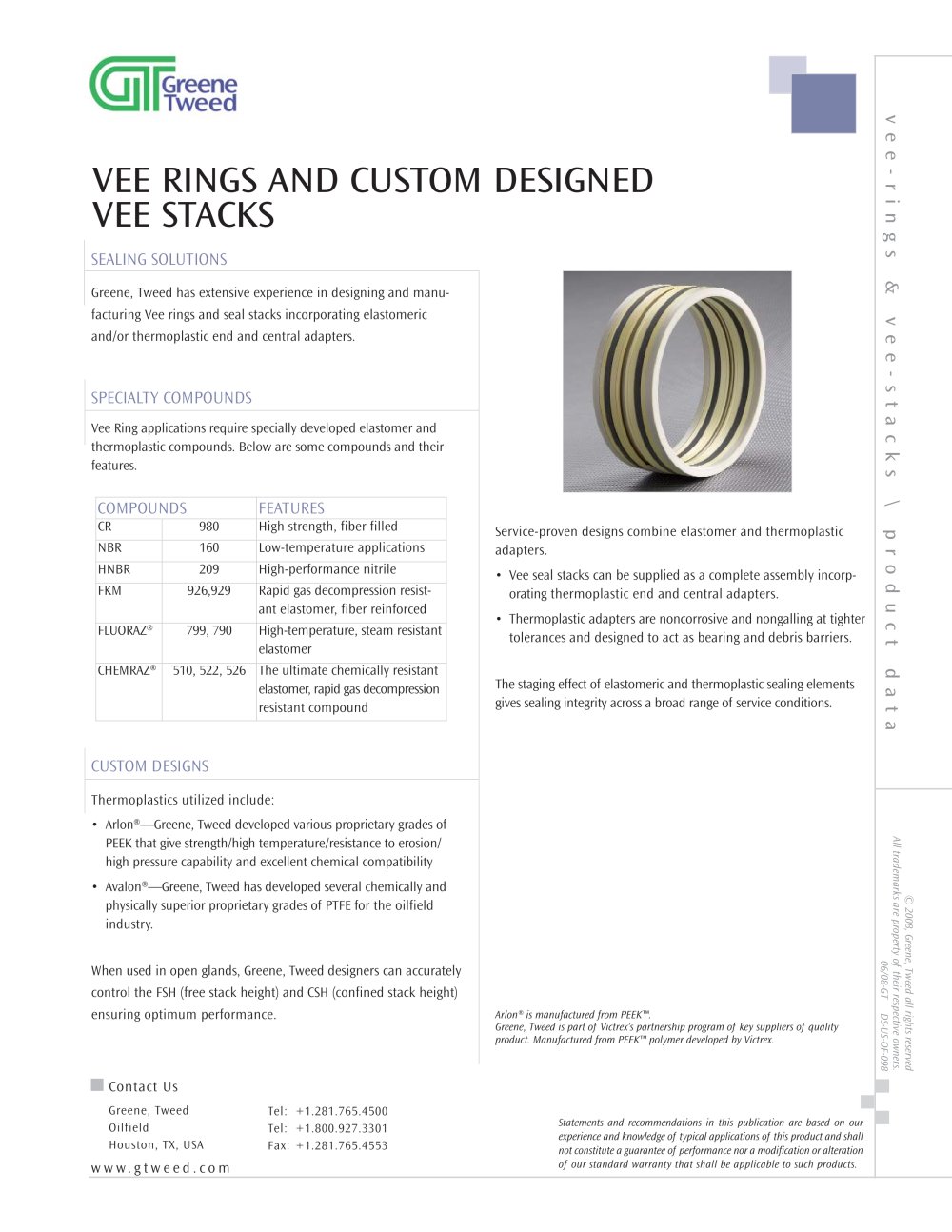

© 2008, Greene, Tweed all rights reserved All trademarks are property of their respective owners. 06/08-GT DS-US-OF-098 v e e - r i n g s & v e e - s t a c k s \ p r o d u c t d a t a Contact Us Greene, Tweed Oilfield Houston, TX, USA Tel: +1.281.765.4500 Tel: +1.800.927.3301 Fax: +1.281.765.4553 Statements and recommendations in this publication are based on our experience and knowledge of typical applications of this product and shall not constitute a guarantee of performance nor a modification or alteration www. g t w e e d . c o m of our standard warranty that shall be applicable to such products. VEE RINGS AND CUSTOM DESIGNED VEE STACKS SEALING SOLUTIONS Greene, Tweed has extensive experience in designing and manufacturing Vee rings and seal stacks incorporating elastomeric and/or thermoplastic end and central adapters. SPECIALTY COMPOUNDS Vee Ring applications require specially developed elastomer and thermoplastic compounds. Below are some compounds and their features. CUSTOM DESIGNS Thermoplastics utilized include: • Arlon®—Greene, Tweed developed various proprietary grades of PEEK that give strength/high temperature/resistance to erosion/ high pressure capability and excellent chemical compatibility • Avalon®—Greene, Tweed has developed several chemically and physically superior proprietary grades of PTFE for the oilfield industry. When used in open glands, Greene, Tweed designers can accurately control the FSH (free stack height) and CSH (confined stack height) ensuring optimum performance. Service-proven designs combine elastomer and thermoplastic adapters. • Vee seal stacks can be supplied as a complete assembly incorporating thermoplastic end and central adapters. • Thermoplastic adapters are noncorrosive and nongalling at tighter tolerances and designed to act as bearing and debris barriers. The staging effect of elastomeric and thermoplastic sealing elements gives sealing integrity across a broad range of service conditions. Arlon® is manufactured from PEEK™. Greene, Tweed is part of Victrex’s partnership program of key suppliers of quality product. Manufactured from PEEK™ polymer developed by Victrex. COMPOUNDS FEATURES CR 980 High strength, fiber filled NBR 160 Low-temperature applications HNBR 209 High-performance nitrile FKM 926,929 Rapid gas decompression resistant elastomer, fiber reinforced FLUORAZ® 799, 790 High-temperature, steam resistant elastomer CHEMRAZ® 510, 522, 526 The ultimate chemically resistant elastomer, rapid gas decompression resistant compound
