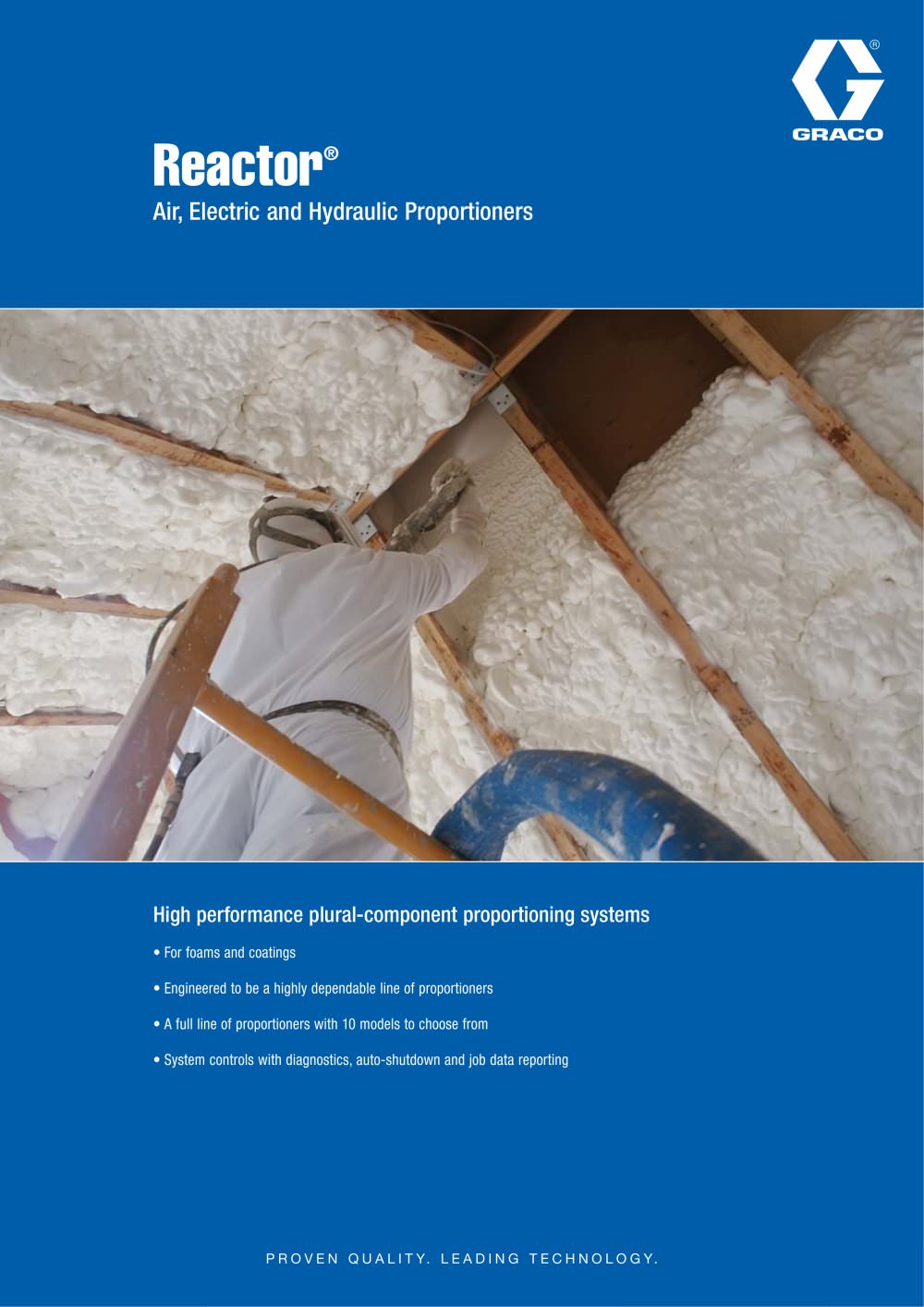

Reactor® Air, Electric and Hydraulic Proportioners High performance plural-component proportioning systems • For foams and coatings • Engineered to be a highly dependable line of proportioners • A full line of proportioners with 10 models to choose from • System controls with diagnostics, auto-shutdown and job data reporting P R O V E N Q U A L I T Y. L E A D I N G T E C H N O L O G Y.

Open the catalog to page 1

Increase your productivity with Reactor’s advanced features • Easy-to-use, easy-to-learn system controls reduce training time and increase productivity • Digital controls, system diagnostics and auto shutdown features prevent crossovers Maximize spray time • Fewer parts and modular design minimize costs and time spent on maintenance • Quick knock down fluid sections in the Reactor streamline maintenance and service • Fusion gun has fewer parts, is easy to clean and is proven a highly dependable gun 2 Optional Data Recording Record and compare actual temperatures and pressures of sprayed...

Open the catalog to page 2

3 Applications Polyurethane Foam • Wall insulation • Tank and pipe coating • Roof insulation • In-plant OEM • Rim and band joist Polyurea • Concrete joint filling • Potable water tanks • Truck bedliners • Adhesives and caulks • Marine and shipbuilding • Wastewater treatment • Secondary containment • Waterproofing From entry-level models to high-output systems, there’s a Reactor proportioning system that’s perfect for your specific application. Designed with the user in mind, the advanced features in the Reactor system provide the ultimate coating solution. A Complete Line of Reactor Systems...

Open the catalog to page 3

AIR-DRIVEN • Entry-level proportioning system • Low-output applications • Easy to use • Minimal system feedback for operator ELECTRIC • The most popular proportioning system • High value for great performance • Mid- to high-output applications • Provides operator with material data and system diagnostics for total control HYDRAULIC • Top of the line system for high-production professionals • Highest value for the greatest performance • High-output applications • Ideal for in-plant OEMs • Provides superior, uninterrupted performance • Provides operator with material data and system...

Open the catalog to page 4

5 Performance charts Use these charts to help identify the Reactor that will work most efficiently with each mix chamber. Flow rates are based on a material viscosity of 60 cps. See examples to the right of each chart. AW2222 AR6060 (03) AR7070 (04) AR8686 (05) AR5252 (02) AR4242 (01) AR2929 (00) E-10 E-20 H-25 H-40 A-20 E-30 138 (2000) 103 (1500) 69 (1000) 34 (500) 0 2.3 (5) 6.8 (15) 9.1 (20) 11.3 (25) 13.6 (30) 15.9 (35) 18.1 (40) 20.4 (45) 4.5 (10) E-10 E-20 A-20 H-25 E-30 H-40 241 (3500) 207 (3000) 172 (2500) 138 (2000) 103 (1500) 69 (1000) 34 (500) 0.0 1.9 (0.5) 5.7 (1.5) 3.8 (1.0) 7.6...

Open the catalog to page 5

Model Max Working Pressure Max Hose Length Output Air Consumption @ 7 bar Heater Wattage Weight Ordering Information Operation manual Repair manual 6 †Packages include 15m (50 ft) heated hose, 3m (10 ft) heated whip hose and Air-Purge Fusion Gun. * = measured at 60 Hz + = measured at 50 Hz REACTOR FOR FOAM Air-Driven (A-Series) Electric (E-Series) Hydraulic (H-Series) REACTOR E-20 138 bar (13,8 MPa,2000 psi) 64m (210 ft) 8.1 kg/min (18 lb/min) Does not apply 6,000 watts 155 kg With 6.0 kW heater: 48A–230V, 1-ph 259718 (Package†) 259025 (Bare) 32A–230V, 3-ph 259720 (Package†) 259034 (Bare)...

Open the catalog to page 6

7 * = measured at 60 Hz + = measured at 50 Hz †Package includes: 15m (50 ft) heated hose, 3m (10 ft) heated whip hose and Air-Purge Fusion Gun. Model Max Working Pressure Max Hose Length Output Air Consumption @ 7 bar Heater Wattage Weight Ordering Information Operation manual Repair manual Electric (E-Series) Hydraulic (H-Series) REACTOR FOR COATINGS REACTOR E-XP1 172 bar (17.2 MPa, 2500 psi) 64 m (210 ft) 3.8 lpm (1.0 gpm) Does not apply 10,200 watts 155 kg With 10.2 kW heater: 69A–230V, 1-ph 259706 (Package†) 259024 (Bare) 43A–230V 3-ph 259708 (Package†) 259033 (Bare 24A–400V 3-ph 259707...

Open the catalog to page 7

Select a Reactor Choose from 10 models with air, electric, or hydraulic motors. KEY FEATURES: • Quick knock down fluid sections • Optional data reporting capabilities • Foam models rated at 138 bar (13.8 MPa, 2000 psi ) • Polyurea models rated up to 240 bar (24.0 MPa, 3500 psi) Select Heated Hoses Choose from pressure ratings of 138 or 240 bar, 13.8 or 24.0 MPa. (2000 psi or 3500 psi). Choose 3/8 “or 1/2” diameter Select Heated Whip Hose Choose from pressure ratings of 138 or 240 bar, 13.8 or 24.0 MPa. (2000 psi or 3500 psi) Choose 1/4 “or 3/8” diameter Select a Fusion Gun Choose either...

Open the catalog to page 8

FEATURES FUSION® AP FUSION MP Maximum output Minimum output Maximum fluid working pressure Purge method Applications 9 Applications Foam Insulation • Rim joists • Roof patching • Prep work • Window repair • High rise apartments Specifications and ordering information: page 10 Coatings • Small industrial jobs • Concrete joint filling and flooring applications • Small tank spraying using cold spray polyurea • Industrial maintenance Reactor E-10 – Compact and Portable Get smaller jobs done fast without sacrificing performance. Graco’s portable E-10 sprayers are ideal for plural-component...

Open the catalog to page 9

Specifications: Maximum working pressure . . . . . . . . 138 bar (13.8 MPa, 2000 psi) Max hose length . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33m (105 feet) Maximum output . . . . . . . . . . . . . . . . . . . . . 5.4 kg/min (12 lb/min) Heater power . . . . . . . . . . . 120V models: 850 W each; 1700 W total . . . . . . . . . . . . . . . . . . . . 230V models: 1000 W each; 2000 W total Tank capacity . . . . . . . . . . . . . . . . 26.5 liters (7 gal.) each (nominal) Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Heated: 72 kg . . . . . . . . ....
