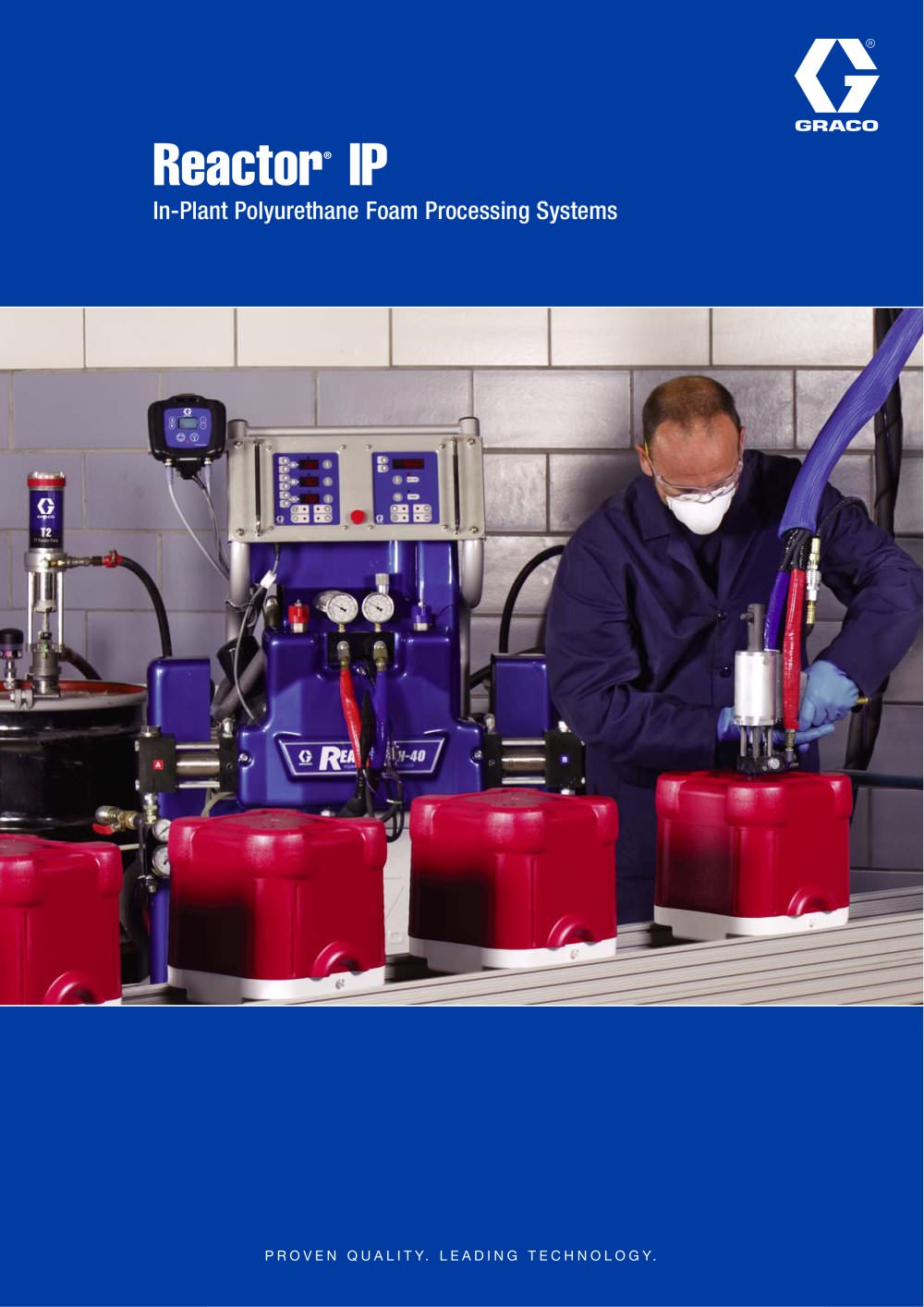

Reactor IP - 1

P R O V E N Q U A L I T Y. L E A D I N G T E C H N O L O G Y. Reactor® IP In-Plant Polyurethane Foam Processing Systems

Open the catalog to page 1
Reactor IP - 2

Depend on the Reactor IP for outstanding performance, accuracy and repeatability Take total control of your in-plant foam applications with the new Reactor IP proportioner from Graco. The Reactor IP is engineered for accuracy in pouring – with advanced controls and technologies for unparalleled performance. • Lets you program up to 25 different shot settings and five shot sequences • Accurately measures volume of the material poured, providing repeatable shot sizes, part after part • Available in two models, the Reactor IP offers flow rates of 11.3 and 22.6 kg/min • Easy clean-up – no gun...

Open the catalog to page 2
Reactor IP - 3

-3 Advanced controls Typical Applications Insulation for coolers and containers Pre-formed foam block for housing Picture frames Cabinets Solar panels Insulation for doors and windows Refrigerator panels Shutters Wall and floor panels Heater tanks Surf boards Pipe insulation Arrow Keys For easy screen navigation and numerical entry Soft Keys For setup and programming Dispense Button For remote dispensing capabilities Mode Button Choose between three modes: shot size, sequence or manual mode Local control module for precise dispensing Reactor Data Reporting Kit Optional Data Recorder •...

Open the catalog to page 3
Reactor IP - 4

Select a Reactor IP Choose from the Reactor IPH-40, or the Reactor IPH-25 (both hydraulic motors). KEY FEATURES: • Quick knock down fluid sections • Optional data reporting capabilities • Foam models rated at 138 bar (2000 psi, 13.8 MPa) • Optional pump sizes available for different ratios Select heated hose Pressure rating of 138 bar (2000 psi, 13.8 MPa). Choose 6.4 mm (1/4 in), 9.5 mm (3/8 in) ID, or 12.7 mm (1/2 in). Select heated whip hose Pressure rating of 138 bar (2000 psi, 13.8 MPa). Choose 6.4 mm (1/4 in), 9.5 mm (3/8 in) ID, or 12.7 mm (1/2 in). Select a pour gun AR-C Gun: • Good...

Open the catalog to page 4
Reactor IP - 5

Technical Specifications Ordering Information * Package includes 7.6 m (25 ft) heated hose, 3 m (10 ft) heated whip hose and AR Gun. ac * Measured at 60 Hz + Measured at 50 Hz REACTOR IP FOR IN-PLANT FOAM APPLICATIONS 5 Hydraulic (H-Series) 1 Model Max Working Pressure Max Hose Length Output Heater Wattage Max Ambient Temperature Max Fluid Temperature Weight Dimensions (H x W x D) Ordering Information Operation manual Repair manual REACTOR IPH-25 140 bar (2000 psi, 14 MPa) 94 m (310 ft) 11.3 kg/min (25 lb/min)* 9,5 kg/min (21Ibs/min)+ 8000 watts 49°C (120°F) 88°C (120°F) 243 kg 140 x 101 x...

Open the catalog to page 5
Reactor IP - 6

247827 Heater control module 247828 A, B, hose heater power module 247838 Modular heater control to retrofit electric/hydraulic units 255149 Circulation valve – ISO only 255150 Circulation valve – resin only 255148 Circulation valve kit – includes ISO and resin circulation valves, Fusion® grease and grease gun 24A024 Conversion kit, local control module for Reactor H-40 and H-25 Includes local control module, linear transducer, electrical control box, brackets, data cable, power cable, gun cable and miscellaneous hardware 24A025 Conversion kit, local control module for Reactor H-20/35...

Open the catalog to page 6
Reactor IP - 7

7 AR Pour Guns 255828 AR-C (250) pour gun Includes gun, toolkit, impingers, tip and coupling block 255827 AR-C (250) pour gun Does not include coupling block, tip or impingers 24A023 Conversion kit Converts AR-C (250) to AR-D (375) 312888 AR pour gun manual AR Pour Gun Accessories 253728 AR Gun toolkit 299973 Tip, AR-C 299972 Tip, AR-D 285771 Coupling block, AR-C and AR-D AR Gun Impinger Options 299974 Front impinger C size, 23-B-1 style, orifice area factor 900 299975 Front impinger C size, 33-B-1 style, orifice area factor 1200 299976 Front impinger C size, 33-C-1 style, orifice area...

Open the catalog to page 7
Reactor IP - 8

Founded in 1926, Graco is a world leader in fluid handling systems and components. Graco products move, measure, control, dispense and apply a wide range of fluids and viscous materials used in vehicle lubrication, commercial and industrial settings. The company’s success is based on its unwavering commitment to technical excellence, world-class manufacturing and unparalleled customer service. Working closely with qualified distributors, Graco offers systems, products and technology that set the quality standard in a wide range of fluid handling solutions. Graco provides equipment for spray...

Open the catalog to page 8
