ProMix™ 2KS Two-Component Electronic Proportioning System

Catalog excerpts

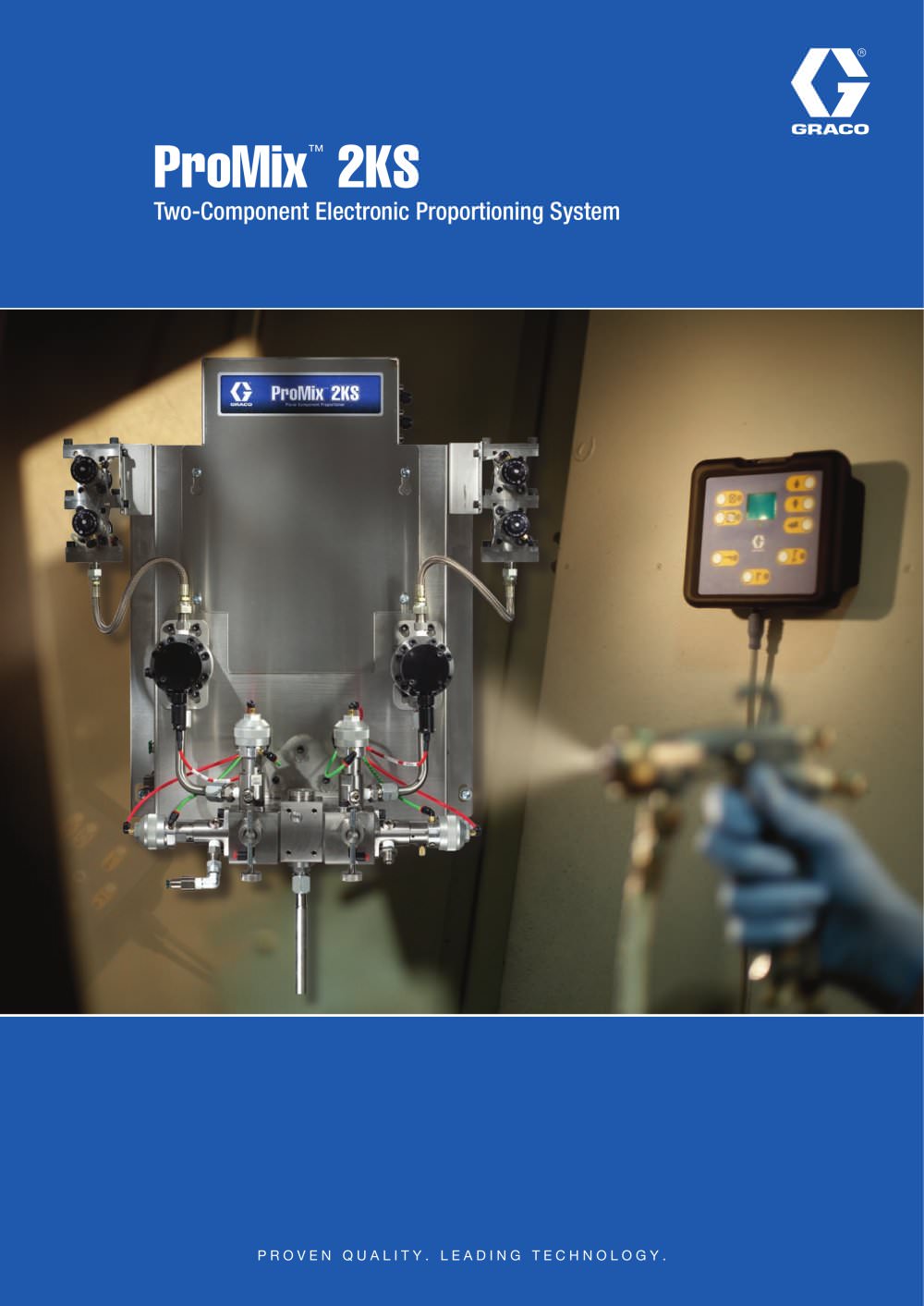

Two-Component Electronic Proportioning System ProMix™ 2KS P r o v e n Q u a l i t y . L e a d i n g T e c h n o l o g y .

 Open the catalog to page 1

Increase Efficiency and Productivity! Introducing Graco’s new line of electronic proportioners! ProMix® 2KS offers precise and reliable electronic proportioning for a broad range of solventborne, waterborne, and acid catalyzed materials. From entry level to upgraded applications, the ProMix 2KS provides flexibility and increased efficiency. With outstanding performance in one easy-to-use design, let ProMix 2KS enhance your finishing operation today. Features • Manual and automatic configurations • Intrinsically safe fluid panels allow for integration into hazardous areas • Single- or...

 Open the catalog to page 2

1 2 3 Three Systems in One Manual Wall Panel Manual systems benefit from an additional Remote Operator Station that allows fingertip control inside the spray booth. Automatic Wall Panel Optional flow control is cleanly integrated without incorporating a mixed material line meter. Pressure and flow loops provide fast step changes with superior closed loop control. Automatic RoboMix Panel This fluid panel can be easily integrated near the spray gun for a shorter mixed material line, faster colour changes and less waste. Also available with flow control. ProMix 2KS is available in a variety of...

 Open the catalog to page 3

EasyKey™ Display Network multiple ProMix 2KS systems to a single EasyKey with display EasyKey without Display Large LCD Display Left/Right Screen Toggle Up/Down Screen Toggle Independent Keypad Enclosure Access Key Lock Password Protected System Set-Up EasyKey with Display Graco’s EasyKey user interface offers simple navigation, multiple language capabilities and a high degree of reliability. The large LCD display screen is simple to read and operate during machine set up and process monitoring. The independent touch pad keeps contaminants off the screen while the large keys allow for easy...

 Open the catalog to page 4

Remote Operator Station Convenient Control The remote operator station can be mounted inside the spray booth or near the operator for quicker response times. The station offers easy-to-use controls for mixing, standby, purging, reading/clearing alarms, inputting job complete and recipe select functions. Perform all proportioning functions without leaving the spray booth. Alarm Clear Job Complete Recipe and Alarm Code Indicator Mix Standby Purge Enter Recipe Select Detachable Wall Bracket 5

 Open the catalog to page 5

Wall & RoboMix Fluid Panel Features Productive Panels Intrinsically safe fluid panels offer increased proportioning and flushing functionality, resulting in improved process performance. Versatile Dosing Multiple sequential dose sizes allow the system to meet a broad range of applications without sacrificing performance and quality. Dynamic dosing provides additional proportioning technology to meet unique applications needs. On-Ratio Performance Volume based dosing provides exceptional ratio accuracy across varying flow rates or gun triggering conditions. On-the-fly monitoring and...

 Open the catalog to page 6

1 1 4 5 2 2 3 3 Integration Chamber (25 cc shown) Accommodate a wide range of hardware to support multiple dose size options. Optimizes fluid manifold for particular application needs. Fluid Porting Compact, low volume design with no material dead spots, provide faster flushing time and less waste. 50 cc Integrator 10 cc Integrator Dynamic Dosing 1 2 3 4 Shutoff and Sample Valves 5 Ensure accurate volume measurements for meter calibrations and ratio checks with positive shutoff and convenient sampling. Dispense Valves Remove high speed cartridge style valves without disconnecting fluid...

 Open the catalog to page 7

Complete Your System! Today’s demanding applications require more than just precise and reliable proportioning from a ProMix 2KS. Graco offers a variety of flow meter technologies and accessories that will further enhance your finishing operation. Regulator Module Flow Meters • Complete line of spur gear, helical gear, and non-intrusive Coriolis meters • Supports a broad range of material types and physical characteristics Intrinsically Safe Colour and Catalyst Change Module • Provides easy and flexible installation without running long pneumatic lines • Accommodates future colour and...

 Open the catalog to page 8

M Manual X Interface *Order additional low pressure valves or other high pressure valve configurations as kits (see accessories) X A & B Meter X Colour Valves X Catalyst Valves X Applicator Handling M Interface D = EasyKey with LCD Display E = Multi Fluid Station Control Box, No LCD Display A & B Meter 0 = No Meter 1 = G3000 A & B 2 = G3000HR A & B 3 = 1/8” Coriolis A & G3000 B 4 = G3000 A & 1/8” Coriolis B 5 = 1/8” Coriolis A & G3000HR B 6 = G3000HR A & 1/8” Coriolis B 7 = 1/8” Coriolis A & 1/8” Coriolis B Colour Valves* 0 = No Valves (Single Color) 1 = 2 Colours LP 2 = 4 Colours LP 3 = 7...

 Open the catalog to page 10

Meter Kits Contains one flow meter, cable, and hardware 15V804 G3000 Flow Meter 15V827 G3000HR Flow Meter 15V820 HG6000 Flow Meter 15V806 1/8" Coriolis Flow Meter 258151 3/8" Coriolis Flow Meter 15V807 S3000 (Solvent) Flow Meter Low Pressure Colour Change Kits Contains colour valves and solenoid control module 256581 2 Colour 256582 4 Colour 256583 7 Colour 256584 12 Colour 256585 2 Colour and 2 Catalyst 256586 4 Colour and 2 Catalyst 256587 4 Colour and 4 Catalyst 256588 7 Colour and 2 Catalyst 256589 7 Colour and 4 Catalyst 256590 12 Colour and 2 Catalyst 256591 12 Colour and 4 Catalyst...

 Open the catalog to page 11

Founded in 1926, Graco is a world leader in fluid handling systems and components. Graco products move, measure, control, dispense and apply a wide range of fluids and viscous materials used in vehicle lubrication, commercial and industrial settings. The company’s success is based on its unwavering commitment to technical excellence, world-class manufacturing and unparalleled customer service. Working closely with qualified distributors, Graco offers systems, products and technology that set the quality standard in a wide range of fluid handling solutions. Graco provides equipment for spray...

 Open the catalog to page 12
