Process Equipment
12Pages

{{requestButtons}}

Catalog excerpts

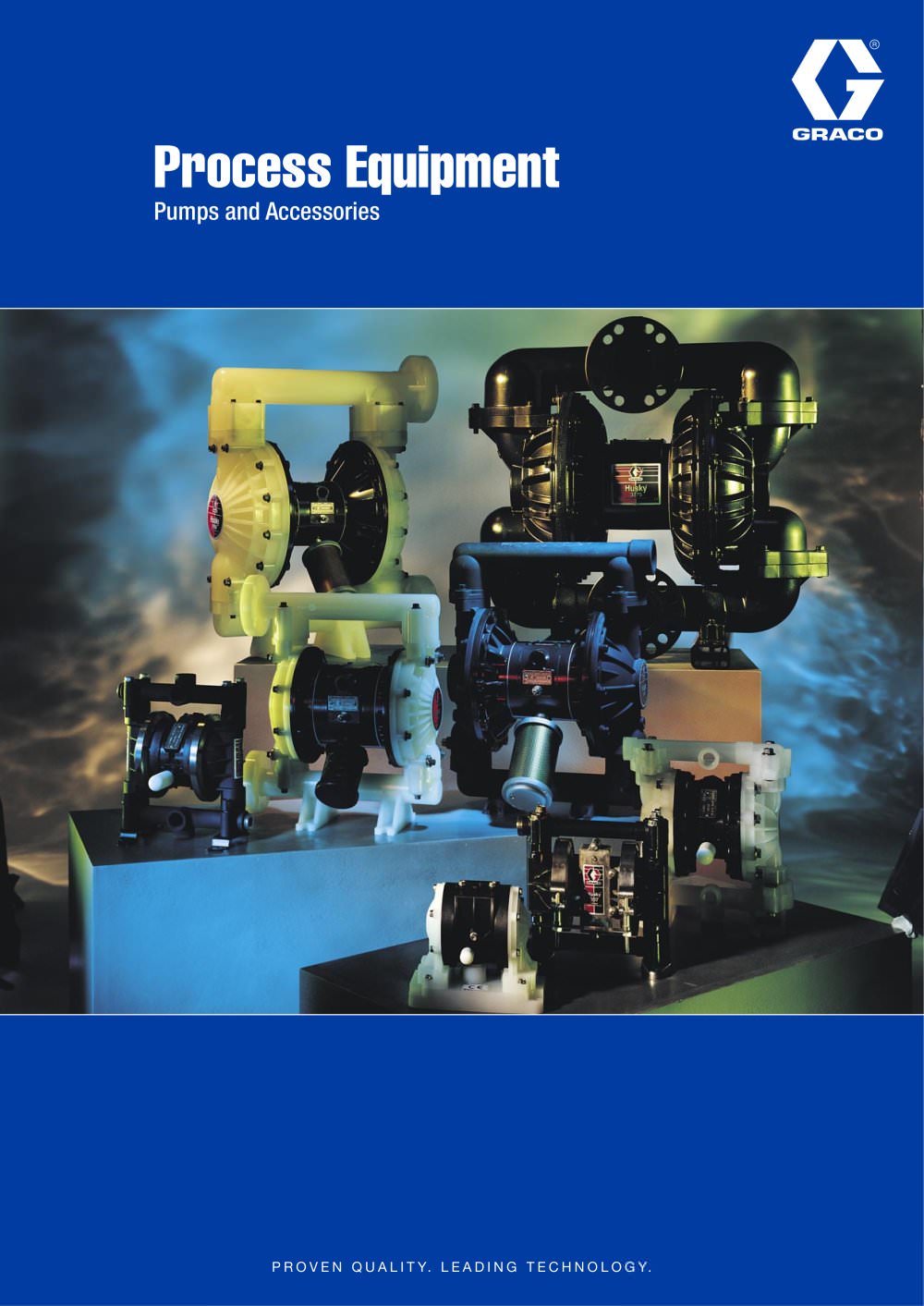

Process Equipment - 1

PROVEN QUALITY. L E A D I N G T E C H N O L O G Y. Process Equipment Pumps and Accessories

Open the catalog to page 1
Process Equipment - 2

Transfer Pumps and Packages Air-Operated Double-Diaphragm Pump Features • Quick priming and immediate flow of product • Handles fluid viscosities up to 5,000 cps and solids up to 0.09 in. (2.29 mm) • Runs dry without damage • Provides air-tight seal for moisture-sensitive fluids • Easy-out seal provides fast slide in and out of drums (through bung adapter) without disconnecting hoses • Easy-out seal accommodates slightly off-sized drums up to 2-1/2 in. (63.5 mm) • Pump is never immersed inside the drum (only the suction tube is immersed) • Excellent for abrasive, low-to-medium viscosity...

Open the catalog to page 2
Process Equipment - 3

The Quality & Simplicity Inside! Easy Maintenance •Low internal volume reduces waste and makes clean-up easy. •Stainless steel bolts resist corrosion and provide positive positioning for easy reassembly. Unique, Patented Air Valves •Three-way Pilot Valve for non-sticking operation. •All parts are replaceable without opening wet body parts. •Aluminium parts are anodized or epoxy-coated to resist corrosion usually caused by dirty air. •No air-line lubrication required. Precision-Fitted Parts •Long-wearing End-Bearings assure positive rod alignment and are easily replaced. Protective Exhaust...

Open the catalog to page 3
Process Equipment - 4

Air-Operated Double-Diaphragm Pumps Model (bspt ports available) Maximum Flow Rate* Materials of Construction Available 1/4 in. (6.35 mm) ports Standard or remote air valve 3/8 in. (9.4 mm) ports 1/2 in. (12.7 mm) middle ports; 3/4 in. (19.05 mm) end ports Standard or remote air valve 3/4 in. (19.05 mm) ports Standard or remote air valve 1 in. (25.4 mm) ports Standard or remote air valve 19 l/min. 26 l/min. 57 l/min. 61 l/min. 151 l/min. Polypropylene, Groundable Acetal, Kynar (PVDF) Groundable Acetal, Polypropylene Polypropylene, Groundable Acetal, Kynar (PVDF) Aluminium, 316 SST...

Open the catalog to page 4
Process Equipment - 5

Typical Process System Diagram Air Compressor • Twistork™ (shown) • Bare Back-Geared Agitator • 200 Liter Drum Siphon Kits Leak detector Air Regulator Air Filter (not shown) • Surge Suppressor (shown) • Bag Filters Application Dispense Systems: • Paint/solvent transfer • Chemical transfer • Wastewater/pH control • Batching/dosing Flange kits Husky™ 1040 (shown) Air Fluid Exhaust Key Equipment and accessories not shown to scale. Muffler (standard with all models) 5

Open the catalog to page 5
Process Equipment - 6

Bolted Design The standard bolted design of Husky pumps guarantees efficiency and safety. Husky pumps are easy-to-service and virtually leak-free. Air Valve Husky™ air-operated double-diaphragm pumps feature simple, extremely reliable air valve designs that make the Husky line among the most dependable pumps in a variety of applications. • Three-way pilot valve for non-sticking operation and minimal air leakage • All parts replaceable without opening wetted body parts • Anodized or epoxy-coated aluminium parts resist corrosion from dirty air • Fewer moving parts than most other...

Open the catalog to page 6
Process Equipment - 7

Technical Specifications Air-Operated Double-Diaphragm & Transfer Pumps Popular Models PART NO. WETTED PARTS SEATS BALLS/CHECKS DIAPHRAGMS Husky™ 205 : 1/4 in. (6.35 mm) ports D12091 Polypropylene None Polypropylene PTFE D11021 Acetal None Acetal PTFE D150A1 Kynar (PVDF) None Kynar PTFE Husky 307 : 3/8 in. (9.52 mm) ports D3A211 Acetal Acetal PTFE PTFE D3A331 Acetal SST SST PTFE D3A277 Acetal Acetal Buna-N Buna-N D3A255 Acetal Acetal Hytrel Hytrel D3B966 Polypropylene Polypropylene Santoprene Santoprene Husky 515 : 1/2 in. (12.7 mm) middle ports; 3/4 in. (19.05 mm) end ports D5B911...

Open the catalog to page 7
Process Equipment - 8

Ordering Information Acetal Material used for seats, balls & wetted body parts • Wide range of solvent resistance • Withstands extreme fatigue • Good level of abrasion-resistance • Groundable for use with flammables • Not for acids or bases Aluminium Material used for air motor & wetted body parts • Medium corrosion and abrasion resistance • Not for use with HHC’s Hardened Stainless Steel Material used for seats & balls • Moderate chemical resistance • Good abrasion resistance Kynar Material used for wetted body parts & seats • Strong chemical resistance: acids and bases • Good abrasion...

Open the catalog to page 8
Process Equipment - 9

Ordering Information Seats:Balls:Diaphragms xxx 211 Acetal:PTFE:PTFE Low solids paints, stains and lacquers; flammable solvents - use with aluminum, SST or goundable acetal housings xxx 331 Stainless Steel:Stainless Steel:PTFE Medium pH-range acids and bases that contain abrasive material - filter press; corrosive sludges xxx 311 Stainless Steel:PTFE:PTFE Wide pH-range acids, bases and neutral fluids that contain solids xxx 525 Hytrel:Acetal:Hytrel General purpose - water; oil; windshield wash fluids xxx GGG Geolast:Geolast:Geolast Neutral pH-range fluids that contain abrasive material -...

Open the catalog to page 9
Process Equipment - 10

Description Part No. Air Control Assembly (includes filter, lubricator, regulator, gauge, mounting bracket and fittings) 1/4 in. (6.35 mm) air inlet (fits 307 and 716) 110149 1/2 in. (12.7 mm) air inlet (fits 1040, 1590, 2150) 217072 3/4 in. (19.05 mm) air inlet (fits 3275) 217073 Air Filters (centrifugal action and 40 micron filter) 1/4 npt(fbe) 110146 1/2 npt(fbe) 106149 3/4 npt(fbe) 106150 Air Regulators 1/4 npt(fbe) 110318 1/2 npt(fbe) 104266 3/4 npt(fbe) 207755 Companion Flange Kits (includes PTFE gaskets and fasteners) 1 in. (25.4 mm) Polypropylene for 1040 (1 in. ANSI with 1 npt(f))...

Open the catalog to page 10
Process Equipment - 12

Founded in 1926, Graco is a world leader in fluid handling systems and components. Graco products move, measure, control, dispense and apply a wide range of fluids and viscous materials used in vehicle lubrication, commercial and industrial settings. The company’s success is based on its unwavering commitment to technical excellence, world-class manufacturing and unparalleled customer service. Working closely with qualified distributors, Graco offers systems, products and technology that set the quality standard in a wide range of fluid handling solutions. Graco provides equipment for spray...

Open the catalog to page 12
