High-Flo

Catalog excerpts

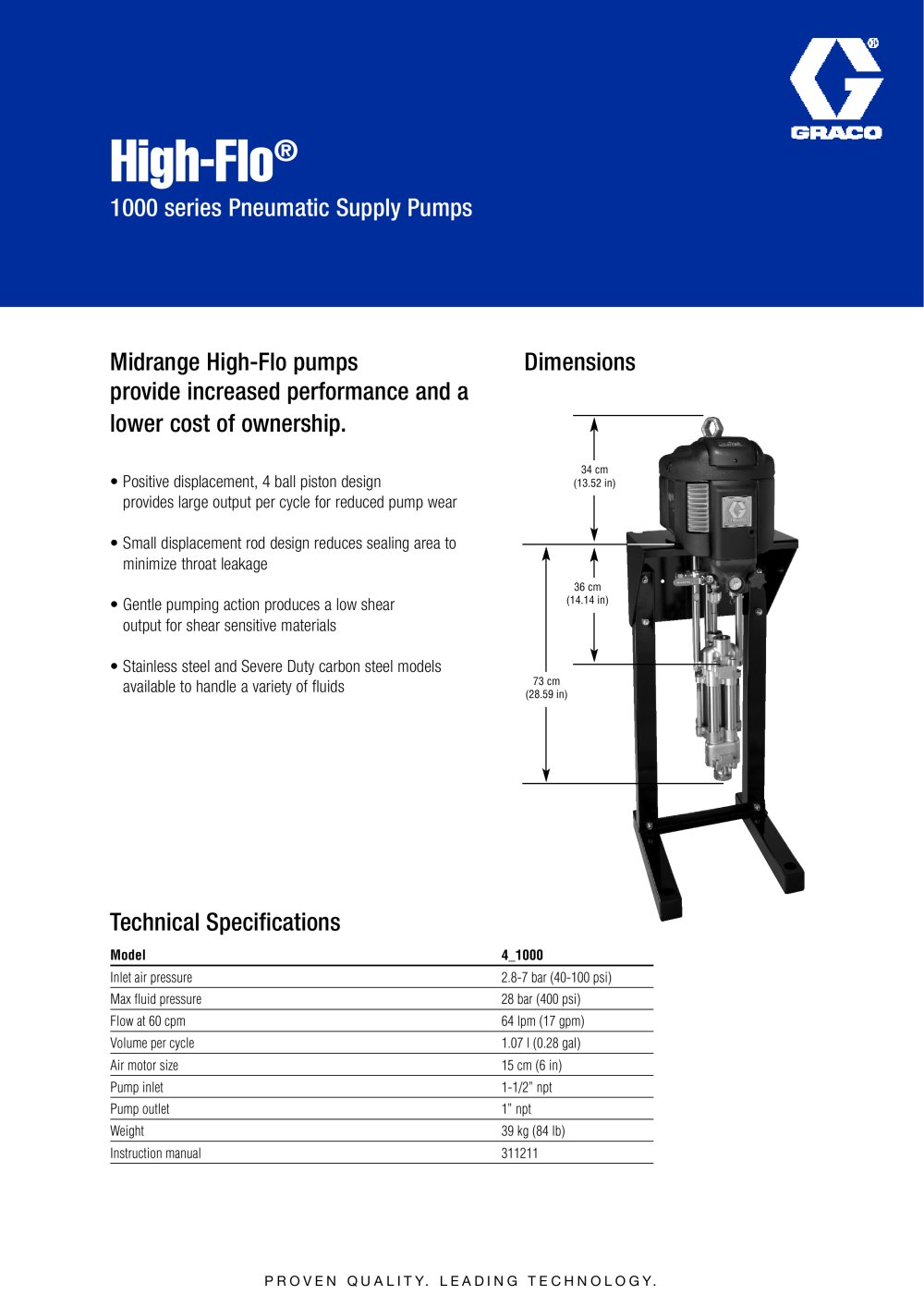

Dimensions 34 cm (13.52 in) 36 cm (14.14 in) 73 cm (28.59 in) Technical Specifications Model 4_1000 Inlet air pressure 2.8-7 bar (40-100 psi) Max fluid pressure 28 bar (400 psi) Flow at 60 cpm 64 lpm (17 gpm) Volume per cycle 1.07 l (0.28 gal) Air motor size 15 cm (6 in) Pump inlet 1-1/2” npt Pump outlet 1” npt Weight 39 kg (84 lb) Instruction manual 311211 Midrange High-Flo pumps provide increased performance and a lower cost of ownership. • Positive displacement, 4 ball piston design provides large output per cycle for reduced pump wear • Small displacement rod design reduces sealing area to minimize throat leakage • Gentle pumping action produces a low shear output for shear sensitive materials • Stainless steel and Severe Duty carbon steel models available to handle a variety of fluids P R O V E N Q U A L I T Y. L E A D I N G T E C H N O L O G Y. High-Flo® 1000 series Pneumatic Supply Pumps

 Open the catalog to page 1

Standard Kits 277360 UHMWPE piston seal kit 277357 UHMWPE/Leather throat seal kit 15H280 Chromex piston rod 15H589 Maxlife piston rod 183047 Chrome cylinder 15H452 Maxlife cylinder 183032 Nitride cylinder (CS) Optional Kits 277361 PTFE piston seal kit 239866 PTFE throat seal kit 277356 Leather throat seal kit Accessories NXT011 Integrated air control 255143 Wall mount bracket kit 253692 Floor stand 253679 Wall mount bracket 247312 Wall mount and floor stand adapter for 2200 motor 110335 Packing wrench 261721 Wet cup booster cup Ordering Information High Flo 1000’s J First Digit X Material...

 Open the catalog to page 2
