VIC / VIS / VIT Goulds Vertical Turbine Pumps - 20 Pages

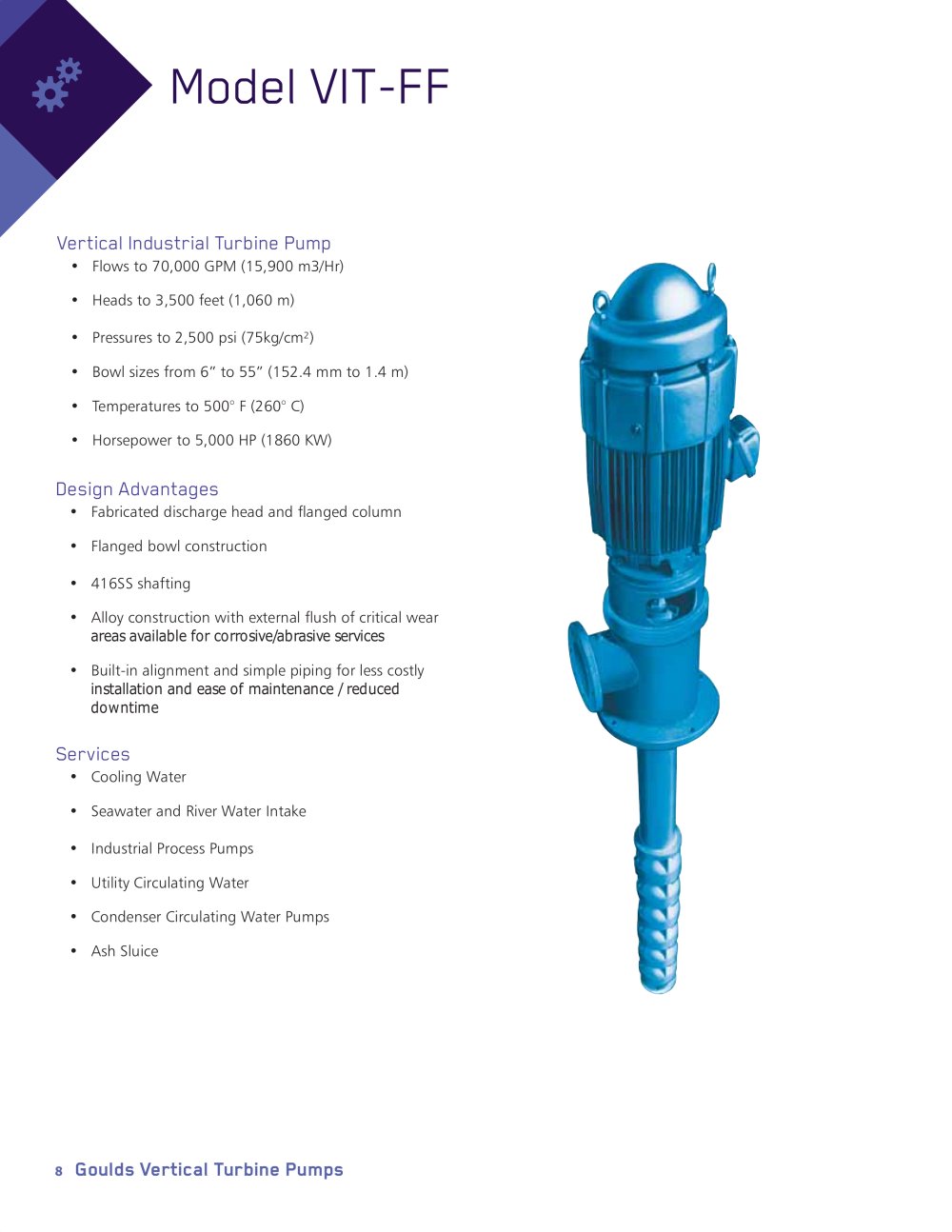

V Model VIT-FF

Vertical Industrial Turbine Pump

• Flows to 70,000 GPM (1 5,900 m3/Hr)

• Heads to 3,500 feet (1,060 m)

• Pressures to 2,500 psi (75kg/cm2)

• Bowl sizes from 6" to 55" (1 52.4 mm to 1.4 m)

• Temperatures to 500° F (260° C)

• Horsepower to 5,000 HP (1860 KW)

Design Advantages

• Fabricated discharge head and flanged column

• Flanged bowl construction

• 416SS shafting

• Alloy construction with external flush of critical wear

• Built-in alignment and simple piping for less costly

Services

• Cooling Water

• Seawater and River Water Intake

• Industrial Process Pumps

• Utility Circulating Water

• Condenser Circulating Water Pumps

• Ash Sluice

Goulds Vertical Turbine Pumps

VIC / VIS / VIT Goulds Vertical Turbine Pumps
  1. P. 1

  2. P. 3

    Goulds Vertical Turbine Pumpsev vPump Bowl AssemblyThe bowl assembly is the heart of the vertical turbinepump. The impeller and diffuser type casing are...
  3. P. 4

    Pump Bowl Assembly OptionsChoice of Semi-Open or Enclosed ImpellersStrainersAvailable in alloy construction for a wide range ofcorrosive/abrasive services.Basket...
  4. P. 5

    Flanged ColumnColumn sections are provided with flanged ends incorporating registered fits for ease of alignment during assembly.Facilitates disassembly...
  5. P. 6

    Goulds Vertical Turbine PumpsCoupling ArrangementsRIGID FLANGED COUPLING(Type AR)To couple pump to vertical hollowon top of motor.ADJUSTABLE COUPLING (Type...
  6. P. 7

    Sealing Flexibilityev vPacked Box With SleeveOpen LineshaftWhenever packing lubricationleakage can be tolerated and thedischarge pressure does notexceed...
  7. P. 8

  8. P. 9

    Cross SectionalVIT-FF (Product Lube)TYPICAL MARKETS SERVEDVSS MotorMotor Key(Supplied By Motor Vendor)Hub - MotorRing - RetainingCapscrewMotor / SupportMotor...
  9. P. 10

    Cross SectionalVSS MotorVIT-FF (Enclosed Lineshaft)TYPICAL MARKETS SERVEDMotor Key(Supplied By Motor Vendor)Hub - MotorRing - RetainingCapscrewMotor /...
  10. P. 11

    Vertical Industrial Can-Type Pump • Flows to 70,000 GPM (4760 m3/Hr) • Heads to 3,500 feet (1,060 m) • Pressures to 2,500...
  11. P. 12

    Cross SectionalVSS MotorVIC-TTYPICAL MARKETS SERVEDMotor Key(Supplied By Motor Vendor)Hub - DriverRing - RetainingCapscrewMotor / SupportSoc HD Capscrew...
  12. P. 13

    Cross SectionalVIT-T (Per API-610 10th Edition)TYPICAL MARKETS SERVED(6.1.3) Motor horsepowermargin ( see table 11)(6.1.4) Motor design required toAPI...
