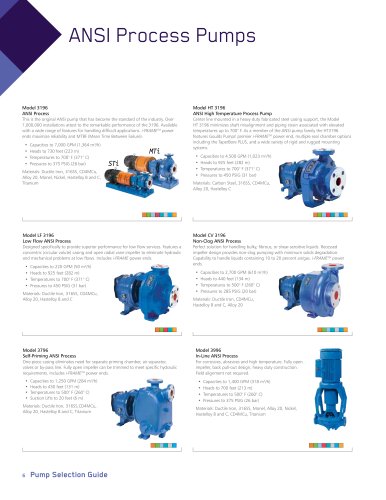

ANSI Process Pumps

Model 3196
ANSI Process

Model HT 3196
ANSI High Temperature Process Pump

This is the original ANSI pump that has become the standard of the industry. Over
1,000,000 installations attest to the remarkable performance of the 3196. Available
with a wide range of features for handling difficult applications. i-FRAMETM power
ends maximize reliability and MTBF (Mean Time Between Failure).

Center line mounted in a heavy duty fabricated steel casing support, the Model
HT 3196 minimizes shaft misalignment and piping strain associated with elevated
temperatures up to 700° F. As a member of the ANSI pump family the HT3196
features Goulds Pumps' premier i-FRAMETM power end, multiple seal chamber options
including the TaperBore PLUS, and a wide variety of rigid and rugged mounting
systems.




Capacities to 7,000 GPM (1,364 m³/h)
Heads to 730 feet (223 m)
Temperatures to 700° F (371° C)
Pressures to 375 PSIG (26 bar)

Materials: Ductile Iron, 316SS, CD4MCu,
Alloy 20, Monel, Nickel, Hastelloy B and C,
Titanium




Capacities to 4,500 GPM (1,023 m³/h)
Heads to 925 feet (282 m)
Temperatures to 700° F (371° C)
Pressures to 450 PSIG (31 bar)

Materials: Carbon Steel, 316SS, CD4MCu,
Alloy 20, Hastelloy C

Model LF 3196
Low Flow ANSI Process

Model CV 3196
Non-Clog ANSI Process

Designed specifically to provide superior performance for low flow services. Features a
concentric (circular volute) casing and open radial vane impeller to eliminate hydraulic
and mechanical problems at low flows. Includes i-FRAME power ends.

Perfect solution for handling bulky, fibrous, or shear-sensitive liquids. Recessed
impeller design provides non-clog pumping with minimum solids degradation.
Capability to handle liquids containing 10 to 20 percent air/gas. i-FRAMETM power
ends.




Capacities to 220 GPM (50 m³/h)
Heads to 925 feet (282 m)
Temperatures to 700° F (371° C)
Pressures to 450 PSIG (31 bar)

Materials: Ductile Iron, 316SS, CD4MCu,
Alloy 20, Hastelloy B and C




Capacities to 2,700 GPM (610 m³/h)
Heads to 440 feet (134 m)
Temperatures to 500° F (260° C)
Pressures to 285 PSIG (20 bar)

Materials: Ductile Iron, CD4MCu,
Hastelloy B and C, Alloy 20

Model 3796
Self-Priming ANSI Process

Model 3996
In-Line ANSI Process

One-piece casing eliminates need for separate priming chamber, air separator,
valves or by-pass line. Fully open impeller can be trimmed to meet specific hydraulic
requirements. Includes i-FRAMETM power ends.

For corrosives, abrasives and high temperature. Fully open
impeller, back pull-out design, heavy duty construction.
Field alignment not required.




Capacities to 1,250 GPM (284 m³/h)
Heads to 430 feet (131 m)
Temperatures to 500° F (260° C)
Suction Lifts to 20 feet (6 m)

Materials: Ductile Iron, 316SS,CD4MCu,
Alloy 20, Hastelloy B and C, Titanium

6

Pump Selection Guide




Capacities to 1,400 GPM (318 m³/h)
Heads to 700 feet (213 m)
Temperatures to 500° F (260° C)
Pressures to 375 PSIG (26 bar)

Materials: Ductile Iron, 316SS, Monel, Alloy 20, Nickel,
Hastelloy B and C, CD4MCu, Titanium
