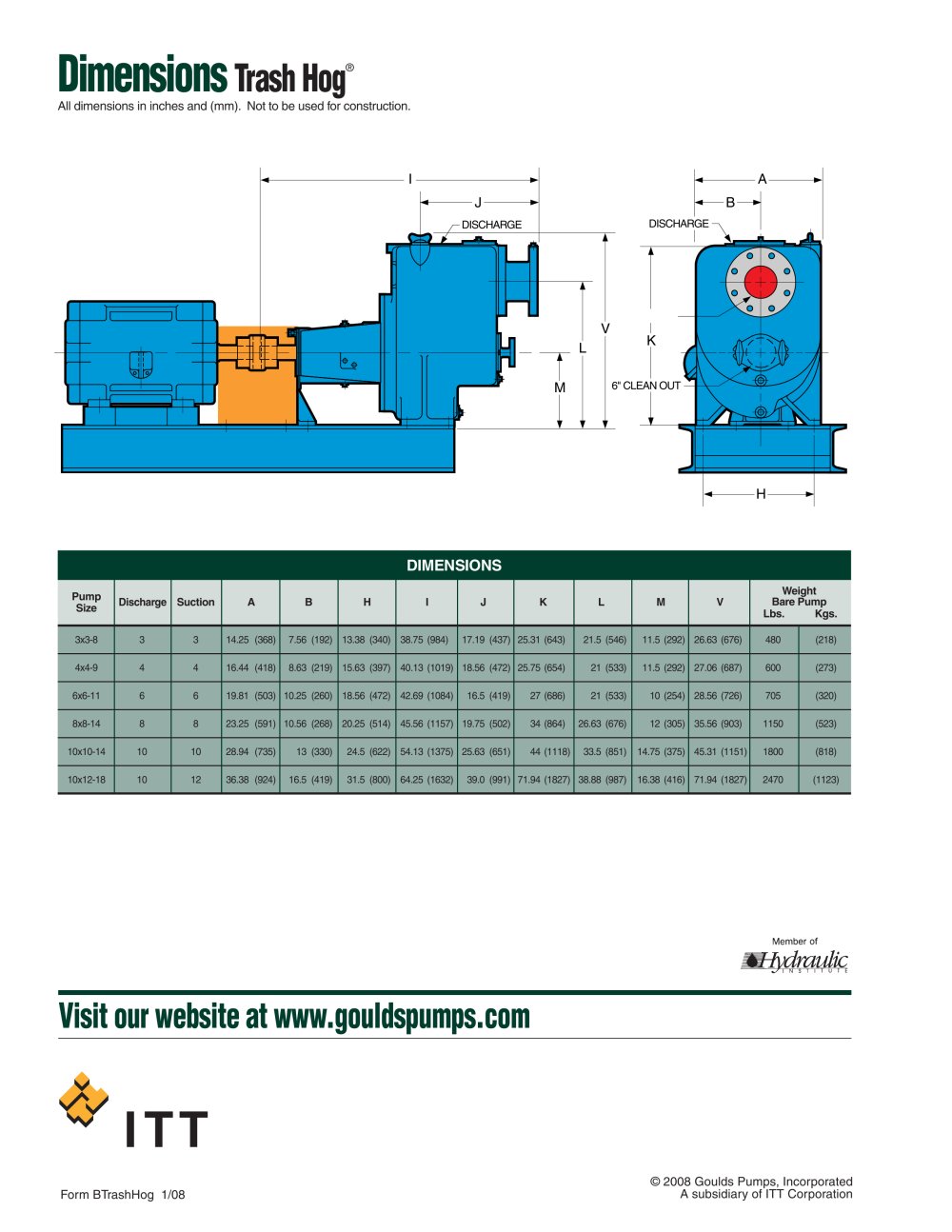

Dimensions Trash Hog® All dimensions in inches and (mm). Not to be used for construction. Pump Size Discharge Suction A B H I J 3x3-8 3 3 14.25 (368) 7.56 (192) 13.38 (340) 38.75 (984) 17.19 (437) 4x4-9 4 4 16.44 (418) 8.63 (219) 15.63 (397) 40.13 (1019) 18.56 (472) 6x6-11 6 6 19.81 (503) 10.25 (260) 18.56 (472) 42.69 (1084) 16.5 (419) 8x8-14 8 8 23.25 (591) 10.56 (268) 20.25 (514) 45.56 (1157) 19.75 (502) 10x10-14 10 10 28.94 (735) 13 (330) 24.5 (622) 54.13 (1375) 25.63 (651) 10x12-18 10 12 36.38 (924) 16.5 (419) 31.5 (800) 64.25 (1632) 39.0 (991) Weight K L M V Bare Pump Lbs. Kgs. 25.31 (643) 21.5 (546) 11.5 (292) 26.63 (676) 480 (218) 25.75 (654) 21 (533) 11.5 (292) 27.06 (687) 600 (273) 27 (686) 21 (533) 10 (254) 28.56 (726) 705 (320) 34 (864) 26.63 (676) 12 (305) 35.56 (903) 1150 (523) 44 (1118) 33.5 (851) 14.75 (375) 45.31 (1151) 1800 (818) 71.94 (1827) 38.88 (987) 16.38 (416) 71.94 (1827) 2470 (1123) DIMENSIONS DISCHARGE DISCHARGE B A H J I K M L V 6" CLEAN OUT Form BTrashHog 1/08 © 2008 Goulds Pumps, Incorporated A subsidiary of ITT Corporation Visit our website at www.gouldspumps.com
