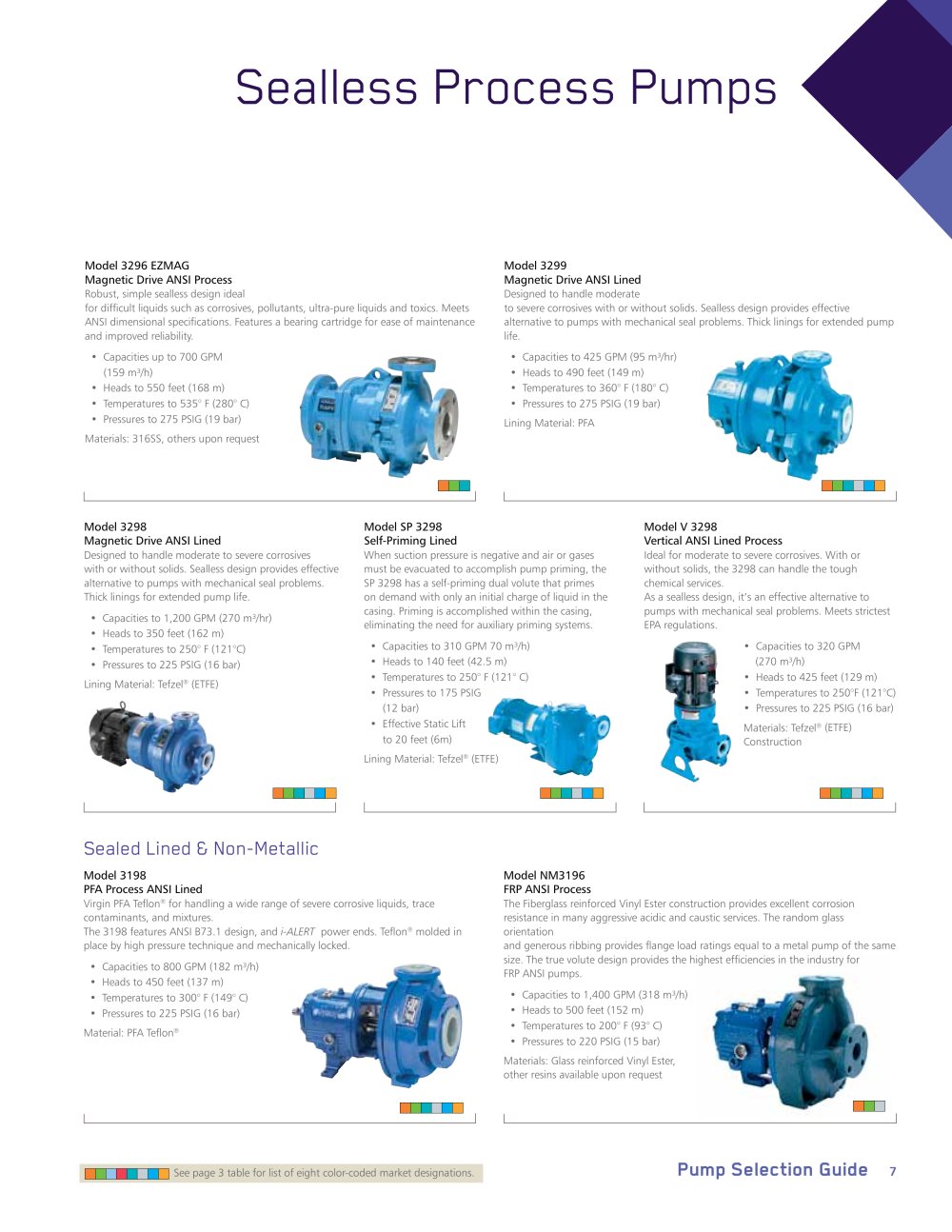

SEALLESS PROCESS PUMPS SEALLESS PROCESS PUMPS

Model SP 3298 Model 3298 Self-Priming Lined Magnetic Drive ANSI Lined

When suction pressure is negative and air or gases must beevacuated to accomplish pump priming, the SP 3298 has a self- priming dual volute that primes on demand with only an initial charge of liquid in the casing.Priming is accomplished within the casing, eliminating the need for auxiliary priming systems. Designed to handle moderate to severe corrosives with orwithout solids.Sealless design provides effective alternative to pumps with mechanical seal problems.Thick linings for extended pump life. Capacities to 1200 GPM (270 m
3 /hr) Capacities to 275 GPM (63 m
3 /h) Heads to 530 feet (162 m) Heads to 150 feet (46 m) Temperatures to 250°F (121°C) Temperatures to 250°F (121°C) Pressures to 225 PSIG (1551 kPa) Pressures to 175 PSIG (1207 kPa) Lining Material: Tefzel
® (ETFE) Effective Static Lift to 20 feet (6m) Lining Material: Tefzel
® (ETFE) 15 Sizes

Model 3296 EZMAG Model V 3298Model 3299 Magnetic Drive ANSI Process Vertical ANSI Lined Process Magnetic Drive ANSI Lined

Robust, simple sealless design idealfor difficult liquids, such as corrosives, pollutants, ultra-pure liquids and toxics. Meets ANSI dimensional specifications. Features a bearing cartridge for ease of maintenance and improved reliability. Ideal for moderate to severe corrosives.With or without solids, the 3298 can handle the tough chemical services.As a sealless design, it’s an effective alternative to pumps with mechanical seal problems.Meets strictest EPA regulations. Designed to handle moderate tosevere corrosives with or without solids.Sealless design provideseffective alternative to pumps with mechanical seal problems. Thick linings for extended pump life. Capacities up to 700 GPM (159 m
3 /h) Capacities to 425 GPM (95 m
3 /hr) Heads to 550 feet (168 m) Capacities to 320 GPM (270 m
3 /h) Heads to 490 feet (150 m) Temperatures to 536°F (280°C) Heads to 460 feet (129 m) Temperatures to 360°F (180°C) Pressures to 275 PSIG (1896 kPa) Temperatures to 250

°

F (121

°

C) Pressures to 275 PSIG (1896 kPa) Pressures to 225 PSIG (1551 kPa) Materials: 316SSOthers upon request Materials: Tefzel
® Lining Material: PFA (ETFE) Construction 5 Sizes 11 Sizes 4 Sizes

SEALED LINED & NON-METALLIC PUMPS

Model 3198 Model 4150 PFA Process ANSI Lined FRP ANSI Process

Virgin PFA TEFLON
® for handling a wide range ofsevere corrosive liquids, trace contaminants, and mixtures.The 3198 features ANSI B73.1 design, X-Series power ends.TEFLON All liquid end parts are constructed with Thermoset FiberglassReinforced Plastic (FRP).The position of the glass reinforcement is engineered to provide maximum strength and corrosion resistance within each FRP part.Sizes with larger flow rates utilize dual volute casings to reduce radial loads.The standard one piece impeller and sleeve eliminates the need for an impeller o-ring.Conforms to ANSI dimensional standards.
® molded in place byhigh pressure technique and mechanically locked. Capacities to 800 GPM (182 m
3 /h) Heads to 450 feet (137 m) Temperatures to 300°F (150°C) Pressures to 225PSIG (1550 kPa) Capacities to 5000 GPM (1130 m
3 /h) Heads to 490 feet (150 m) Temperatures to 212°F (100°C) Material: PFA Teflon
® Pressures to 200 PSIG (1379 kPa) 5 Sizes Material: High Strength, Corrosion-resistant, Glass-reinforced Vinyl Ester 19 Sizes 2 Sizes 7
