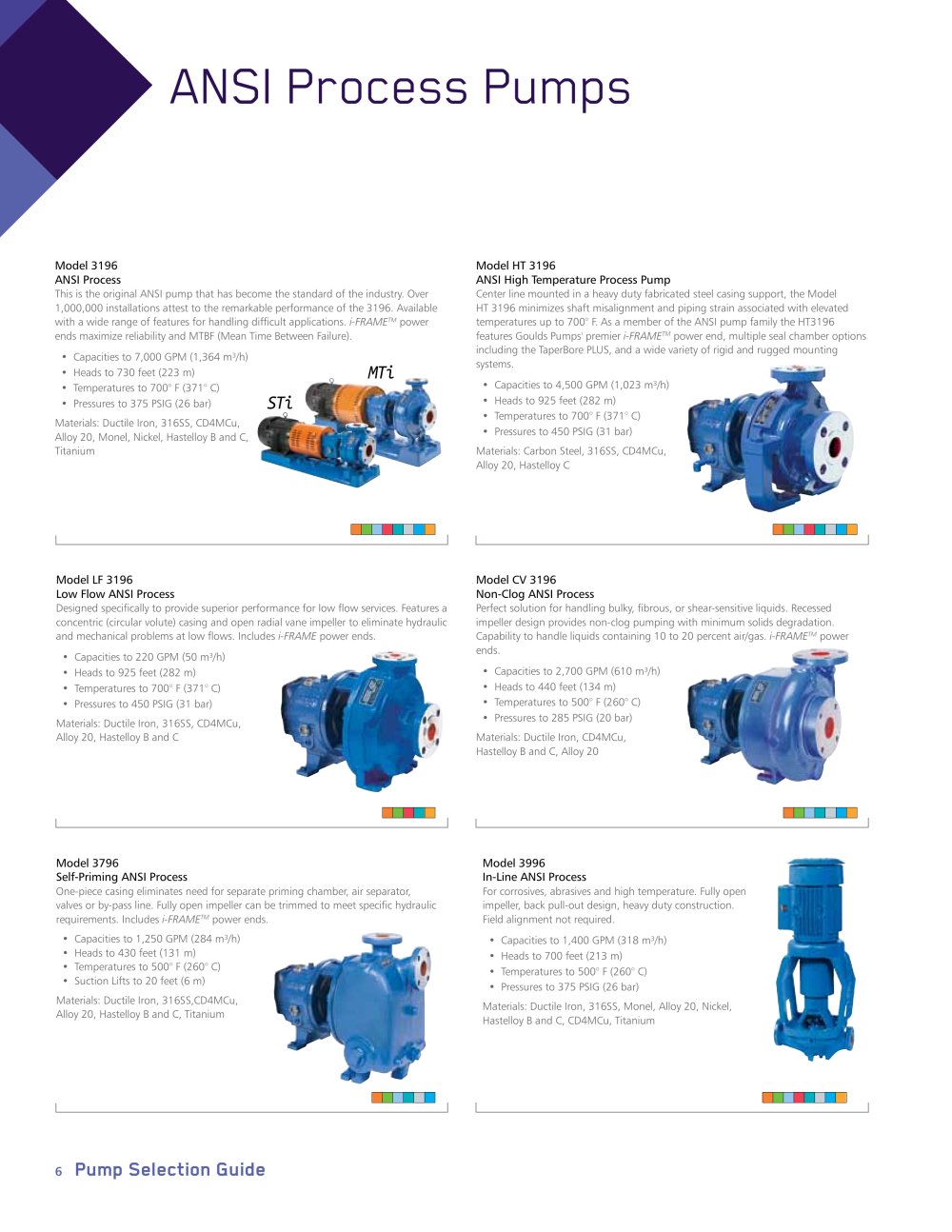

Model 3196Model HT 3196 ANSI Process ANSI High Temperature Process Pump
This is the original ANSI pump that has become the standard of the industry.Over 600,000
installations attest to the remarkable performance of the 3196.Available with a wide range of ANSI Centerline mounted in a heavy duty fabricated steel casing support, the Model HT 3196minimizes shaft misalignment and piping strain associated with elevated temperaturesup to 700°F.This eighth member of the ANSI pump family features Goulds’premier X-Series power end, multiple seal chamber options including the Taper Bore
TM Plus, and a wide variety of rigid and rugged mounting systems. PLUS
TM features for handling difficultapplications. Capacities to 4,500 GPM (1,023 m
3 /h) 28 Sizes X-Series power endsprovide standard features for improved
bearing and
mechanical seal life. Heads to 925 feet (282 m) Temperature to 700°F (372°C) Pressures to 450 PSIG (3,102 kPa) Capacities to 6,000 GPM (1364 m
3 /h) Materials: Carbon Steel, 316SS, CD4MCu, Alloy 20, Hastelloy C Heads to 730 feet (222 m) Temperatures to 500°F (260°C) Pressures to 375 PSIG (2586 kPa)
Model LF 3196
Materials: Ductile Iron, 316SS,CD4MCu, Alloy 20, Monel, Nickel,
Hastelloy B and C, Titanium
Low Flow ANSI Process
Designed specifically to provide superior performance for low flow services.Features a concentric (circular volute) casing and open radial vane impeller
to eliminate hydraulic and mechanical problems at low flows. 29 Sizes
MTXSTX X-Series power ends. Capacities to 220 GPM (50 m
3 /h) Materials: Ductile Iron,316SS, CD4MCu, Alloy
20, Hastelloy B and C Heads to 925 feet (282 m) Temperatures to 700°F (372°C) Pressures to 450 PSIG (3102 kPa) 4 Sizes
Model CV 3196 Non-Clog ANSI Process In-Line ANSI Process
Perfect solution for handling bulky, fibrous, or shear-sensitive liquids.Recessed impeller
design provides non-clog
pumping with
minimum solids degradation.Capability to
handle liquids containing 10 to 20 percent
air/gas. For corrosives,
industrial abrasives, and hightemperature.Fully open impeller,
back pull-out design, heavy duty
construction.Field alignment not
required. Materials: Ductile Iron,CD4MCu, Alloy 20,
Hastelloy B and C X-Series power ends. 7 Sizes Capacities to 1,500 GPM (340 m
3 /h) Capacities to 2,700 GPM (610 m
3 /h) Heads to 700 feet (213 m) Heads to 440 feet (134 m) Temperatures to 500°F (260°C) Temperatures to 500°F (260°C) Pressures to 375 PSIG (2585 kPa) Pressures to 285 PSIG (1965 kPa) Materials: Ductile Iron, 316SS,Alloy 20, Monel, Nickel, Hastelloy B
and C, CD4MCu, Titanium 13 Sizes
Model 3796
Model 3996 Self-Priming ANSI Process
One-piece casing eliminates need for separate priming chamber, air
separator, valves, or by-pass line.Fully open impeller can be trimmed to meet specific hydraulic requirements. X-Series power ends. Capacities to 1,250 GPM (284 m
3 /h) Heads to 430 feet (131 m) Temperatures to 500°F (260°C) Suction Lifts to 25 feet (7.6 m) Materials: Ductile Iron, 316SS, CD4MCu, Alloy 20, Hastelloy B and C, Titanium 8 Sizes 6
