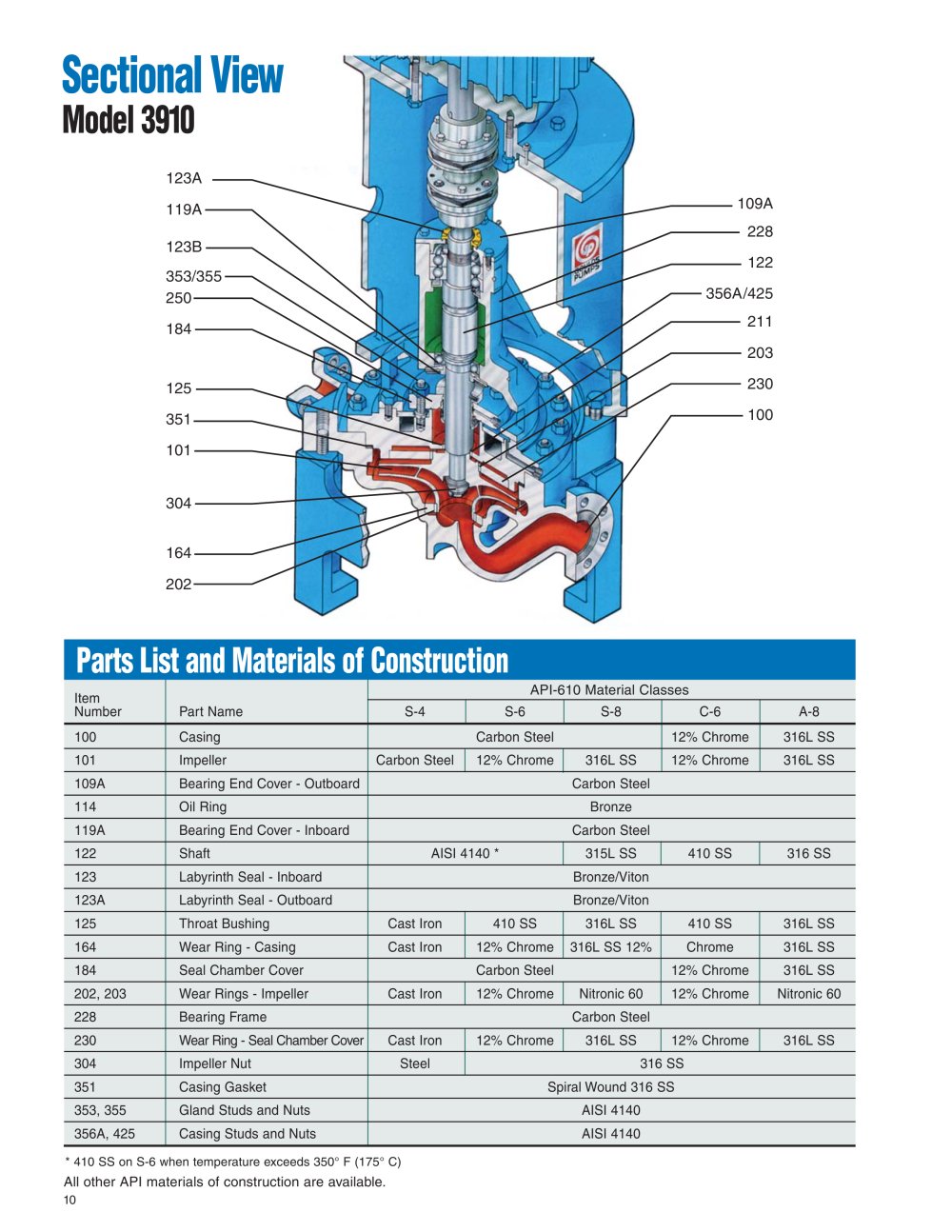

10 Sectional View Model 3910 123A 119A 123B 353/355 250 184 125 351 101 304 164 202 109A 228 122 356A/425 211 203 230 100 API-610 Material Classes Item Number Part Name S-4 S-6 S-8 C-6 A-8 100 Casing Carbon Steel 12% Chrome 316L SS 101 Impeller Carbon Steel 12% Chrome 316L SS 12% Chrome 316L SS 109A Bearing End Cover - Outboard Carbon Steel 114 Oil Ring Bronze 119A Bearing End Cover - Inboard Carbon Steel 122 Shaft AISI 4140 * 315L SS 410 SS 316 SS 123 Labyrinth Seal - Inboard Bronze/Viton 123A Labyrinth Seal - Outboard Bronze/Viton 125 Throat Bushing Cast Iron 410 SS 316L SS 410 SS 316L SS 164 Wear Ring - Casing Cast Iron 12% Chrome 316L SS 12% Chrome 316L SS 184 Seal Chamber Cover Carbon Steel 12% Chrome 316L SS 202, 203 Wear Rings - Impeller Cast Iron 12% Chrome Nitronic 60 12% Chrome Nitronic 60 228 Bearing Frame Carbon Steel 230 Wear Ring - Seal Chamber Cover Cast Iron 12% Chrome 316L SS 12% Chrome 316L SS 304 Impeller Nut Steel 316 SS 351 Casing Gasket Spiral Wound 316 SS 353, 355 Gland Studs and Nuts AISI 4140 356A, 425 Casing Studs and Nuts AISI 4140 All other API materials of construction are available. Parts List and Materials of Construction * 410 SS on S-6 when temperature exceeds 350° F (175° C)
