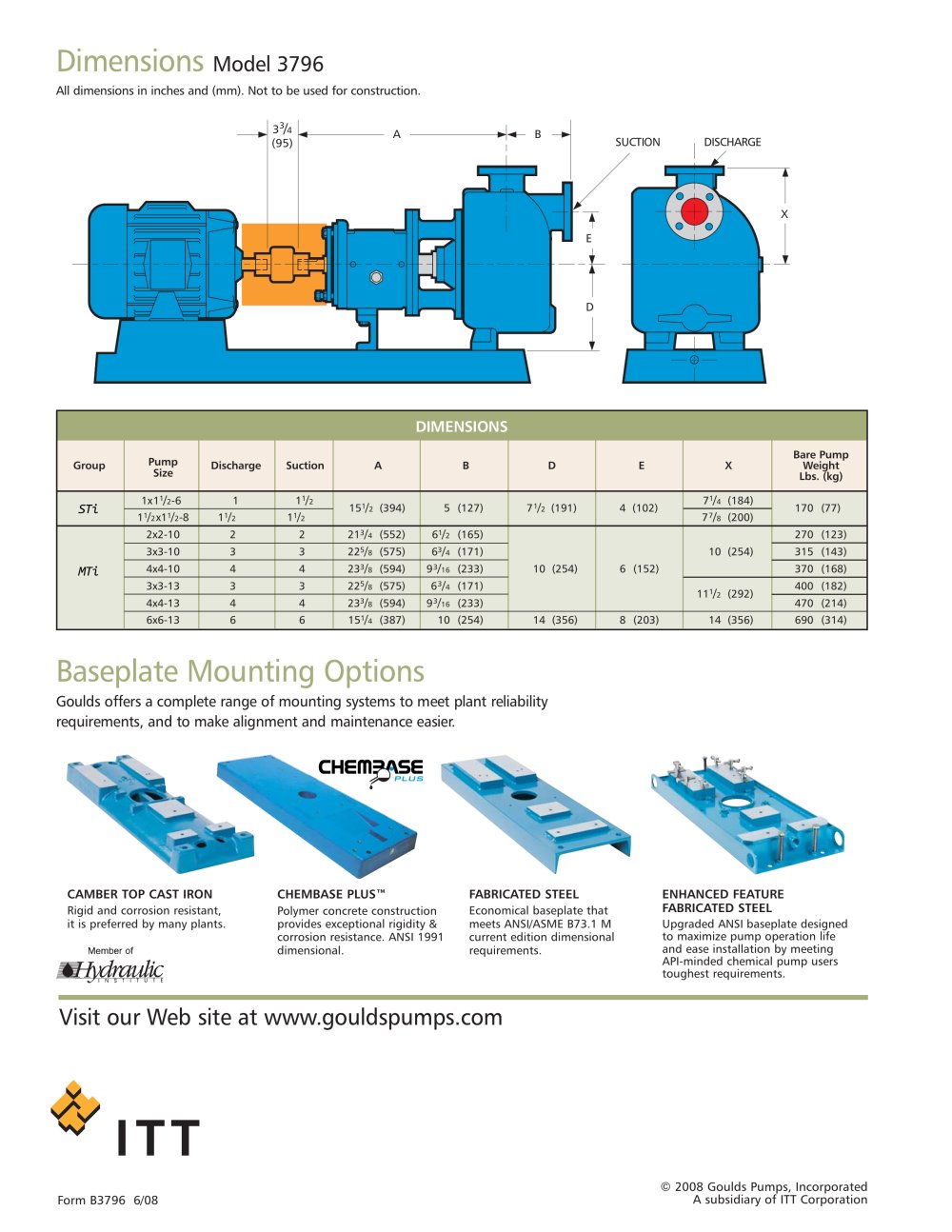

Form B3796 6/08 © 2008 Goulds Pumps, Incorporated A subsidiary of ITT Corporation Visit our Web site at www.gouldspumps.com Dimensions Model 3796 All dimensions in inches and (mm). Not to be used for construction. SUCTION DISCHARGE A B E D X 33/4 (95) Baseplate Mounting Options Goulds offers a complete range of mounting systems to meet plant reliability requirements, and to make alignment and maintenance easier. CAMBER TOP CAST IRON Rigid and corrosion resistant, it is preferred by many plants. CHEMBASE PLUS™ Polymer concrete construction provides exceptional rigidity & corrosion resistance. ANSI 1991 dimensional. FABRICATED STEEL Economical baseplate that meets ANSI/ASME B73.1 M current edition dimensional requirements. ENHANCED FEATURE FABRICATED STEEL Upgraded ANSI baseplate designed to maximize pump operation life and ease installation by meeting API-minded chemical pump users toughest requirements. Bare Pump Group Pump Discharge Suction A B D E X Weight Size Lbs. (kg) 1x11/2-6 1 11/2 151/2 (394) 5 (127) 71/2 (191) 4 (102) 71/4 (184) 170 (77) 11/2x11/2-8 11/2 11/2 77/8 (200) 2x2-10 2 2 213/4 (552) 61/2 (165) 270 (123) 3x3-10 3 3 225/8 (575) 63/4 (171) 10 (254) 315 (143) 4x4-10 4 4 233/8 (594) 93/16 (233) 10 (254) 6 (152) 370 (168) 3x3-13 3 3 225/8 (575) 63/4 (171) 111/2 (292) 400 (182) 4x4-13 4 4 233/8 (594) 93/16 (233) 470 (214) 6x6-13 6 6 151/4 (387) 10 (254) 14 (356) 8 (203) 14 (356) 690 (314) DIMENSIONS
