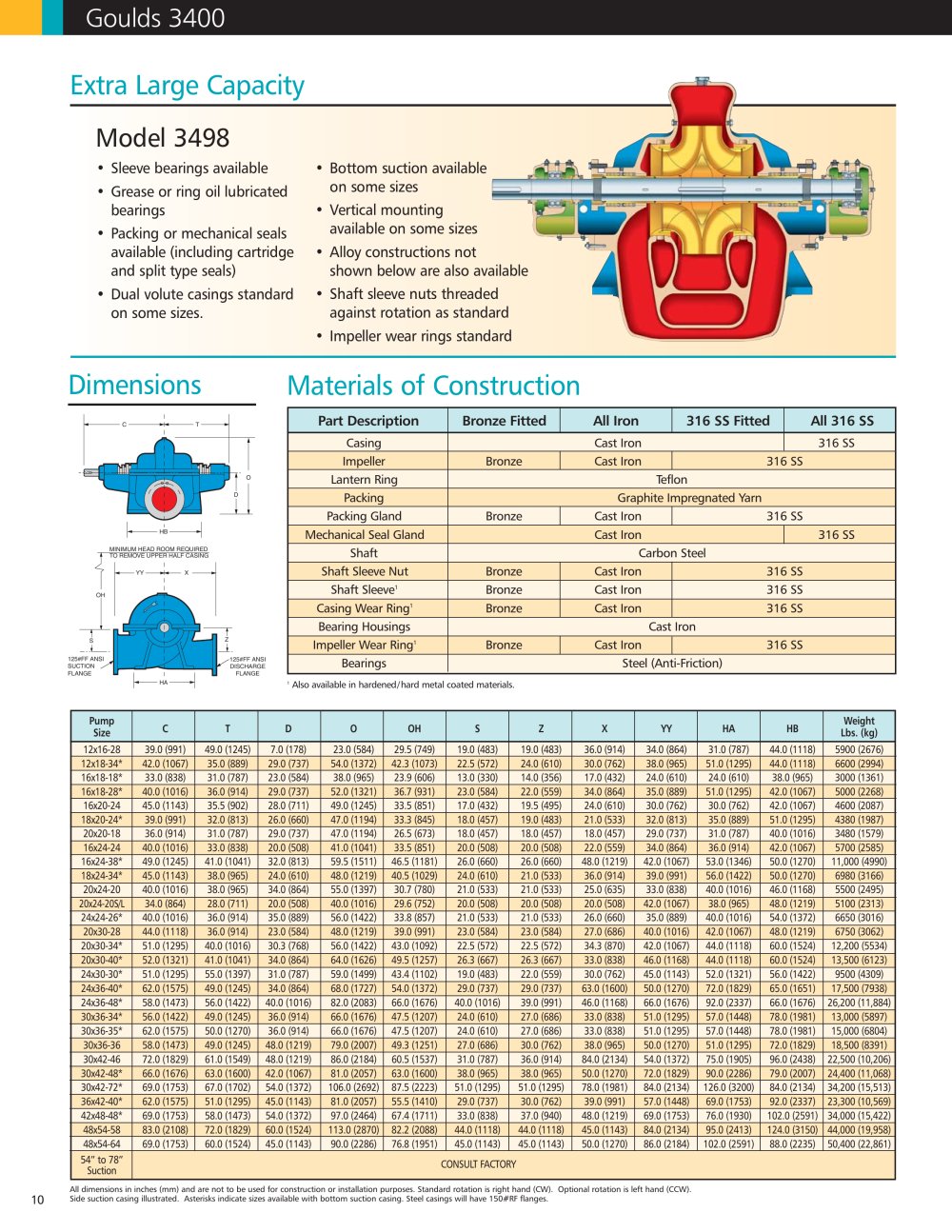

Extra Large Capacity Model 3498 • Sleeve bearings available • Grease or ring oil lubricated bearings • Packing or mechanical seals available (including cartridge and split type seals) • Dual volute casings standard on some sizes. Pump C T D O OH S Z X YY HA HB Weight Size Lbs. (kg) 12x16-28 39.0 (991) 49.0 (1245) 7.0 (178) 23.0 (584) 29.5 (749) 19.0 (483) 19.0 (483) 36.0 (914) 34.0 (864) 31.0 (787) 44.0 (1118) 5900 (2676) 12x18-34* 42.0 (1067) 35.0 (889) 29.0 (737) 54.0 (1372) 42.3 (1073) 22.5 (572) 24.0 (610) 30.0 (762) 38.0 (965) 51.0 (1295) 44.0 (1118) 6600 (2994) 16x18-18* 33.0 (838) 31.0 (787) 23.0 (584) 38.0 (965) 23.9 (606) 13.0 (330) 14.0 (356) 17.0 (432) 24.0 (610) 24.0 (610) 38.0 (965) 3000 (1361) 16x18-28* 40.0 (1016) 36.0 (914) 29.0 (737) 52.0 (1321) 36.7 (931) 23.0 (584) 22.0 (559) 34.0 (864) 35.0 (889) 51.0 (1295) 42.0 (1067) 5000 (2268) 16x20-24 45.0 (1143) 35.5 (902) 28.0 (711) 49.0 (1245) 33.5 (851) 17.0 (432) 19.5 (495) 24.0 (610) 30.0 (762) 30.0 (762) 42.0 (1067) 4600 (2087) 18x20-24* 39.0 (991) 32.0 (813) 26.0 (660) 47.0 (1194) 33.3 (845) 18.0 (457) 19.0 (483) 21.0 (533) 32.0 (813) 35.0 (889) 51.0 (1295) 4380 (1987) 20x20-18 36.0 (914) 31.0 (787) 29.0 (737) 47.0 (1194) 26.5 (673) 18.0 (457) 18.0 (457) 18.0 (457) 29.0 (737) 31.0 (787) 40.0 (1016) 3480 (1579) 16x24-24 40.0 (1016) 33.0 (838) 20.0 (508) 41.0 (1041) 33.5 (851) 20.0 (508) 20.0 (508) 22.0 (559) 34.0 (864) 36.0 (914) 42.0 (1067) 5700 (2585) 16x24-38* 49.0 (1245) 41.0 (1041) 32.0 (813) 59.5 (1511) 46.5 (1181) 26.0 (660) 26.0 (660) 48.0 (1219) 42.0 (1067) 53.0 (1346) 50.0 (1270) 11,000 (4990) 18x24-34* 45.0 (1143) 38.0 (965) 24.0 (610) 48.0 (1219) 40.5 (1029) 24.0 (610) 21.0 (533) 36.0 (914) 39.0 (991) 56.0 (1422) 50.0 (1270) 6980 (3166) 20x24-20 40.0 (1016) 38.0 (965) 34.0 (864) 55.0 (1397) 30.7 (780) 21.0 (533) 21.0 (533) 25.0 (635) 33.0 (838) 40.0 (1016) 46.0 (1168) 5500 (2495) 20x24-20S/L 34.0 (864) 28.0 (711) 20.0 (508) 40.0 (1016) 29.6 (752) 20.0 (508) 20.0 (508) 20.0 (508) 42.0 (1067) 38.0 (965) 48.0 (1219) 5100 (2313) 24x24-26* 40.0 (1016) 36.0 (914) 35.0 (889) 56.0 (1422) 33.8 (857) 21.0 (533) 21.0 (533) 26.0 (660) 35.0 (889) 40.0 (1016) 54.0 (1372) 6650 (3016) 20x30-28 44.0 (1118) 36.0 (914) 23.0 (584) 48.0 (1219) 39.0 (991) 23.0 (584) 23.0 (584) 27.0 (686) 40.0 (1016) 42.0 (1067) 48.0 (1219) 6750 (3062) 20x30-34* 51.0 (1295) 40.0 (1016) 30.3 (768) 56.0 (1422) 43.0 (1092) 22.5 (572) 22.5 (572) 34.3 (870) 42.0 (1067) 44.0 (1118) 60.0 (1524) 12,200 (5534) 20x30-40* 52.0 (1321) 41.0 (1041) 34.0 (864) 64.0 (1626) 49.5 (1257) 26.3 (667) 26.3 (667) 33.0 (838) 46.0 (1168) 44.0 (1118) 60.0 (1524) 13,500 (6123) 24x30-30* 51.0 (1295) 55.0 (1397) 31.0 (787) 59.0 (1499) 43.4 (1102) 19.0 (483) 22.0 (559) 30.0 (762) 45.0 (1143) 52.0 (1321) 56.0 (1422) 9500 (4309) 24x36-40* 62.0 (1575) 49.0 (1245) 34.0 (864) 68.0 (1727) 54.0 (1372) 29.0 (737) 29.0 (737) 63.0 (1600) 50.0 (1270) 72.0 (1829) 65.0 (1651) 17,500 (7938) 24x36-48* 58.0 (1473) 56.0 (1422) 40.0 (1016) 82.0 (2083) 66.0 (1676) 40.0 (1016) 39.0 (991) 46.0 (1168) 66.0 (1676) 92.0 (2337) 66.0 (1676) 26,200 (11,884) 30x36-34* 56.0 (1422) 49.0 (1245) 36.0 (914) 66.0 (1676) 47.5 (1207) 24.0 (610) 27.0 (686) 33.0 (838) 51.0 (1295) 57.0 (1448) 78.0 (1981) 13,000 (5897) 30x36-35* 62.0 (1575) 50.0 (1270) 36.0 (914) 66.0 (1676) 47.5 (1207) 24.0 (610) 27.0 (686) 33.0 (838) 51.0 (1295) 57.0 (1448) 78.0 (1981) 15,000 (6804) 30x36-36 58.0 (1473) 49.0 (1245) 48.0 (1219) 79.0 (2007) 49.3 (1251) 27.0 (686) 30.0 (762) 38.0 (965) 50.0 (1270) 51.0 (1295) 72.0 (1829) 18,500 (8391) 30x42-46 72.0 (1829) 61.0 (1549) 48.0 (1219) 86.0 (2184) 60.5 (1537) 31.0 (787) 36.0 (914) 84.0 (2134) 54.0 (1372) 75.0 (1905) 96.0 (2438) 22,500 (10,206) 30x42-48* 66.0 (1676) 63.0 (1600) 42.0 (1067) 81.0 (2057) 63.0 (1600) 38.0 (965) 38.0 (965) 50.0 (1270) 72.0 (1829) 90.0 (2286) 79.0 (2007) 24,400 (11,068) 30x42-72* 69.0 (1753) 67.0 (1702) 54.0 (1372) 106.0 (2692) 87.5 (2223) 51.0 (1295) 51.0 (1295) 78.0 (1981) 84.0 (2134) 126.0 (3200) 84.0 (2134) 34,200 (15,513) 36x42-40* 62.0 (1575) 51.0 (1295) 45.0 (1143) 81.0 (2057) 55.5 (1410) 29.0 (737) 30.0 (762) 39.0 (991) 57.0 (1448) 69.0 (1753) 92.0 (2337) 23,300 (10,569) 42x48-48* 69.0 (1753) 58.0 (1473) 54.0 (1372) 97.0 (2464) 67.4 (1711) 33.0 (838) 37.0 (940) 48.0 (1219) 69.0 (1753) 76.0 (1930) 102.0 (2591) 34,000 (15,422) 48x54-58 83.0 (2108) 72.0 (1829) 60.0 (1524) 113.0 (2870) 82.2 (2088) 44.0 (1118) 44.0 (1118) 45.0 (1143) 84.0 (2134) 95.0 (2413) 124.0 (3150) 44,000 (19,958) 48x54-64 69.0 (1753) 60.0 (1524) 45.0 (1143) 90.0 (2286) 76.8 (1951) 45.0 (1143) 45.0 (1143) 50.0 (1270) 86.0 (2184) 102.0 (2591) 88.0 (2235) 50,400 (22,861) 54” to 78” Suction CONSULT FACTORY All dimensions in inches (mm) and are not to be used for construction or installation purposes. Standard rotation is right hand (CW). Optional rotation is left hand (CCW). Side suction casing illustrated. Asterisks indicate sizes available with bottom suction casing. Steel casings will have 150#RF flanges. Dimensions Materials of Construction YY X OH S HA HB Z 125#FF ANSI SUCTION FLANGE 125#FF ANSI DISCHARGE FLANGE C T O D MINIMUM HEAD ROOM REQUIRED TO REMOVE UPPER HALF CASING Goulds 3400 10 • Bottom suction available on some sizes • Vertical mounting available on some sizes • Alloy constructions not shown below are also available • Shaft sleeve nuts threaded against rotation as standard • Impeller wear rings standard Part Description Bronze Fitted All Iron 316 SS Fitted All 316 SS Casing Cast Iron 316 SS Impeller Bronze Cast Iron 316 SS Lantern Ring Teflon Packing Graphite Impregnated Yarn Packing Gland Bronze Cast Iron 316 SS Mechanical Seal Gland Cast Iron 316 SS Shaft Carbon Steel Shaft Sleeve Nut Bronze Cast Iron 316 SS Shaft Sleeve1 Bronze Cast Iron 316 SS Casing Wear Ring1 Bronze Cast Iron 316 SS Bearing Housings Cast Iron Impeller Wear Ring1 Bronze Cast Iron 316 SS Bearings Steel (Anti-Friction) 1 Also available in hardened/hard metal coated materials.
