Goulds 3298 Chemical Process Pumps - Goulds Pumps - #2

Text version of the page

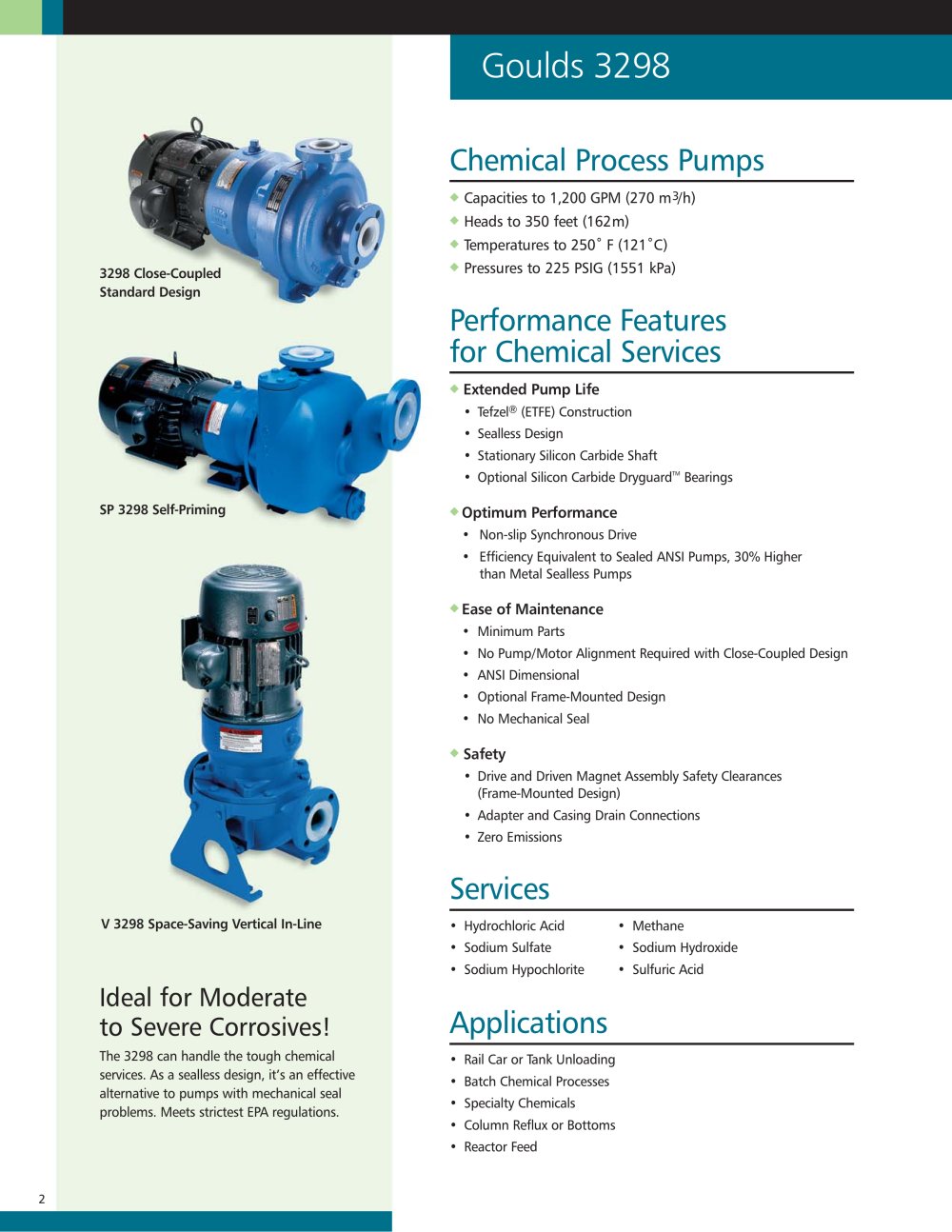

Goulds 3298 2 Ideal for Moderate to Severe Corrosives! The 3298 can handle the tough chemical services. As a sealless design, it’s an effective alternative to pumps with mechanical seal problems. Meets strictest EPA regulations. V 3298 Space-Saving Vertical In-Line SP 3298 Self-Priming 3298 Close-Coupled Standard Design Chemical Process Pumps  Capacities to 1,200 GPM (270 m3/h)  Heads to 350 feet (162m)  Temperatures to 250° F (121°C)  Pressures to 225 PSIG (1551 kPa) Performance Features for Chemical Services  Extended Pump Life • Tefzel® (ETFE) Construction • Sealless Design • Stationary Silicon Carbide Shaft • Optional Silicon Carbide DryguardTM Bearings  Optimum Performance • Non-slip Synchronous Drive • Efficiency Equivalent to Sealed ANSI Pumps, 30% Higher than Metal Sealless Pumps  Ease of Maintenance • Minimum Parts • No Pump/Motor Alignment Required with Close-Coupled Design • ANSI Dimensional • Optional Frame-Mounted Design • No Mechanical Seal  Safety • Drive and Driven Magnet Assembly Safety Clearances (Frame-Mounted Design) • Adapter and Casing Drain Connections • Zero Emissions Services • Hydrochloric Acid • Methane • Sodium Sulfate • Sodium Hydroxide • Sodium Hypochlorite • Sulfuric Acid Applications • Rail Car or Tank Unloading • Batch Chemical Processes • Specialty Chemicals • Column Reflux or Bottoms • Reactor Feed
