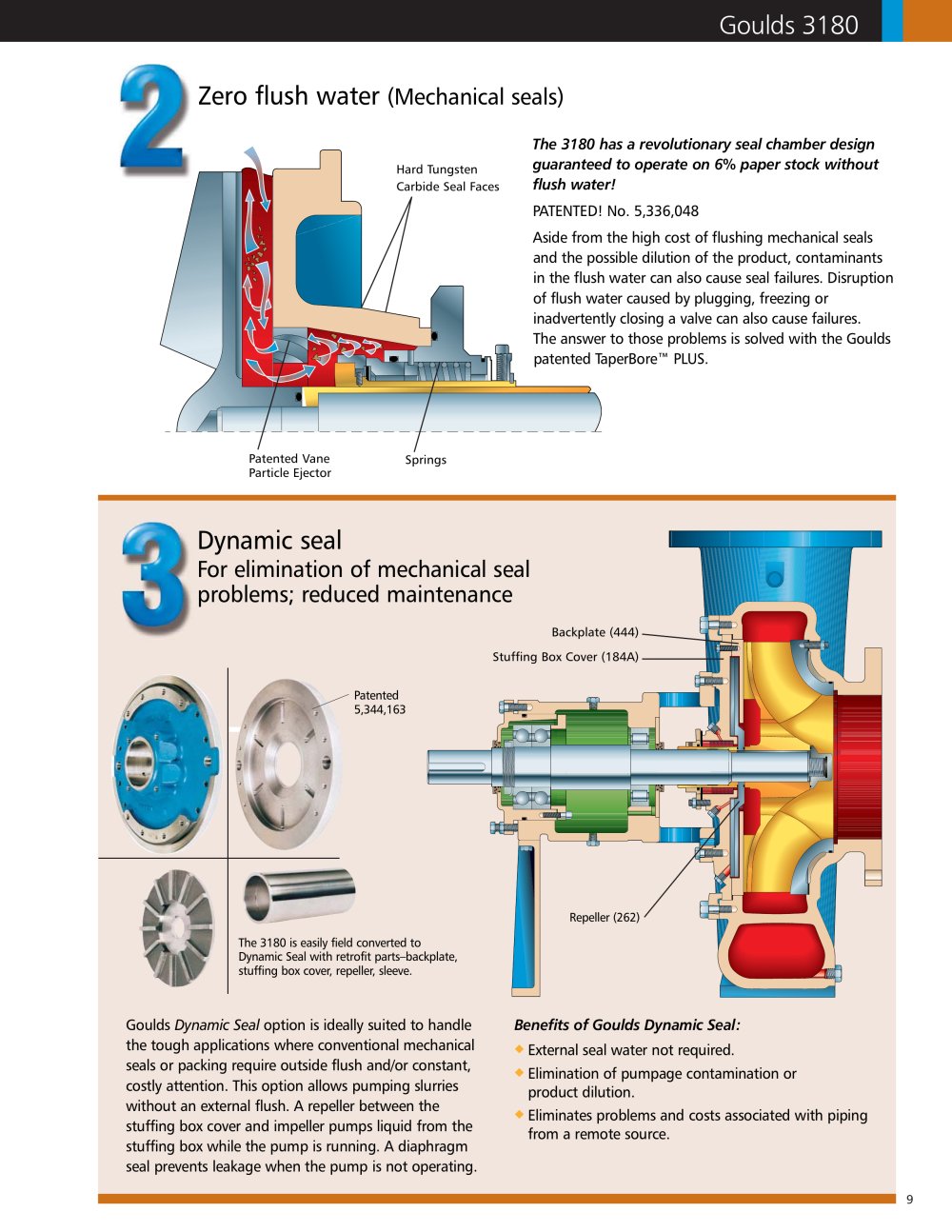

Goulds 3180 9 Goulds Dynamic Seal option is ideally suited to handle the tough applications where conventional mechanical seals or packing require outside flush and/or constant, costly attention. This option allows pumping slurries without an external flush. A repeller between the stuffing box cover and impeller pumps liquid from the stuffing box while the pump is running. A diaphragm seal prevents leakage when the pump is not operating. Benefits of Goulds Dynamic Seal:  External seal water not required.  Elimination of pumpage contamination or product dilution.  Eliminates problems and costs associated with piping from a remote source. Zero flush water (Mechanical seals) Backplate (444) Stuffing Box Cover (184A) Repeller (262) Dynamic seal For elimination of mechanical seal problems; reduced maintenance The 3180 is easily field converted to Dynamic Seal with retrofit parts–backplate, stuffing box cover, repeller, sleeve. Patented 5,344,163 Patented Vane Springs Particle Ejector The 3180 has a revolutionary seal chamber design guaranteed to operate on 6% paper stock without flush water! PATENTED! No. 5,336,048 Aside from the high cost of flushing mechanical seals and the possible dilution of the product, contaminants in the flush water can also cause seal failures. Disruption of flush water caused by plugging, freezing or inadvertently closing a valve can also cause failures. The answer to those problems is solved with the Goulds patented TaperBore™ PLUS. Hard Tungsten Carbide Seal Faces
