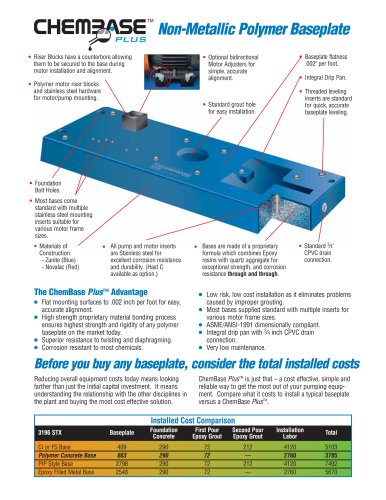

ChemBase PLUS™ Polymer Concrete Baseplate - 2 / 4 Pages

Before you buy any baseplate, consider the total installed costs
The ChemBase PlusTM Advantage
• Flat mounting surfaces to .002 inch per foot for easy,
accurate alignment.
• High strength proprietary material bonding process
ensures highest strength and rigidity of any polymer
baseplate on the market today.
• Superior resistance to twisting and diaphragming.
• Corrosion resistant to most chemicals.
• Low risk, low cost installation as it eliminates problems
caused by improper grouting.
• Most bases supplied standard with multiple inserts for
various motor frame sizes.
• ASME/ANSI-1991 dimensionally compliant.
• Integral drip pan with 34 inch CPVC drain
connection.
• Very low maintenance.
• Optional bidirectional
Motor Adjusters for
simple, accurate
alignment.
• Standard grout hole
for easy installation.
• Foundation
Bolt Holes.
• Most bases come
standard with multiple
stainless steel mounting
inserts suitable for
various motor frame
sizes.
• Baseplate flatness
.002" per foot.
• Integral Drip Pan.
• Threaded leveling
inserts are standard
for quick, accurate
baseplate leveling.
• Standard 34"
CPVC drain
connection.
• Materials of
Construction:
- Zanite (Blue)
- Novalac (Red)
• Bases are made of a proprietary
formula which combines Epoxy
resins with quartz aggregate for
exceptional strength, and corrosion
resistance through and through.
• All pump and motor inserts
are Stainless steel for
excellent corrosion resistance
and durability. (Hast C
available as option.)
Reducing overall equipment costs today means looking
farther than just the initial capital investment. It means
understanding the relationship with the other disciplines in
the plant and buying the most cost effective solution.
ChemBase PlusTM is just that – a cost effective, simple and
reliable way to get the most out of your pumping equipment.
Compare what it costs to install a typical baseplate
versus a ChemBase PlusTM.
Non-Metallic Polymer Baseplate TM
• Riser Blocks have a counterbore allowing
them to be secured to the base during
motor installation and alignment.
• Polymer motor riser blocks
and stainless steel hardware
for motor/pump mounting.
Installed Cost Comparison
3196 STX Baseplate Foundation First Pour Second Pour Installation Concrete Epoxy Grout Epoxy Grout Labor Total
CI or FS Base 409 290 72 212 4120 5103
Polymer Concrete Base 663 290 72 --- 2760 3785
PIP Style Base 2798 290 72 212 4120 7492
Epoxy Filled Metal Base 2548 290 72 --- 2760 5670

ChemBase PLUS™ Polymer Concrete Baseplate
  1. P. 1

    Polymer Concrete Baseplate TM
  2. P. 2

  3. P. 3

    Goulds ChemBase PlusTM - The Logical Alternative!Most chemical pumps today run on corrosive services orin highly corrosive environments. When consideringthe...
  4. P. 4

    For more information, call your nearest Goulds sales office or representative,or visit our website at www.gouldspumps.com.Optional ConfigurationsForm No....
