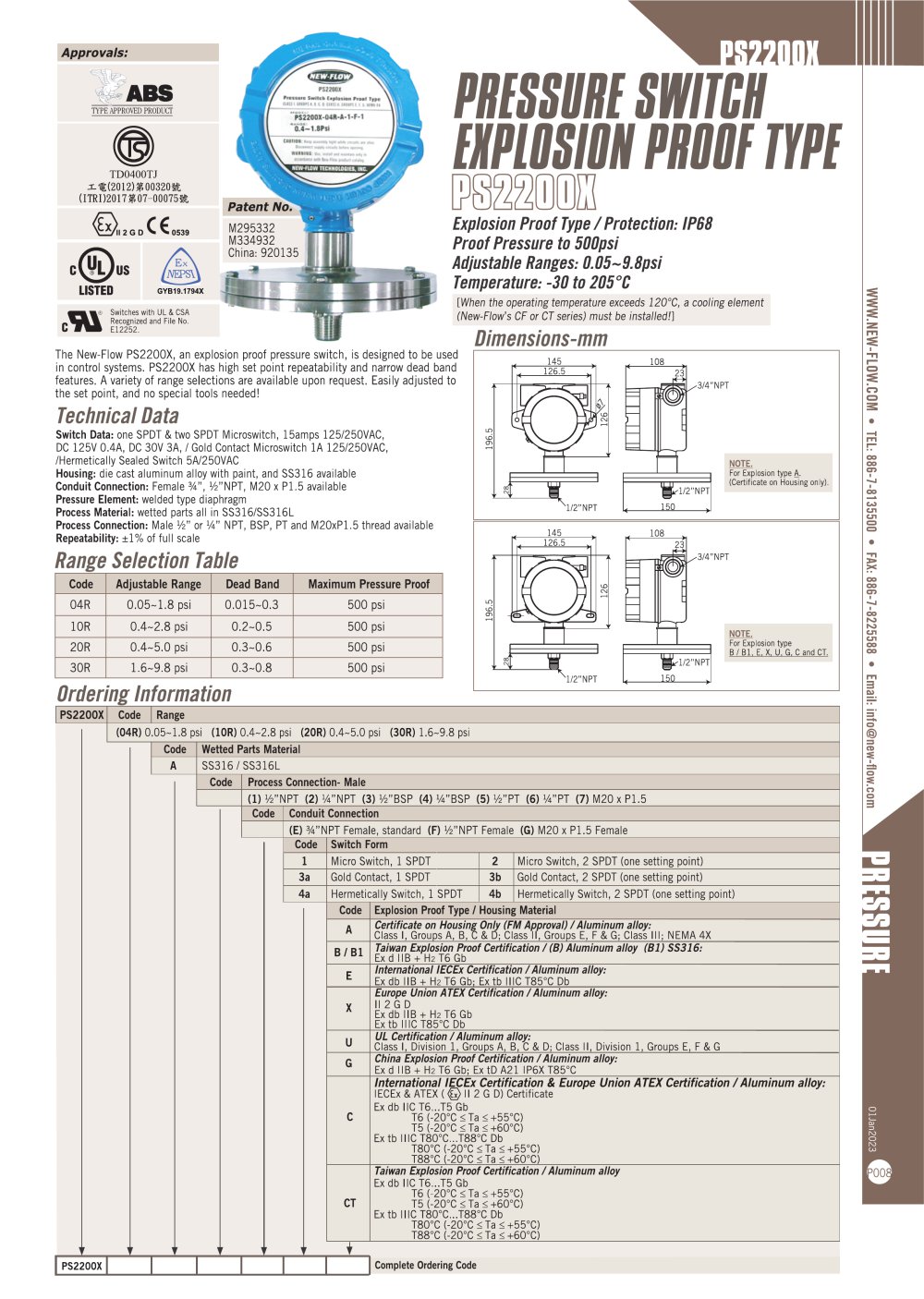

PS2200X(Pressure Switch) - 33181 PRESSURE SWITCH EXPLOSION PROOF TYPE PS2200XPS2200X

CLASS I, GROUPS A, B, C, D;CLASS II, GROUPS E, F, G; NEMA 4X Proof Pressure to 1000psi Adjustable Ranges: 0.4~9.8psi Temperature: -25 to 205°C

The New-Flow PS2200X, an explosion proof pressure switch, is designed to be used in control systems. PS2200X has high set point repeatability and narrow dead band features. A variety of range selections are available upon request. Easily adjusted to the set point, no special tools needed!

Dimension

Housing: die cast aluminum alloy with paint
145 108 23

Technical Data

126.5 Electronic Connection: ¾Ë� or ½Ë� NPT Female
3/4"NPT 150 Pressure Element: Switch Data: one SPDT & two SPDT Microswitch, 15amps 125/250V, Gold Contact Microswitch 1A 125/250VAC, Hermetically sealed switch 3A res. 1A ind. 28V/DC, 1A res. ind. 115V/AC welded type diaphragm
Ø7 Process Materials : wetted parts are all in 316SS
126 Process Connection: ½Ë� or ¼Ë� NPT Female
196.5 28 1/2"NPT 1/2"NPT unit=mm

Range Selection Table

CodeAdjustable RangeDead BandMaximum Pressure Proof 04R0.4~1.8 psi0.2~0.41000psi 10R0.4~2.8 psi0.2~0.51000psi 20R0.4~5.0 psi0.3~0.61000psi 30R1.6~9.8 psi0.3~0.81000psi PLEASE NOTE Performance specifications are effective with date of issue and are subject to change without prior notice.

GOLDEN MOUNTAIN ENTERPRISE CO., LTD.

PS2200X-1 08022006
