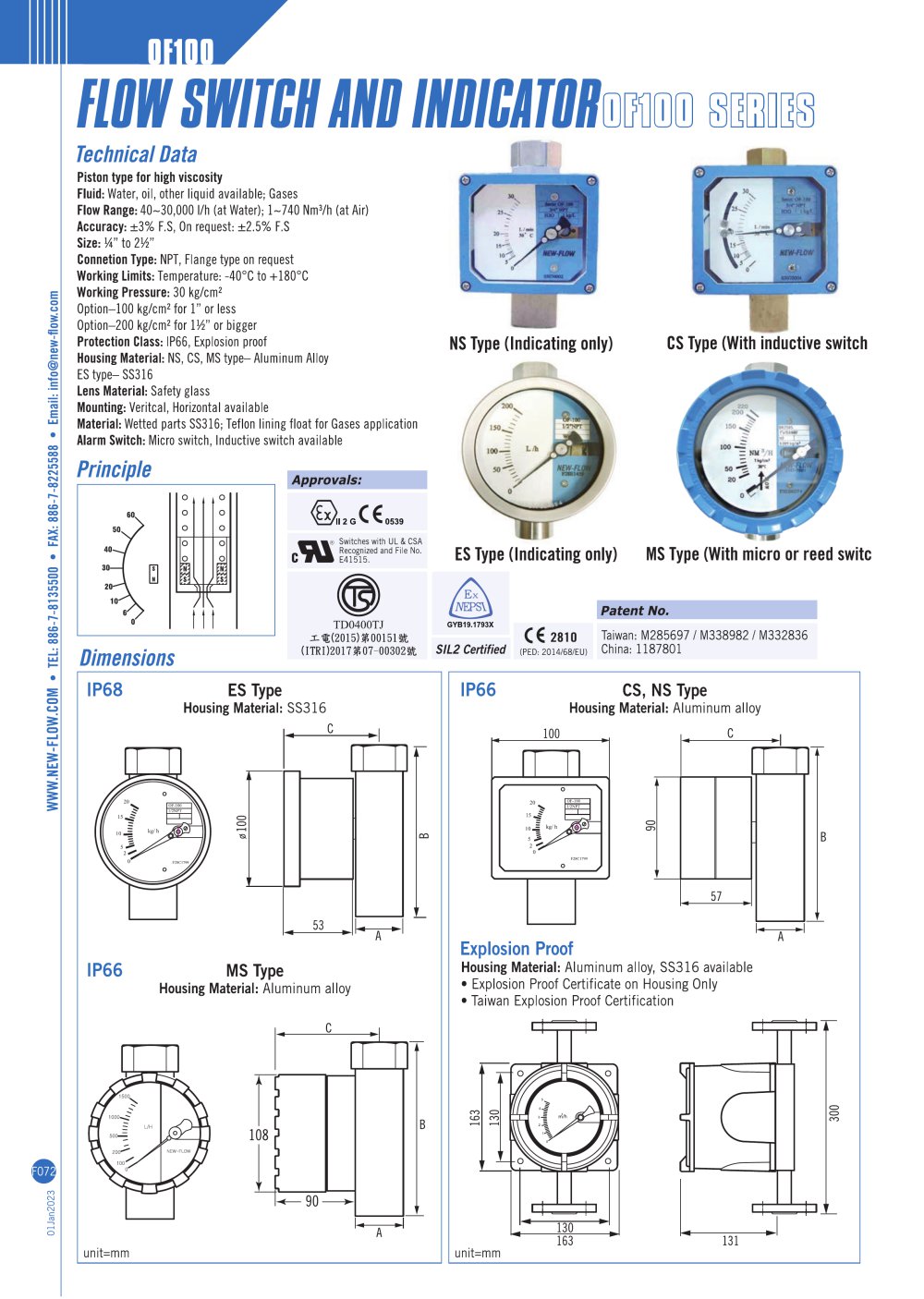

OF-100(Piston flow mter) - 33181 FLOW SWITCH AND INDICATOR OF100 SERIES OF100 SERIES

Piston typeFluid : Water , oil , other liquid available Flow range : 15 ~ 24000 l/h (at Water) Accuracy : ± 3 % F.S , On request : ± 2.5 % F.S Size : ¼ ” to 2 ½” Connection Size : NPT , Flange Type on Request Working Limits : Lens material: Safety glass Temperature : -10ºC to +150ºC Max. Pressure : Mounting : Vertical , horizontal available 30 Kg/cm² Housing enclosure : NS, CS, MS types– Aluminum Alloy ES type– 316SS Materials : Brass , 316SS wetted parts IP 65 Housing material: Alarm switch : Micro switch ,inductive switch available.

NS Type (Indicating only)

Principle

CS Type (With inductive switch)

Flow Direction Type

ES Type (Indicating only)

LH HLRLLR

MS Type (With micro switch)
