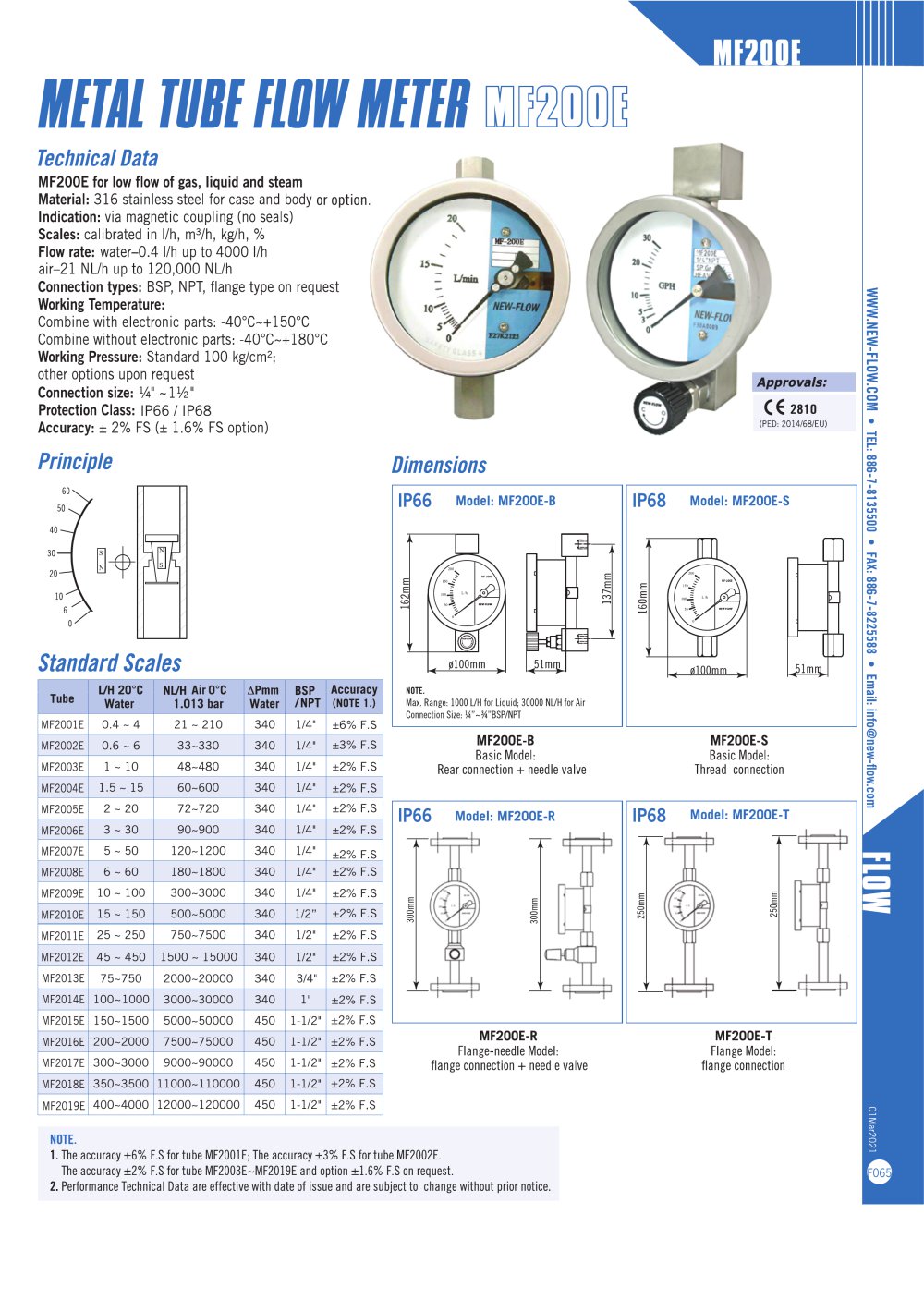

MF200E(Metal tube flow meter) - 33181 METAL TUBE FLOWMETER MF200EMF200E

Principle

6040 50 3020 S N NS 100 6

Technical Data

MF200E for low flows of gases , liquid and steam Material : 316 stainless steel for case (body in stainless steel.) Indication: via magnetic coupling (no seals) Scales: Working Pressure : calibrated in l/h ,m³ /h ,kg/h , % Standard 100 kg/cm² Flow rate: Connection size : ¼ water–0.4 l/h up to 3500 l/h, Air–21 NL/h up to 110000 NL/h " ~ 1½" Connection types : Combine with electronic parts: -40°C~+150°C Combine without electronic parts: -40°C~+180°C Housing protection : BSP , NPT , flange type on request IP65 Working Temperature: Accuracy : ± 2% FS (± 1.6% FS option) GOLDEN MOUNTAIN ENTERPRISE CO., LTD.
MF200E-1 07242006
